EPC-ASL

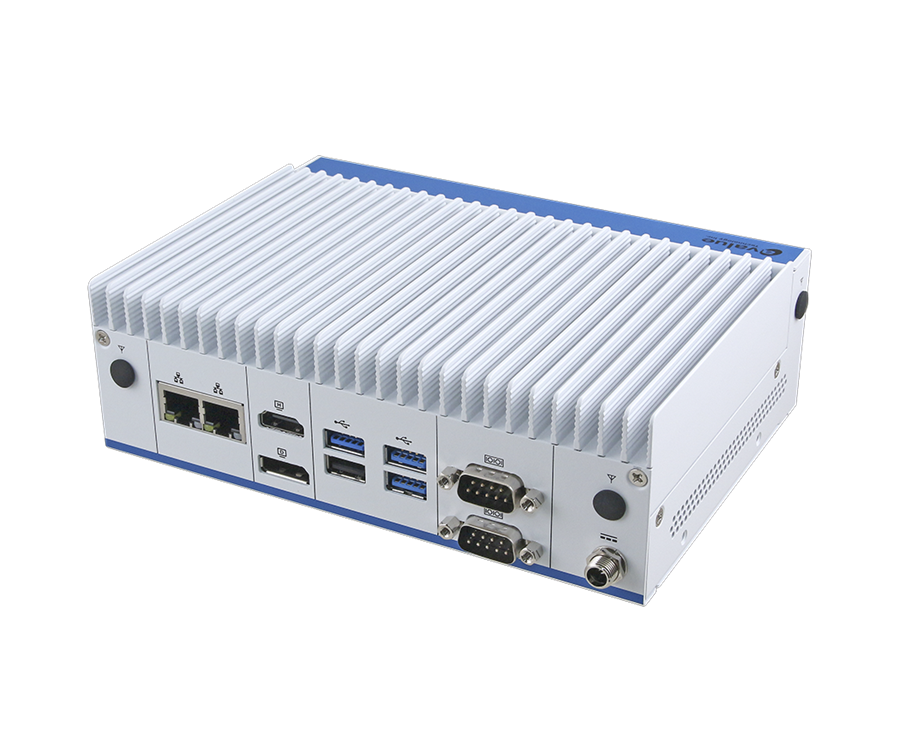

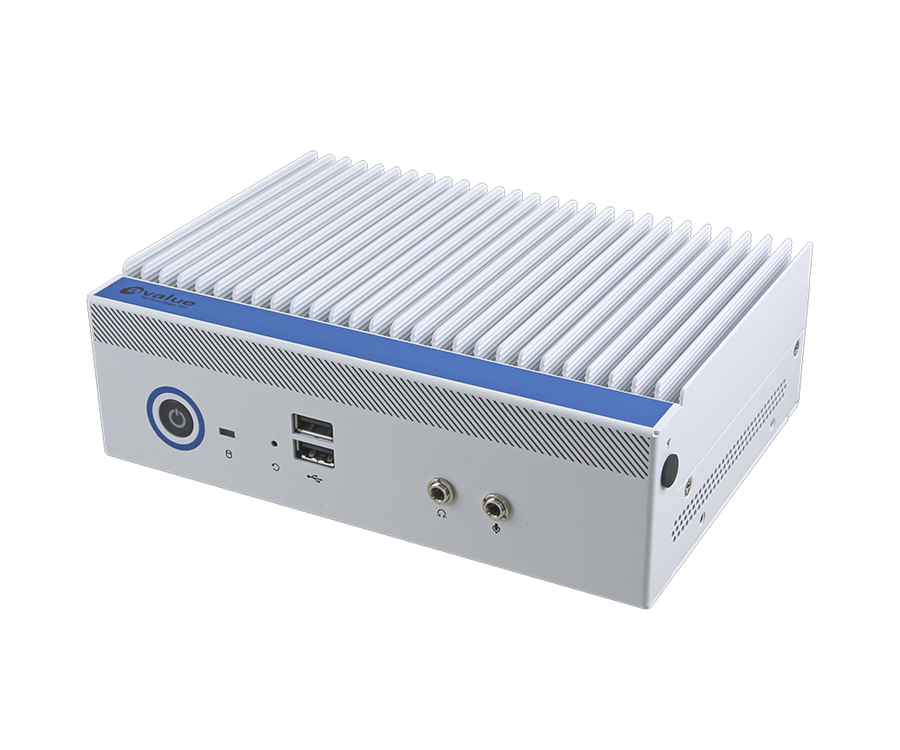

Intel® Processor N97 Fanless Compact System

INTRODUCTION

DATASHEET

GET A QUOTE

Intel® Processor N97 low power-consuming processor support

1-DDR5 4800MHz SO-DIMM socket for data-intensive applications

dTPM2.0 supported for data access control

Dual expansion slot M.2, Key-E/B for Wi-Fi, LTE, SSD, I/O module

Rich I/O, 6-USB, 1-HDMI, 1-DP, 2-LAN (2.5GbE), 2-RS232

Flexible I/Omodule customization available

Fanless operating temperature, 0 ~ 50°C

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Fanless & Compact Design – silent, low-maintenance operation with a space-saving enclosure, ideal for medical and edge environments

Efficient Performance – powered by Intel® Alder Lake-N97 with DDR5 support (up to 16 GB), delivering responsive multitasking at low power

Flexible Connectivity & Expansion – rich I/O (USB, RS-232, HDMI, DP, dual 2.5GbE LAN, audio) plus dual M.2 slots for Wi-Fi 6E, LTE/5G, or SSD

Secure & Deployment-Ready – built-in TPM 2.0, wide-range DC input, and wall-mount support ensure safe, adaptable, and easy installation

Device Applications

Real-Time Clinical Data Gateway – operates quietly in medical environments while processing and forwarding diverse clinical data and imaging in real time

Medical Device Integration Hub – serves as a front-end station for ultrasound, ECG, cameras, or other peripherals, centralizing medical data collection and transfer

IoT Edge Gateway – with Wi-Fi/5G support and expansion options, it works as a stable edge node in smart manufacturing, transportation, or healthcare networks

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® Processor N97 (6M Cache, up to 3.60 GHz)

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, Max. up to 16GB

TPM

On Board TPM 2.0

OS Support

Win10, Win11, Linux

Expansion

M.2

1 x M.2 Key-B (3042/3052/2242 (PCIe x1, USB 3.2 GEN1, USB 2.0)
1 x M.2 Key-E (2230, 1 x PCI-e x1, USB 2.0 Signal)

Storage

M.2

1 x M.2 (Key-B, 2242, PCIe x 1)

Storage

1 x 2.5 Drive Bay (SATA3, 7mm)

Display

Graphic Chipset

Intel® UHD Graphics

Spec. & Resolution

1 x HDMI 2.0b Max resolution 4096 x 2160 @ 60Hz
1 x DP 1.4a Max resolution 4096 x 2160 @ 60Hz

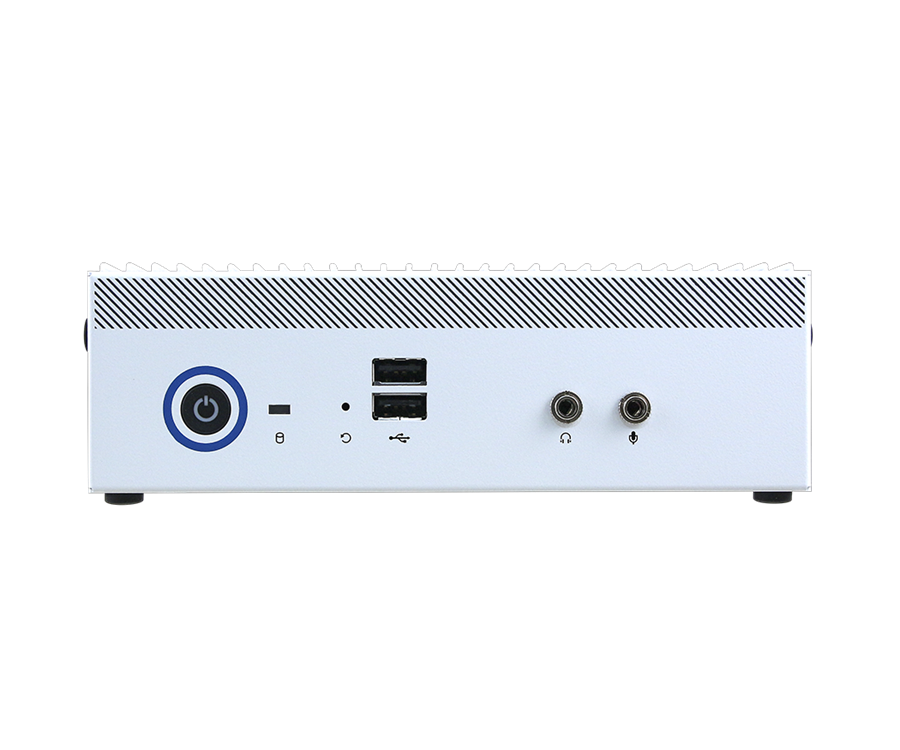

Front I/O

Power Button

1 x Power Button

Reset Button

1 x Reset Button

USB Port

2 x USB2.0

LED Indicator

1 x Power on/off LED
1 x Storage Access LED

Audio

1 x Mic-in
1 x Line-out

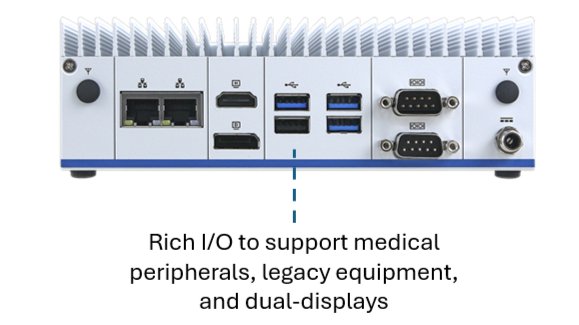

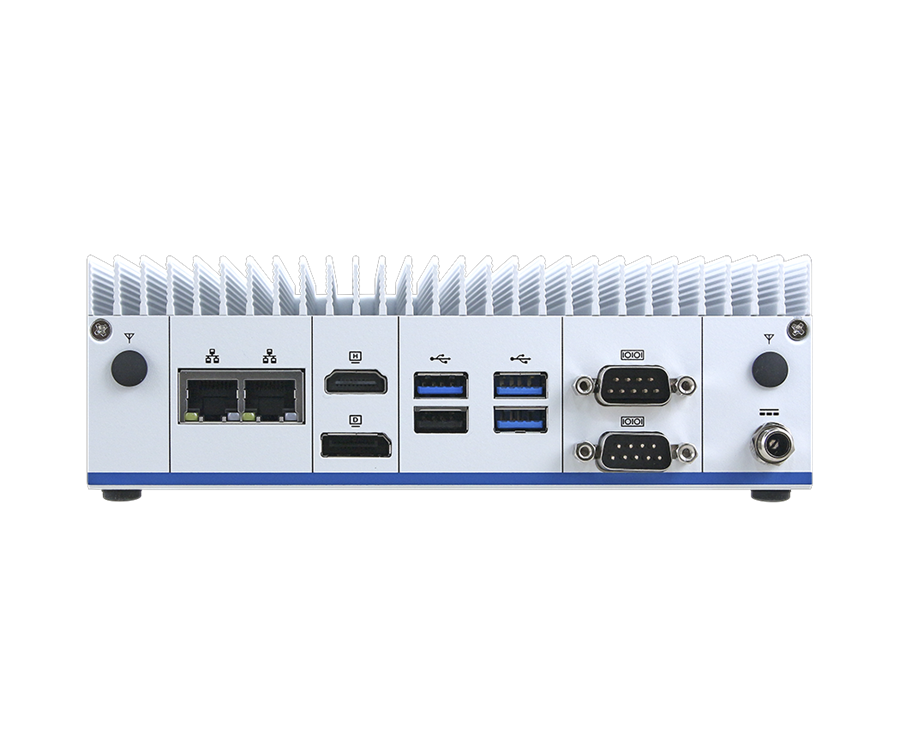

Rear I/O

USB Port

3 x USB 3.2 Gen 2
1 x USB 2.0

COM Port

2 x RS-232

LAN Port

2 x RJ-45 (2.5GbE)

HDMI

1 x HDMI 2.0b

1 x DP 1.4a

Antenna

2 x Antenna Mounting with Dust Protection Cover

Power Input

1 x Lockable DC Jack

Audio

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Ethernet

LAN Chipset

2 x Intel Ethernet Controller I226V

Power Requirement

Power Input

Typical +12V/24V

Adapter

60W AC to DC Adapter (Default)/ 120W AC to DC Adapter (Option)
* 120W adapter is for full load mode operation. Contact for more information.

Certification

Certification Information

CE, FCC Class B, UKCA

Mechanical & Environmental

Dimension (mm)

177 x 127 x 57

Operating Temp.

With extended temperature peripherals: 0°C ~ 50°C
(32°F ~ 122°F) with 0.5m/s air flow

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-30 ~ 70C° (-22°F ~ 158°F)

Drop Test

ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges,
6 Faces

Vibration Test

With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz,
30min/Axis, 3 Axis

Shock Test

With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis

Mounting Kit

Wall mount kit

Manual

No.

Title

Description

Operating System

Release Date

Download

EPC-EHL-B1 1st Quick Reference Guide

2023.11.01
