CCD-10WR2

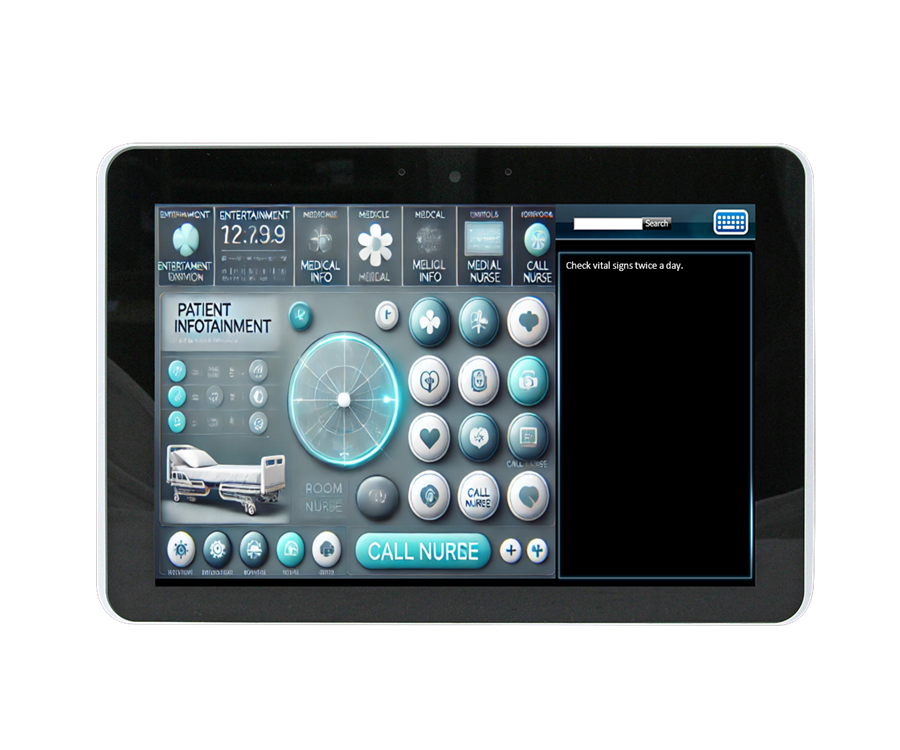

Economical arm-based 10.1" panel PC with white casing for general clinical purpose.

INTRODUCTION

GET A QUOTE

Rockchip RK3568 Quad-core Cortex-A55 2.0GHz

Built-in front camera with microphone for quick communication & remote consultation

HDMI 2.0 video output for high-resolution display

+12V ~+24V DC input for diversified clinical scenarios

Android 11/ Debian 11 OS support

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

HDMI 2.0 Output – provides high-resolution video for crisp, detailed visuals on external displays

Built-in Front Camera with Microphone – enables remote consultations between patients and healthcare professionals

Wide Voltage Input – supports +12V to +24V DC power input, ensuring compatibility with diverse power environments

Slim, ARM-Based 10'' Panel – Its slim, compact design with an ARM processor enables it to deliver efficient, reliable performance with low power consumption and can be seamlessly mounted in any healthcare setting

Device Applications

Enhanced Visual Applications – having a HDMI 2.0 output enables patient dashboard and clinical data visualization through seamless external monitor connectivity

Flexible Clinical Deployment – can offer a reliable operation across varied clinical scenarios from patient rooms to corridor displays as it is slim and compact

Hospital Workflow Applications – Android 11/ Debian 11 OS support enables deployment of healthcare apps providing a versatile platform that adapts to evolving hospital workflows

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

2GB LPDDR4

Graphic Chipset

Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

OS Support

Android 11 / Debain 11

Storage

32GB eMMC

Display

LCD Size

10.1"

Resolution

1280 x 800

Luminance

350 cd/m²

Contrast Ratio

800 : 1

Viewing Angle

170°/ 170°

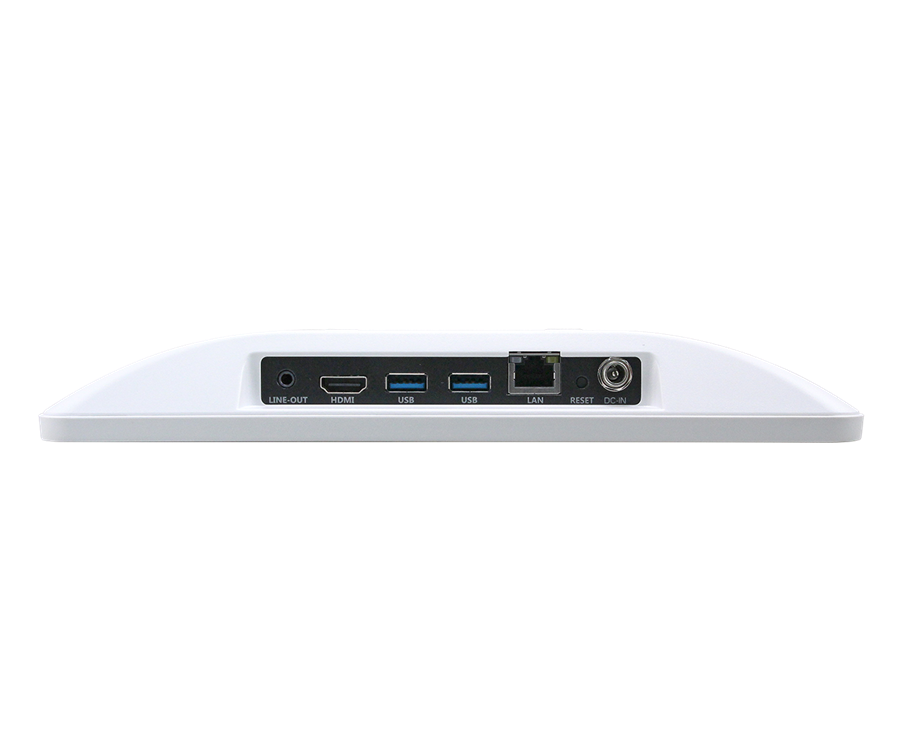

I/O Ports

USB Port

2 x USB 3.0

LAN Port

1 x RJ-45

Video Output

1 x HDMI 2.0

Audio Port

1 x Audio Jack

Audio

Speaker Output

1 x 2W

Ethernet

LAN Chipset

Realtek RTL8211F-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT 5.0

WLAN

Optional Wi-Fi 802.11ac/a/b/g/n

Data Collection

Camera

Front 2.0 MP camera

Power Requirement

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Adapter

Input: 100 ~ 240 Vac/ 50 ~ 60Hz
Output: 50W adapter (19V/2.63A)

Certification

Safety

CE, FCC Class B

Mechanical & Environmental

Dimension (mm)

261 x 175 x 34

Weight (kg)

0.8

Construction

Plastic

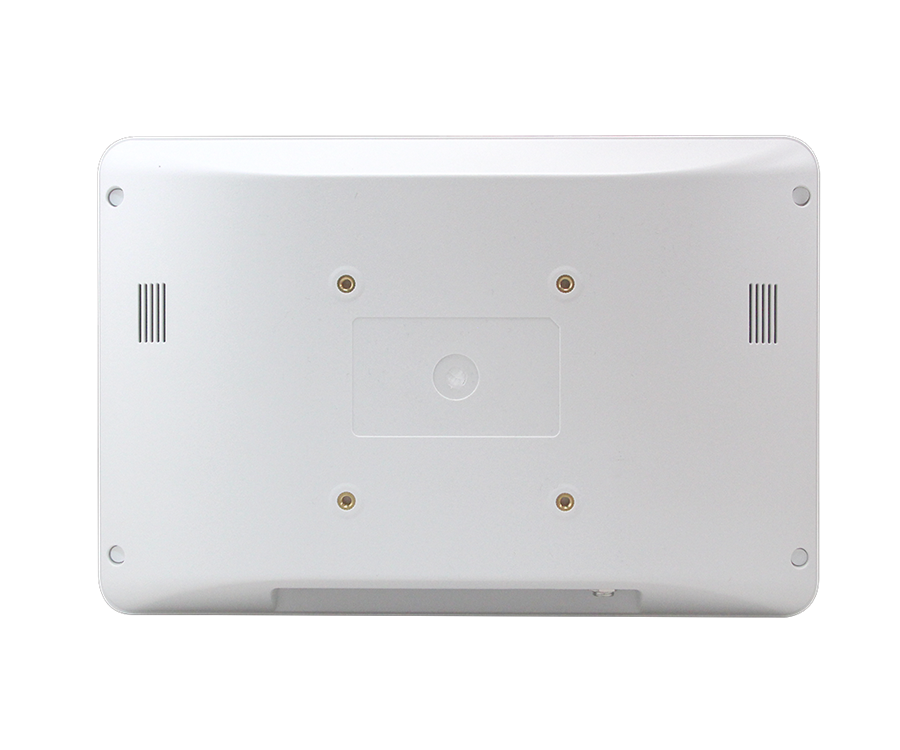

Mounting

VESA 75 x 75 mm

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

System Fan

Fanless

Ordering Information

CCD-10WR2-CV39C-1R : CCD-10WR2--32G-Android 11
CCD-10WR2-CV38C-1R : CCD-10WR2--32G-Debian 11

Manual

No.

Title

Description

Operating System

Release Date

Download

CCD-10WR2 1st Quick Reference Guide

2023.11.01
