HPS-ERSD4A

On-premises AI Server with Dual 4th/5th Gen. Intel® Xeon® Scalable Processors, NVIDIA RTX A6000 GPU Compatible

INTRODUCTION

DATASHEET

GET A QUOTE

1300W PSU supporting multi-GPU integration

19" 4U chassis with dual 4th/5th Gen Intel® Xeon® Scalable Processor support

Up to 7 PCIe Gen5 slots: 7 x PCIex16 for GPUs and add-on card expansion

DDR5 memory for real-time multi-tasking scenarios: 12 x DDR5 slots support 4800/4400 RDIMM up to 3TB

High-speed data transmission by dual 10GbE LAN ports

3× front-accessible 2.5" drive bays for flexible storage extension

Model with single 4th/5th Gen Intel® Xeon® scalable processor selectable (HPS-ERSU4A)

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

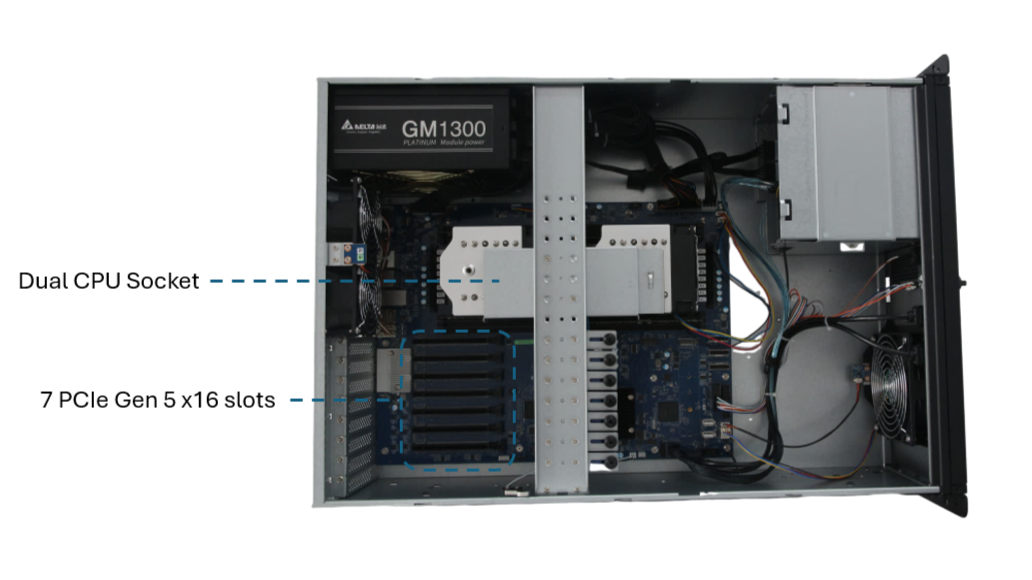

Extensive PCIe Expansion – equipped with 7 PCIe Gen 5 x16 slots, the system supports abundant GPU and add-on card integration for heavy parallel processing and future scalability

Dual Intel® Xeon® Scalable Processors – supports two 4th or 5th Generation Xeon CPUs (up to 270 W TDP each) for ultra-high computational throughput

DDR5 Memory Capacity – comes with 12 DDR5 5600 MHz RDIMM slots with support up to 3 TB, enabling smooth high-bandwidth multitasking

High-Performance Networking – features two 10 GbE Ethernet ports (plus 1 GbE and 2.5 GbE options) for fast data transfer in high-demand environments

Device Applications

Genomics & Bioinformatics Workflows – combination of extensive PCIe slots, dual Xeon CPUs, and vast memory make this system ideal for computationally intensive genomics tasks like genome assembly, variant calling, and high-throughput sequencing analysis

AI-Accelerated Medical Imaging & Analysis – easily integrates multiple high-end GPUs, making it perfect for deep learning in MRI, CT scan interpretation, and other image-driven diagnostics

Clinical Research & Precision Medicine – with strong compute and memory resources, it supports advanced analytics, predictive modeling, and real-time data processing to enable personalized diagnostics and treatment simulations

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Dual Intel FCLGA4677 Sockets support 4th/5th Generation
Intel Xeon Scalable Processors (Max. TDP at 270W each)

Chipset

Intel® C741 Chipset

System Memory

12 x DDR5 5600 MHz RDIMM up to 3TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

OS Support

Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server 2019
Windows Server 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later

Expansion Slot

PCIe

7 x PCIe Gen5 x16 slots
Slot 1, PCIe 5.0 x16 from 2nd CPU
Slot 2, PCIe 5.0 x16 from 1st CPU
Slot 3, PCIe 5.0 x16 from 2nd CPU
Slot 4, PCIe 5.0 x16 from 1st CPU
Slot 5, PCIe 5.0 x16 from 2nd CPU
Slot 6, PCIe 5.0 x16 from 1st CPU
Slot 7, PCIe 5.0 x16 from 2nd CPU
(Slot 7 is the slot closest to CPU)

Storage

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110
form factor

HDD/ SSD

3 x Front accessible 2.5" storage bays

Display

Graphic Chipset

AST 2600 BMC controller

Spec. & Resolution

1 x VGA (VGA: 1920 x 1200 @ 60Hz 32bpp)

Front I/O

LED Indicator

1 x Power Status Indicator
1 x Disk Activity Indicator
1 x Network Activity Indicator

Power Button

1 x Power Button

Reset Button

1 x Reset Button

USB Port

2 x USB 3.2 Gen1

Rear I/O

USB Port

6 x USB 3.2 Gen1

LAN Port

5 x RJ-45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shares with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

COM Port

1 x RS-232

Video Port

1 x VGA

Ethernet

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE
Ethernet ports

Power Requirement

Power Supply Unit

1 x 1300W PS2 ATX PSU (Default)
1 x 1600W CRPS (Option)

Mechanical & Environmental

Dimension (mm)

19" 4U Chassis
430 (W) x 174.8 (H) x 650 (D)
482.6 (W) x 174.8 (H) x 650 (D) with ear mount

Weight (kg)

25.8

Operating Temp.

0 ~ 35°C (L6 system with 1300W ATX PSU)
0 ~ 40°C (L6 system with 1600W CRPS)

Operating Humidity

35°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

LAN

Design Document

Manual

Other Driver

LAN

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_LAN

Windows 11 64bit Windows 10 64bit

2024.02.16

Design Document

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_Drawing

2024.07.15

Manual

No.

Title

Description

Operating System

Release Date

Download

MAB-T600 _Manual

2024.07.15

Other Driver

No.

Title

Description

Operating System

Release Date

Download

Intel(R)_DTT_1.0.10705.25772

Windows 11 64bit Windows 10 64bit

2024.02.16
