HPS-ERSD4A

HPS-ERSU4A

On-premises AI Server with Single 4th/5th Gen. Intel® Xeon® Scalable Processor, NVIDIA RTX A6000 GPU Compatible

INTRODUCTION

DATASHEET

GET A QUOTE

1300W PSU supporting multi-GPU integration

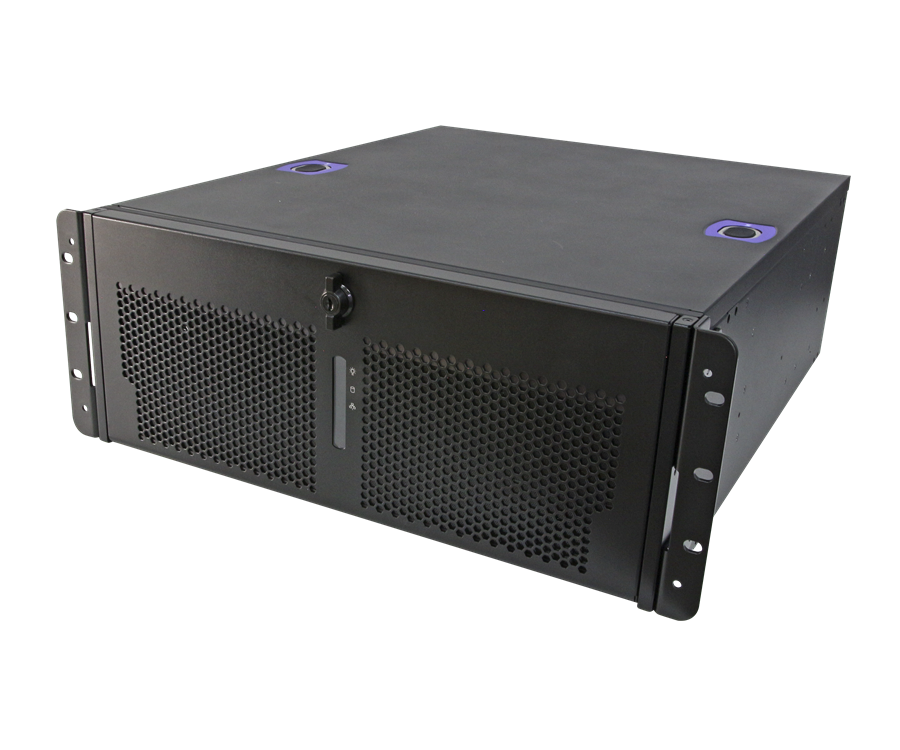

19" 4U chassis with single 4th/5th Gen Intel® Xeon® Scalable Processor support

Up to 7 PCIe Gen5 slots: 4 x PCIex16 and 4 x PCIex4 for GPUs and add-on card expansion

DDR5 memory for real-time multi-tasking scenarios: 6 x DDR5 slots support 5600 RDIMM up to 1.5TB

High-speed data transmission by dual 10GbE LAN ports

3× front-accessible 2.5" drive bays for flexible storage extension

Specification

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)

Chipset

Intel® C741 Chipset

System Memory

6 x DDR5 5600 MHz RDIMM up to 1.5TB

BIOS

AMI UEFI BIOS

Wachdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

OS Support

Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server IoT 2019 with VT-d disabled
Windows Server IoT 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later

Expansion Slot

PCIe

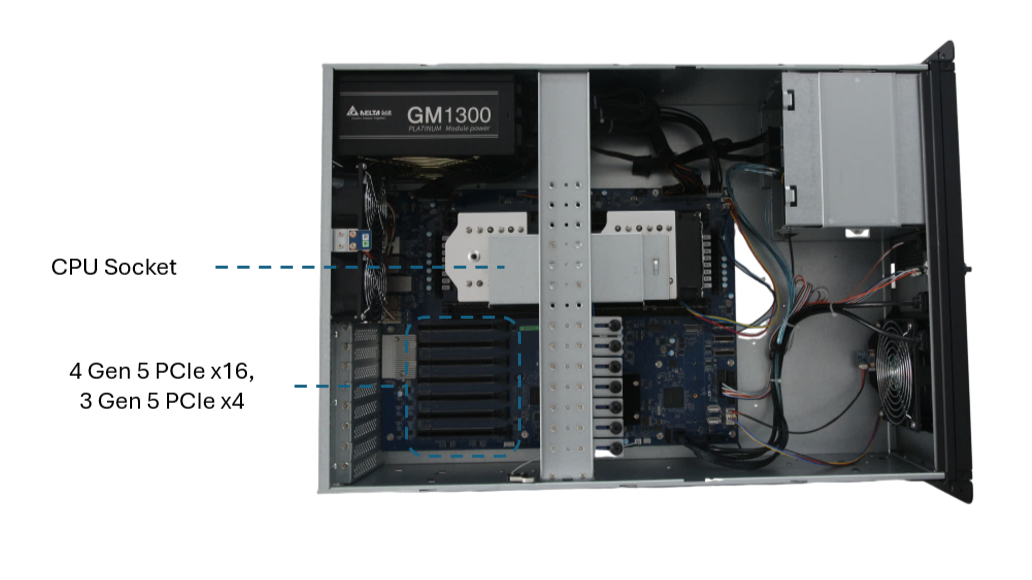

4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots
Slot 1, PCIe 5.0 x16
Slot 2, PCIe 5.0 x4
Slot 3, PCIe 5.0 x16
Slot 4, PCIe 5.0 x4
Slot 5, PCIe 5.0 x16
Slot 6, PCIe 5.0 x4
Slot 7, PCIe 5.0 x16 (Slot 7 is the slot closest to CPU)

Storage

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

HDD/ SSD

3 x Front accessible 2.5" storage bays

Display

Graphic Chipset

AST 2600 BMC controller

Spec. & Resolution

1 x VGA (VGA: 1920 x 1200 @ 60Hz 32bpp)

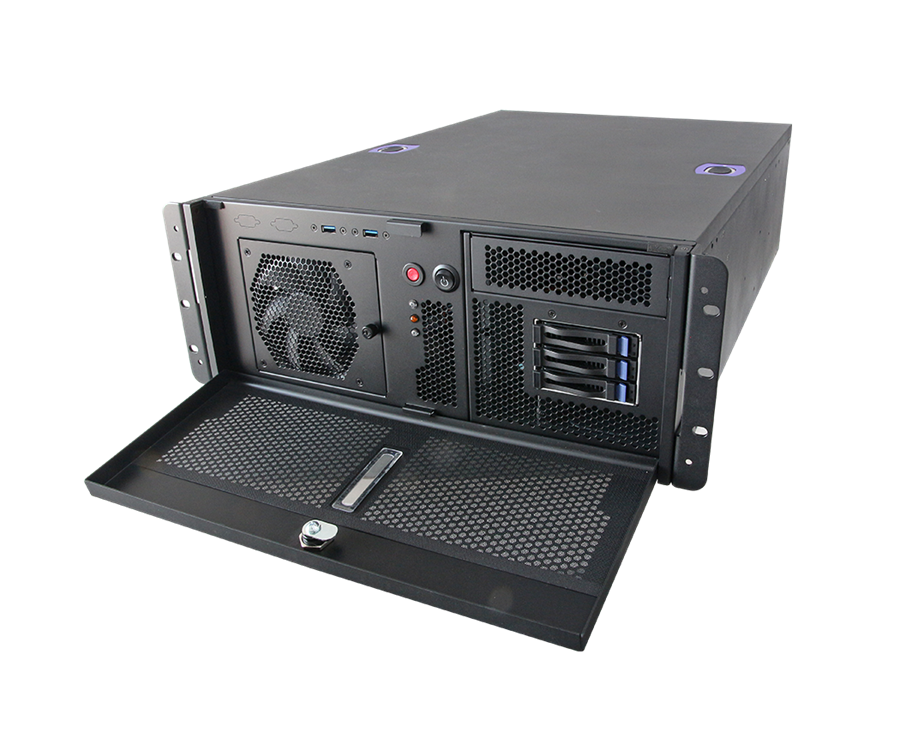

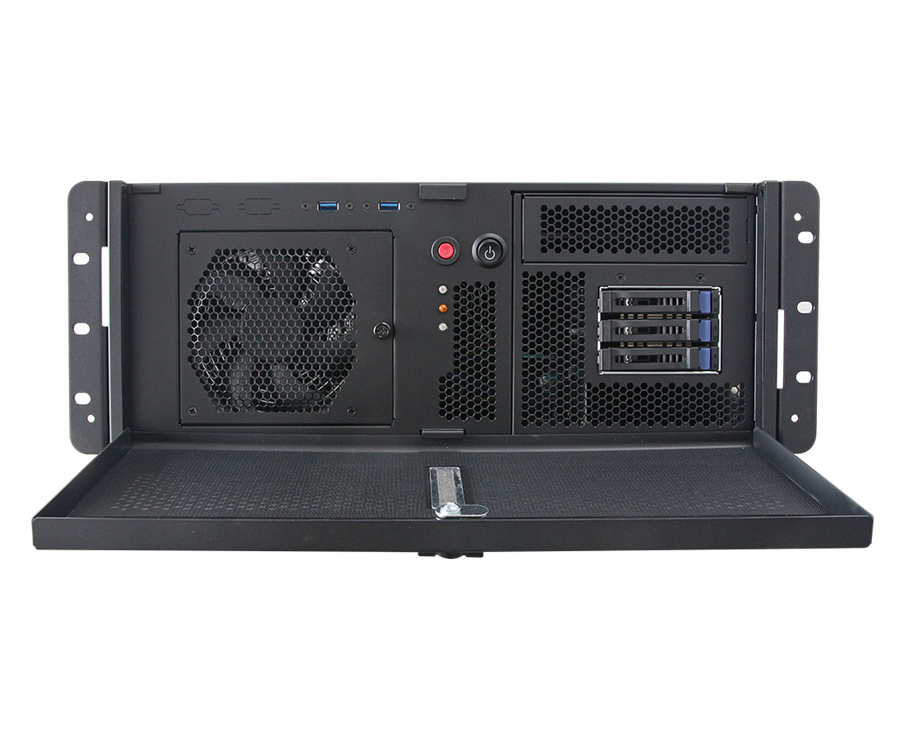

Front I/O

LED Indicator

1 x Power Status Indicator
1 x Disk Activity Indicator
1 x Network Activity Indicator

Power Button

1 x Power Button

Reset Button

1 x Reset Button

USB Port

2 x USB 3.2 Gen1

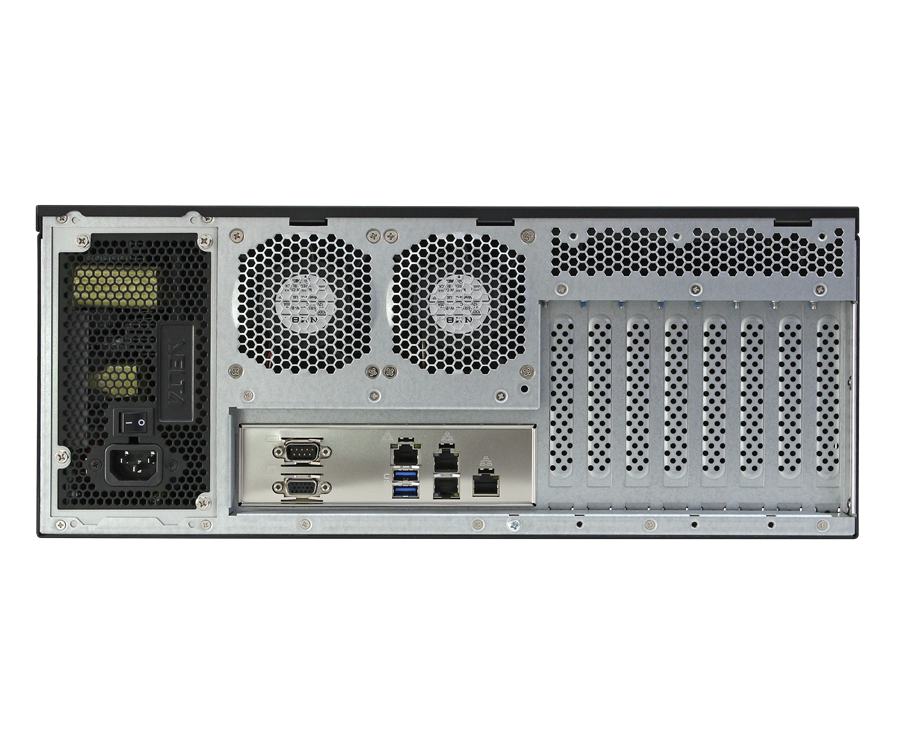

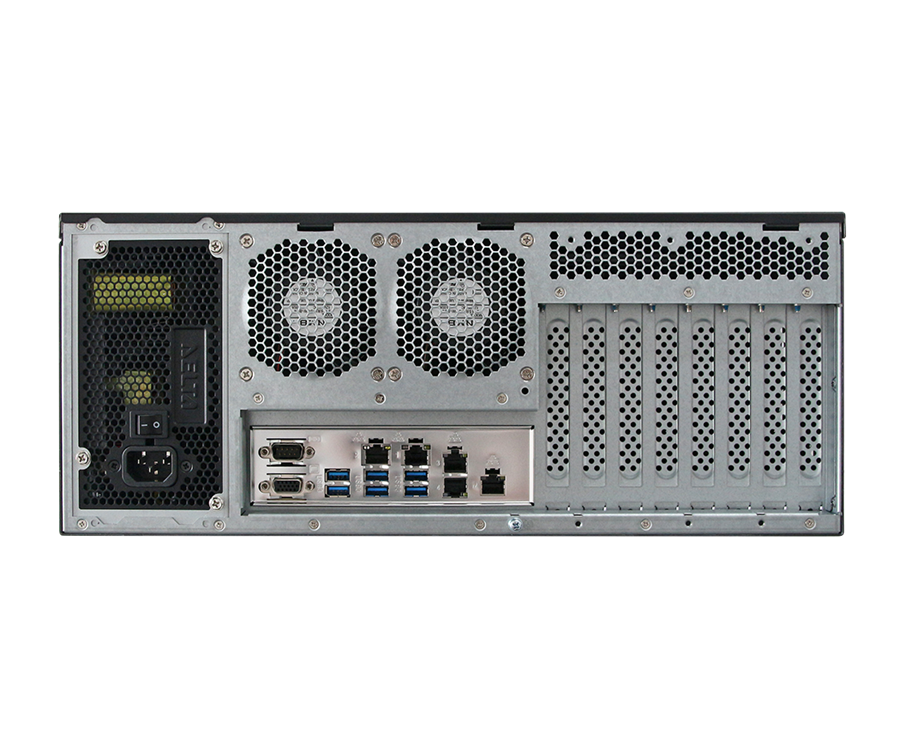

Rear I/O

USB Port

4 x USB 3.2 Gen1
2 x USB 2.0 Type A

LAN Port

5 x RJ-45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shares with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

COM Port

1 x RS-232

Video Port

1 x VGA

Ethernet

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

Power Requirement

Power Supply Unit

1 x 1300W PS2 ATX PSU

Mechanical & Environmental

Dimension (mm)

19" 4U Chassis
430(W) x 174.8(H) x 528(D)
482.6(W) x 174.8(H) x 528(D) with ear mount

Weight (kg)

19.5

Operating Temp.

0 ~ 35°C (L6 system)

Operating Humidity

35°C @95% Relative Humidity, Non-condensing

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
