Medical Edge AI PC

MAB-T600

The Expandable Barebone PCs with Medical-grade Safety For Imaging Capture & Advanced AI Computing

INTRODUCTION

DATASHEET

GET A QUOTE

High performance 12/13th generation Intel® Core™ i3/i5/i7/i9 processors supported

Four PCIe (PCIe x16, PCIe x1 incl.) for GPU expansion and function customization

DP/HDMI video ports for 3 independent high-resolution displays

Low-noise & low-heat design with medical EMC & safety certification for reliability

Rich USB ports & high-speed 2.5 GbE Ethernet

500W medical grade PSU

Introduction

Specification

Ordering Information

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Medical Grade Safety – safe to use around patients and sensitive equipment

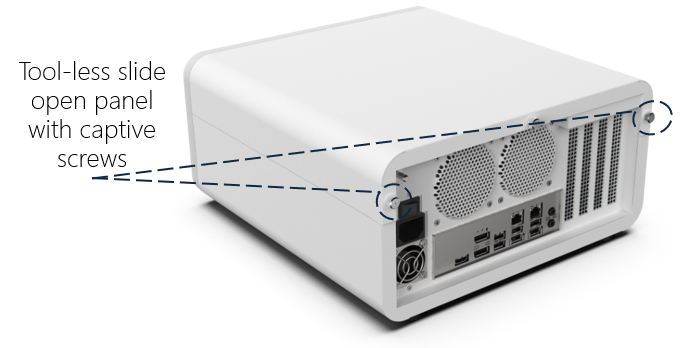

Slide Open Panel with Captive Screws – easy access for modification and prevents screw loss

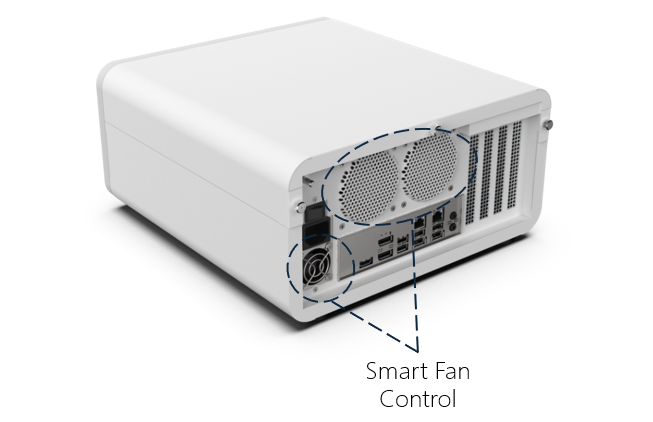

Smart Fan Control – withstands harsh temperatures while being energy efficient

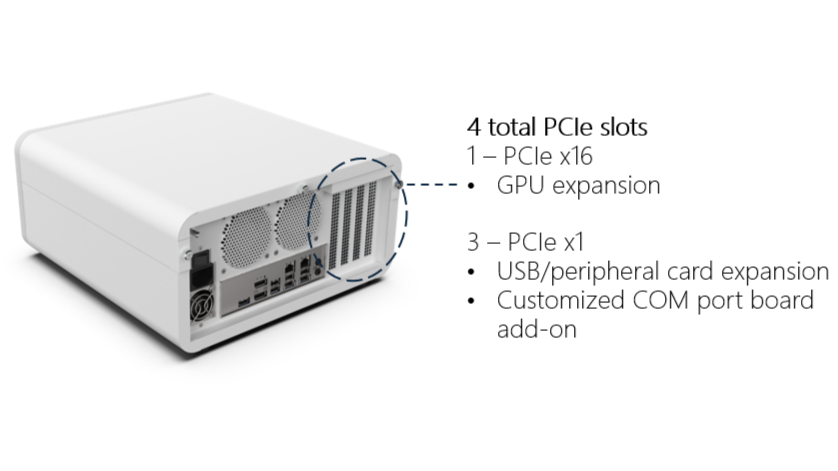

Multiple PCIe Slots – allow expandability, high-speed data transfer, upgrades without replacing entire system

Device Applications

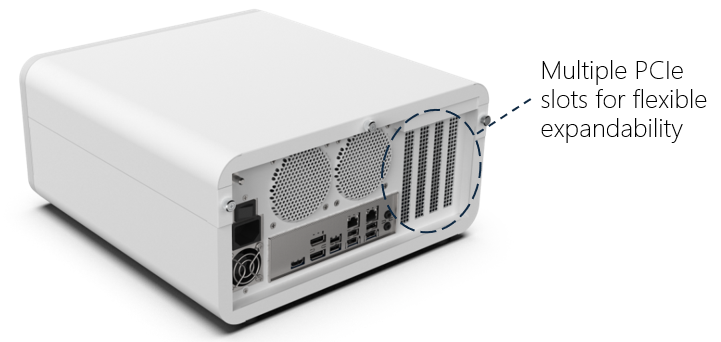

Flexible Expandibility - offers multiple PCIe slots that enable integration of add-on cards

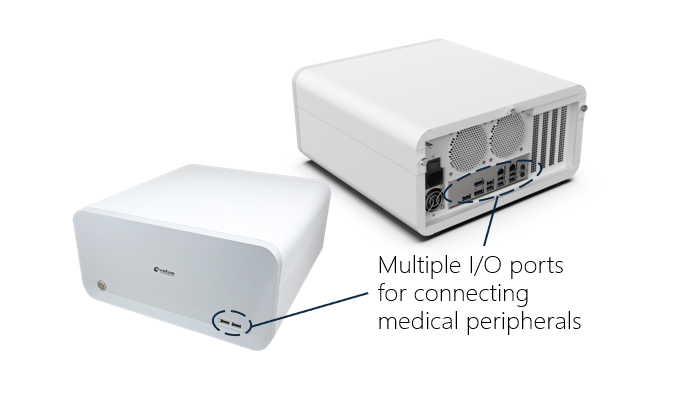

Medical Data Connectivity - allows medical staff to connect medical peripherals and transfer data fast

Telemedicine & Remote Care - supports multiple UHD displays, enabling high-resolution video consultation and remote diagnostics

Precision Medicine and Predictive Analytics - enables customized and more accurate treatment for patients

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

LGA 1700 Socket supports 12th Gen Alder Lake/ 13th Gen Raptor Lake Intel® Core™ i 9/7/5/3, Pentium, Celeron Processor up to 16 Cores 24 Threads Hybrid

Chipset

Intel® H610E Chipset

System Memory

2 x DIMM slots support Dual Channel DDR5 memory speed up to 4800/5600MHz (CPU dependent) with UDIMM, up to 64GB

BIOS

Socket type 256Mb SPI BIOS

Watchdog Timer

H/W reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring
Voltages monitoring
CPU fan speed control

TPM

Support onboard TPM 2.0

OS Support

Win 10, Win 11, Linux

Expansion Slot

PCIe

1 x Gen 5 PCIe x16 (x16 physical black) (slot 1)
1 x Gen 3 PCIe x1 (x4 physical open ended) (slot 2)
2 x Gen 3 PCIe x1 (x16 physical yellow) (slot 3 & 4)

M.2

1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi support (PCIe x 1 share with slot4 + USB 2.0)

Storage

HDD/ SSD

2 x 2.5” SATAIII HDD/SSD drive
(2 x 3.5” SATAIII HDD/SSD drive as option)

Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU dependent)

Spec. & Resolution

DP 1.4a (Max. Resolution: 3840X2160@60Hz)
HDMI 2.0b (Max. Resolution: 3840X2160@60Hz)

Multiple Display

Supports 3 independent display

Front I/O

Power Button

1 x Power Button (w/ LED indicator)

USB Port

2 x USB 2.0

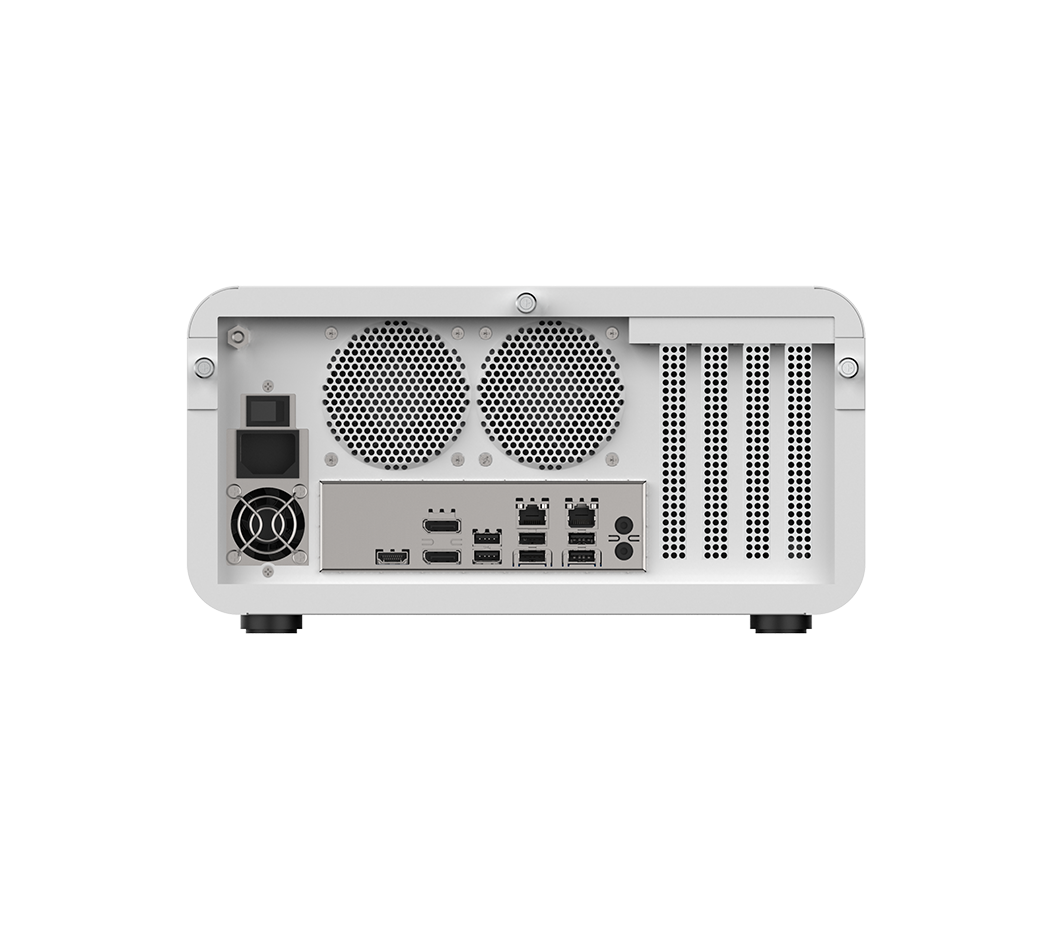

Rear I/O

USB Port

2 x USB 2.0 type A
4 x USB 3.2 type A

LAN Port

2 x 2.5 GbE by RJ-45

HDMI

1 x HDMI

2 x DP++

Audio

Line-out, Mic-in

Power Input

AC Input

Audio

Audio Interface

Realtek HD audio

Audio Amplifier

6W Per Channel Amplifier

Ethernet

LAN Chipset

LAN1: Intel® I219-V 2.5 GbE Ethernet Controller
LAN2: Intel® I225-LM 2.5 GbE Ethernet Controller

Power Requirement

Power Supply Unit

500W Medical 1U ATX Power Supply

Power Mode

AT/ATX mode (default: ATX mode)

Power Input

100-240V AC

Certification

Safety

ANSI AAMI ES60601-1:2005/A2: 2021 3.2.
CAN/CSA-C22.2 NO. 6060101 :14/A2:22 3.2.
IEC 60601-1:2005/A1:2012/A2:2020 3.2.
IEC 60601-1-2:2014/A1: 2020 4.1.
IEC 62368-1: 2018 3.0.
IEC 60601-1-6 : 2010/A1: 2013/A2: 2020 3.2.
EN 60601-1:2006+A2:2021.
EN 60601-1-2: 2015+A1:2021.
EN IEC 62368-1: 2020+A11:2020.
BS EN 60601-1: 2006+A2: 2021.
BS EN 60601-1-2: 2015+A1:2021.
BS EN IEC 62368-1 :2020+A11:2020.
47CFR FCC part 15 subpart B.
ICES-003 issue 7 Oct. 2020.
ISO 14971 3rd edition, December 2019.

Mechanical & Environmental

Dimension (mm)

330 x 344 x 160

Weight (kg)

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Drop Test

One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Construction

Metal + Plastic

Ordering Information

Options

Ordering Information

CPU, memory, storage, and operating system bundled on request. Please contact your sales representative for more information.

Part No.

Description

MAB-T600-A1-1R

Barebone system with micro ATX RX610H motherboard, 500W medical PSU, 65W CPU cooler, 1 x PCIe x16 & 3 x PCIe x1 expansion, white color

Options

The medical certification is granted based on the barebone system configuration. Any additional cards or modules may require recertification.

Part No.

Description

RCC-GPU-RTXADA-01R

Graphic Card, NVIDIA RTX 4000 Ada / 20GB (ATX / LP Bracket)

RCC-GPU-RTXADA-02R

Graphic Card, NVIDIA RTX 4000 SFF ADA / 20GB (ATX / LP Bracket)

RCC-GPU-RTXADA-03R

Graphic Card, NVIDIA RTX 2000 ADA / 16GB (ATX / LP Bracket)

RCC-GPU-RTXADA-04R

Graphic Card, NVIDIA RTX A1000 / 8GB (ATX Bracket)

RCC-CAP-PCIE-01R

Yuan SC710N2-L HDMI 2.0 Capture Card, 4K resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-02R

Yuan SC400N4 HDMI Capture Card, 1080p resolution, 4 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-04R

Yuan SC400N2-L HDMI Capture Card, 1080P resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-05R

Yuan SC410N4 HDMI Capture Card, 4k resolution, 4 x HDMI in, PCIe x4 interface

RCC-WIFI-PCIE-01R

WiFi set ENL-5400PCI, WiFi 6E with Bluetooth 5.3, PCIe adapter

RCC-WIFI-M2BT-01R

ACC-M2-WIFIBT-19R, WiFi module, WiFi 6E with kits & bracket

RCC-POE-PCIE-01R

SI350-4RJ-POE, POE Card, Intel I210AT, 1 x RJ-45, 1 Gbps POE, PCIe x1 interface

RCC-LAN-PCIE-01R

D82574-1RJ, LAN Card, Intel 82574L, 1 x RJ-45, 1 Gbps LAN, PCIe x1 interface

RCC-LAN-PCIE-02R

SI350AM2-2RJ(A), LAN Card, Intel I350AM2, 2 x RJ-45, 1 Gbps LAN, PCIe x4 interface

Chipset

Audio

Graphics

LAN

Design Document

Manual

Other Driver

Chipset

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_Chipset

Windows 11 64bit Windows 10 64bit

2025.06.25

Audio

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_Audio

Windows 11 64bit Windows 10 64bit

2025.06.25

Graphics

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_Graphics

Windows 11 64bit Windows 10 64bit

2025.06.25

LAN

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_LAN

Windows 11 64bit Windows 10 64bit

2024.02.16

Design Document

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_Drawing

2024.07.15

Manual

No.

Title

Description

Operating System

Release Date

Download

MAB-T600 _Manual

2024.07.15

Other Driver

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_SerialIO

Windows 11 64bit Windows 10 64bit

2025.06.25

Intel(R)_DTT_1.0.10705.25772

Windows 11 64bit Windows 10 64bit

2024.02.16
