Medical Edge AI PC

MAB-T600-B1

The Barebone PCs with Medical-grade Safety GPU Expandable For Heavy-Loading AI Edge Computing

INTRODUCTION

DATASHEET

GET A QUOTE

High performance 12/13th generation Intel® Core™ i3/i5/i7/i9 processors supported

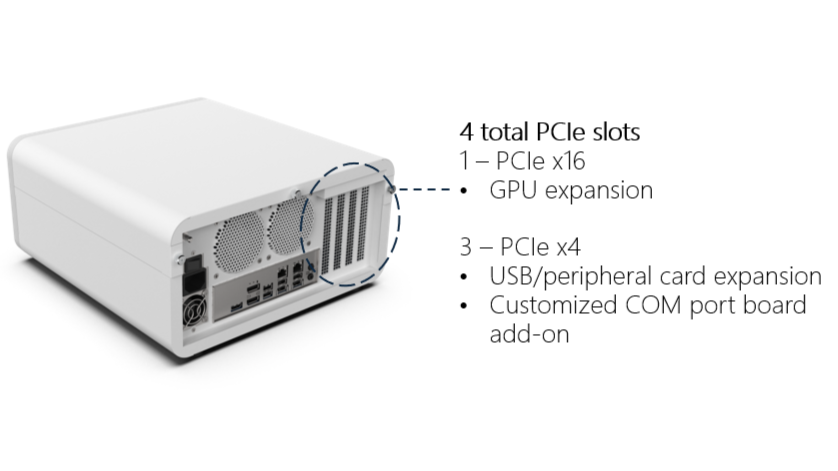

Four PCIe slots (PCIe x16/ PCIe x4 incl.) for expansions of GPU, capture, and peripheral cards

4 x DP++ for simultaneous 4 displays in high resolution

RAID 0, 1, 5, 10 support for different data backup requirements of critical clinical data

500W medical grade PSU

Up to 9 USB ports (USB 3.2 Gen 2 & type C incl.) & high-speed 2.5 GbE Ethernet

Low-noise & low-heat design with medical EMC & safety certification for reliability

Introduction

Specification

Ordering Information

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Medical Grade Safety – safe to use around patients and sensitive equipment

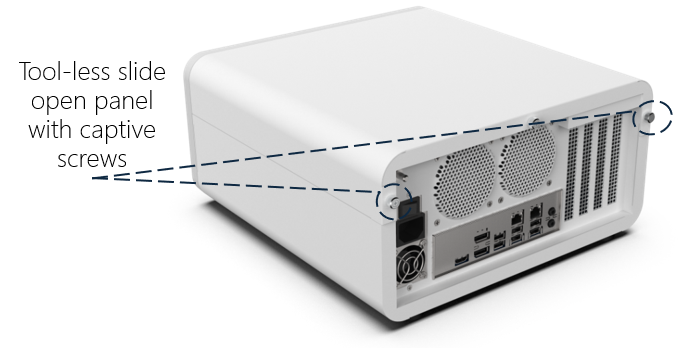

Slide Open Panel with Captive Screws – easy access for modification and prevents screw loss

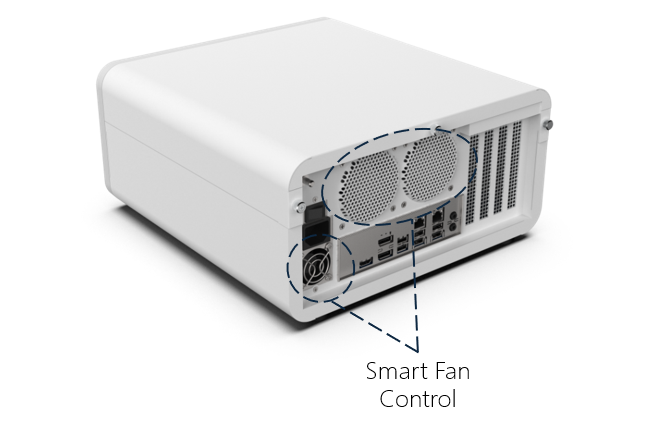

Smart Fan Control – withstands harsh temperatures while being energy efficient

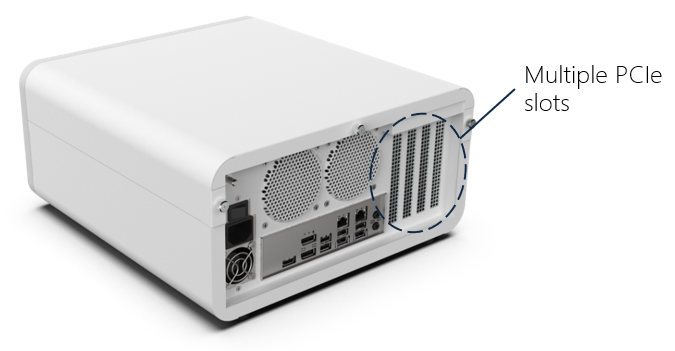

Multiple PCIe Slots – allow expandability, high-speed data transfer, upgrades without replacing entire system

Devices Uses

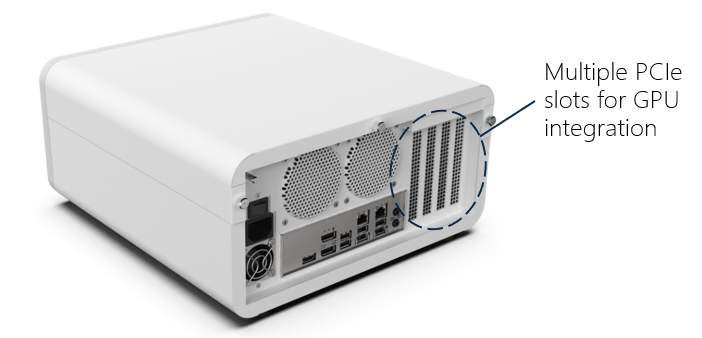

AI-Accelerated Medical Imaging - utilizes its PCIe slots for GPU integration
OR Integration - powers devices like surgical robots with AI-driven guidance

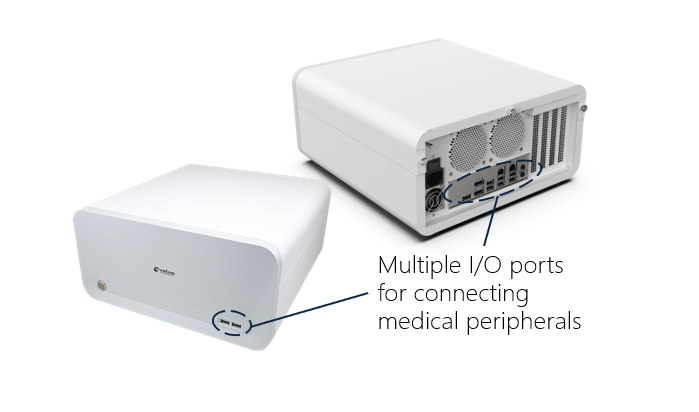

Medical Data Connectivity - allows medical staff to connect medical peripherals and transfer data fast
Telemedicine & Remote Care - supports multiple UHD displays, enabling high-resolution video consultation and remote diagnostics.
Precision Medicine and Predictive Analytics - enables customized and more accurate treatment for patients

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

LGA 1700 socket supports 12th Gen Alder Lake/ 13th Gen Raptor Lake Intel® Core™ i 9/7/5/3, Pentium®, Celeron® processors up to 16 Cores 24 Threads Hybrid

Chipset

Intel® R680E Chipset

System Memory

4 x DIMM slots support Dual Channel DDR5 memory speed up to 4400MHz with UDIMM, up to 128GB, with ECC support

BIOS

Socket type 256Mb SPI BIOS

RAID

Support 0, 1, 5, 10

Watchdog Timer

H/W reset, 5~255 seconds/5~255 minutes

H/W Status Monitor

CPU temperature monitoring, voltages monitoring, CPU fan speed control

TPM

Support onboard TPM 2.0

OS Support

Win 10, Win 11, Linux

Expansion Slot

PCIe

1 x Gen 5 PCIe x16
2 x Gen 4 PCIe x4 (x16 physical yellow)
1 x Gen 3 PCIe x4 open ended

M.2

1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 4 PCIe x4 + SATA III)
1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 3 PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi support (PCIe x 1 + USB 2.0)

Storage

HDD/ SSD

2 x 2.5” SATAIII HDD/SSD drive
(2 x 3.5” SATAIII HDD/SSD drive as option)

Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU dependent)

Spec. & Resolution

4x Dual Mode DP 1.4a (Max. Resolution: 3840X2160@60Hz)

Multiple Display

Supports 4 Independent display

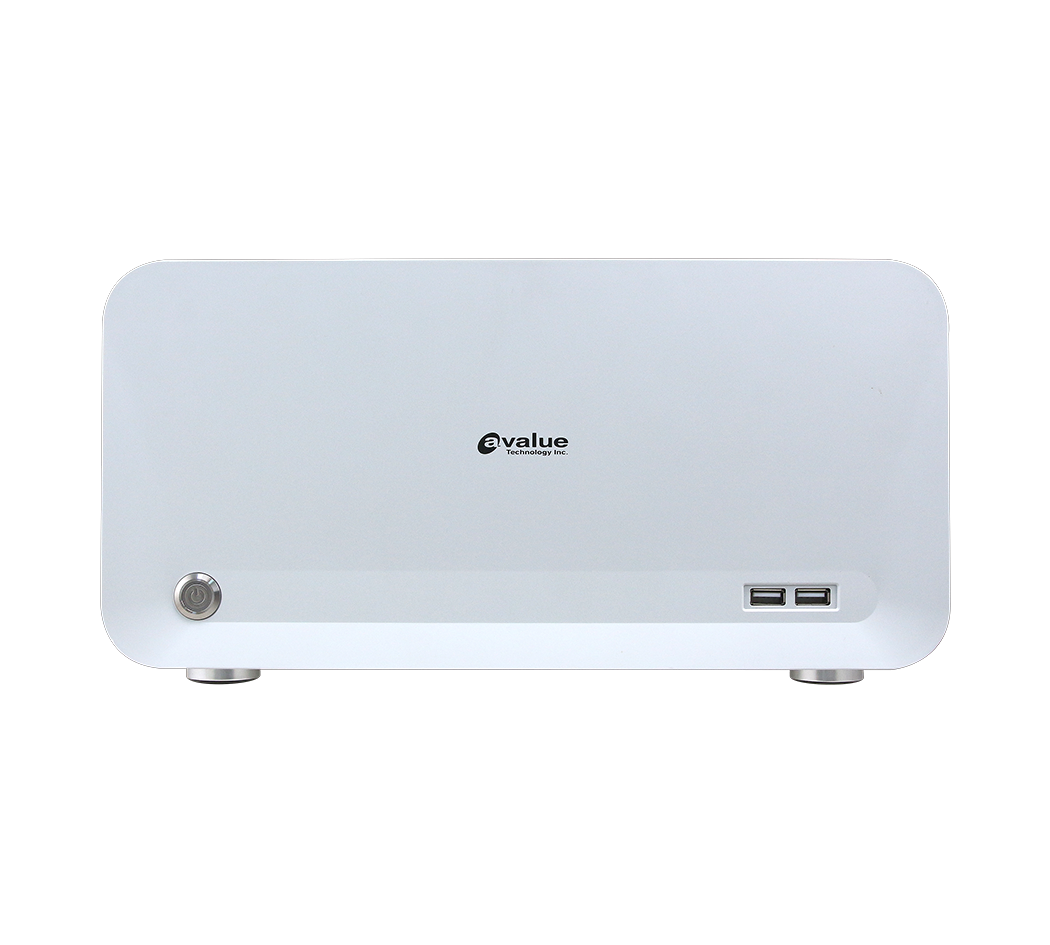

Front I/O

Power Button

1 x Power Button (w/ LED indicator)

USB Port

2 x USB 2.0

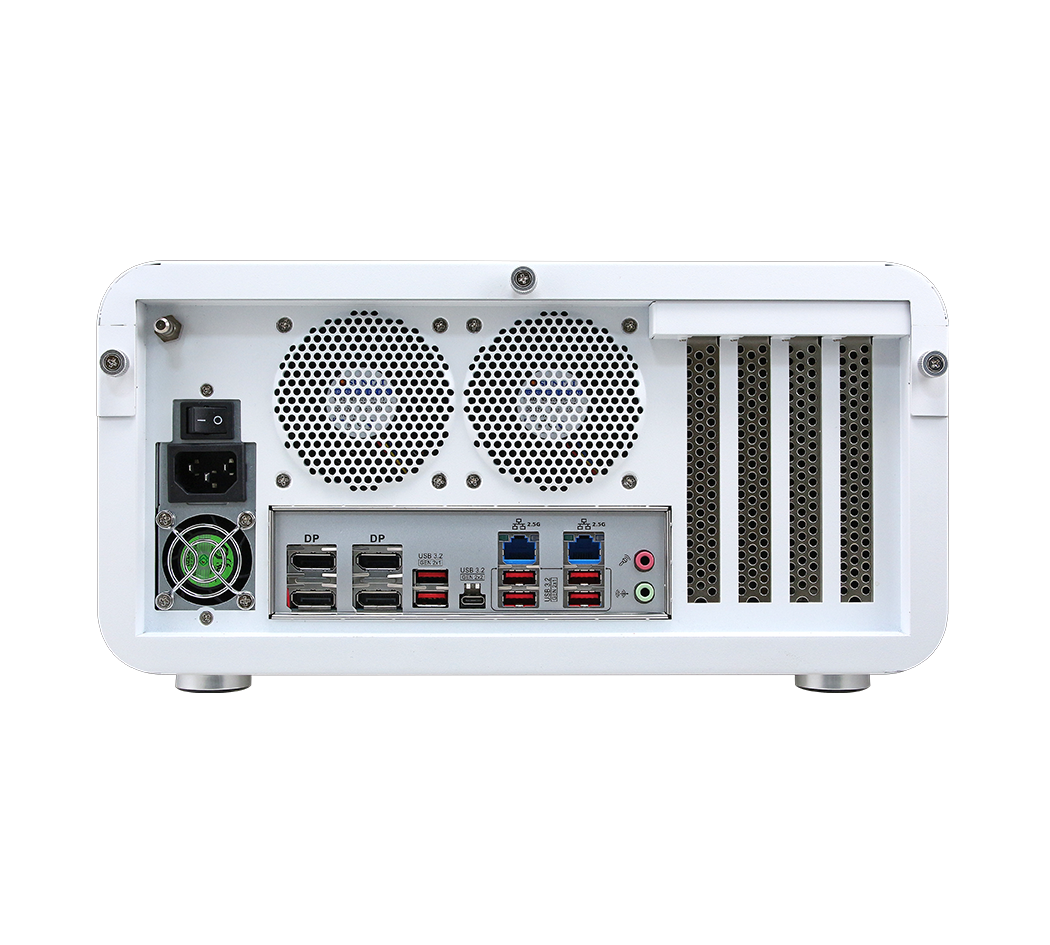

Rear I/O

USB Port

6 x USB 3.2 Gen 2x1 ports
1 x USB 3.2 Gen 2x2 type-C

LAN Port

2 x 2.5 GbE by RJ-45

4 x DP++

Audio

Line-out, Mic-in

Power Input

AC Input

Audio

Audio Codec

Realtek HD audio

Ethernet

LAN Chipset

LAN1: Intel® I225-LM/I226-LM 2.5 GbE Controller
LAN2: Intel® I225-LM/I226-LM 2.5 GbE Controller

Power Requirement

Power Supply Unit

500W medical 1U ATX Power Supply

Power Mode

AT/ATX mode (default: ATX mode)

Power Input

100-240V AC

Certification

Safety

ANSI AAMI ES60601-1:2005/A2: 2021 3.2.
CAN/CSA-C22.2 NO. 6060101 :14/A2:22 3.2.
IEC 60601-1:2005/A1:2012/A2:2020 3.2.
IEC 60601-1-2:2014/A1: 2020 4.1.
IEC 62368-1: 2018 3.0.
IEC 60601-1-6 : 2010/A1: 2013/A2: 2020 3.2.
EN 60601-1:2006+A2:2021.
EN 60601-1-2: 2015+A1:2021.
EN IEC 62368-1: 2020+A11:2020.
BS EN 60601-1: 2006+A2: 2021.
BS EN 60601-1-2: 2015+A1:2021.
BS EN IEC 62368-1 :2020+A11:2020.
47CFR FCC part 15 subpart B.
ICES-003 issue 7 Oct. 2020.
ISO 14971 3rd edition, December 2019.

Mechanical & Environmental

Dimension (mm)

330 x 344 x 160

Weight (kg)

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative humidity, non-condensing

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Drop Test

One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Construction

Metal + Plastic

Ordering Information

Options

Ordering Information

CPU, memory, storage, and operating system bundled on request. Please contact your sales representative for more information.

Part No.

Description

MAB-T600-B1-1R

Barebone system with micro ATX RX680R motherboard, 500W medical PSU, 65W CPU cooler, 1 x PCIe x16 & 3 x PCIe x4 expansion, white color

Options

The medical certification is granted based on the barebone system configuration. Any additional cards or modules may require recertification.

Part No.

Description

BCC-GPU-TX4000-02R

Graphic Card, NVIDIA RTX 4000 ADA / 20GB (ATX Bracket)

RCC-GPU-RTXADA-02R

Graphic Card, NVIDIA RTX 4000 SFF ADA / 20GB (ATX / LP Bracket)

RCC-GPU-RTXADA-03R

Graphic Card, NVIDIA RTX 2000 ADA / 16GB (ATX / LP Bracket)

RCC-GPU-RTXADA-04R

Graphic Card, NVIDIA RTX A1000 / 8GB (ATX Bracket)

RCC-CAP-PCIE-01R

Yuan SC710N2-L HDMI 2.0 Capture Card, 4K resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-02R

Yuan SC400N4 HDMI Capture Card, 1080p resolution, 4 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-04R

Yuan SC400N2-L HDMI Capture Card, 1080P resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-05R

Yuan SC410N4 HDMI Capture Card, 4k resolution, 4 x HDMI in, PCIe x4 interface

RCC-WIFI-PCIE-01R

WiFi set ENL-5400PCI, WiFi 6E with Bluetooth 5.3, PCIe adapter

RCC-WIFI-M2BT-01R

ACC-M2-WIFIBT-19R, WiFi module, WiFi 6E with kits & bracket

RCC-POE-PCIE-01R

SI350-4RJ-POE, POE Card, Intel I210AT, 1 x RJ-45, 1 Gbps POE, PCIe x1 interface

RCC-LAN-PCIE-01R

D82574-1RJ, LAN Card, Intel 82574L, 1 x RJ-45, 1 Gbps LAN, PCIe x1 interface

RCC-LAN-PCIE-02R

SI350AM2-2RJ(A), LAN Card, Intel I350AM2, 2 x RJ-45, 1 Gbps LAN, PCIe x4 interface
