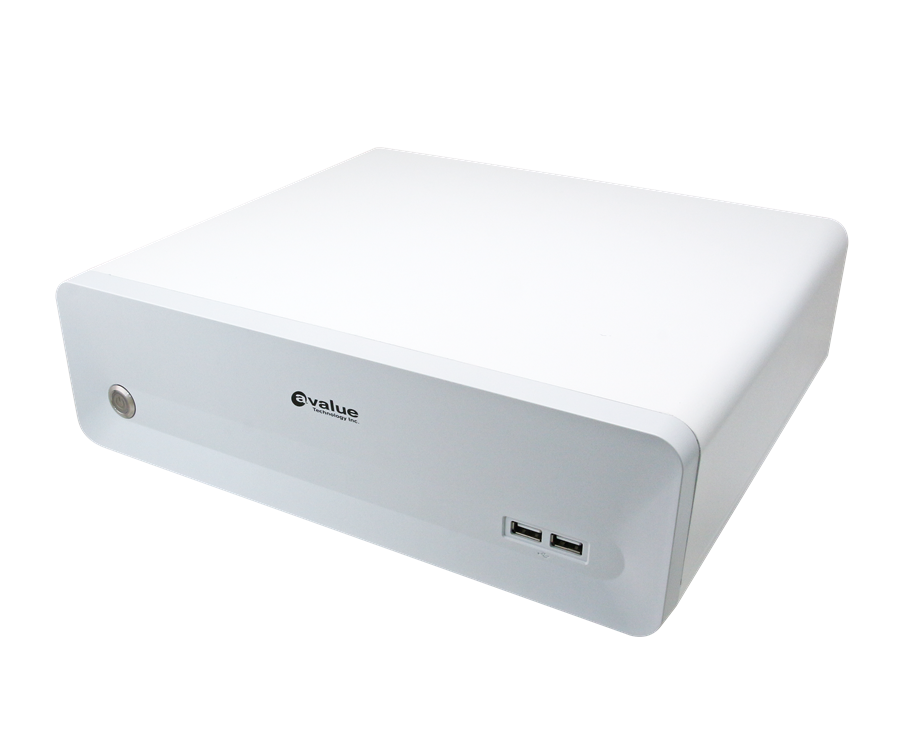

MAB-T660D

Edge AI PC in Compact Size for Space-Constrained Medical Device, DC Power Version

INTRODUCTION

DATASHEET

GET A QUOTE

Compact and half in size easy for space-constraint scenarios, like endoscopy integration or compact streaming box

High performance supported by 12/13/14th Generation Intel® Core™ i3/i5/i7/i9 Processors

One half-height PCIe slot (1x PCIe x16 via riser card) for GPU/capture card expansions

Support 4K high-resolution displays by 1 x DP, 1 x HDMI

TPM 2.0 ensures secure data access and system integrity

iAMT enables out-of-band remote management, reducing downtime and service costs

Introduction

Specification

Ordering Information

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

DC Power Design – supports operation on powered mobile carts, enabling reliable edge AI computing at the point of care

Compact Size – suitable for use in space-constrained environments such as during endoscopic procedures or in operating rooms where equipment footprint must be minimized

4K Display Support – equipped with 1 x DP and 1 HDMI, it can provide sharp and detailed imaging essential for medical diagnostics and visualization

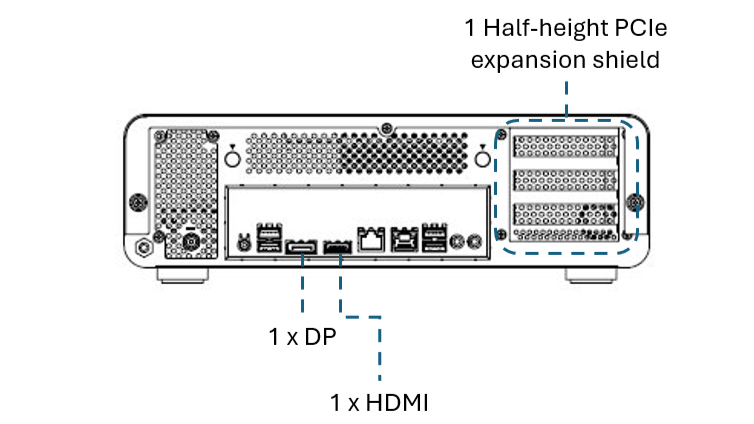

One half-height PCIe slot – 1x PCIe x16 via riser card allows expandability, high-speed data transfer, upgrades without replacing entire system

Device Applications

Endoscopic Procedures – its compact form makes it suitable for mounting directly on endoscopy carts and can also support capture cards for high resolution video input from endoscopes

Telemedicine & Streaming – it can support 4K display through both its DP and HDMI slot making it ideal for surgical broadcasts or remote consultations

Edge AI & Data Processing – the PCIe slot allows for adding a GPU to run AI models at the edge for medical procedures like image analysis or anomaly detection

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

12th Gen Alder Lake/ 13th Gen Raptor Lake/ 14th Gen Raptor Lake Refresh Intel® Core™ i3/i5/i7/i9 Processors. Max TDP 65W

Chipset

Intel® H610E Chipset

System Memory

2 x SODIMM sockets support DDR5 5600MHz up to 64GB (Non-ECC) (CPU dependent)

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 5~255 seconds/5~255 minutes

iAMT

Yes

TPM

dTPM2.0

OS Support

Win 10, Win 11, Linux

Expansion Slot

PCIe

1 x Gen 4 PCIe x16

M.2

1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 CNVi (PCIe x1 + USB 2.0)

Storage

M.2

1 x M.2 Key-M 2242/2280 NVMe (PCIex4, SATA3)

Storage

1 x Internal 2.5”Drive Bay

Display

Graphic Chipset

Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)

Spec. & Resolution

1 x DP 1.4a 4096 x 2304@60Hz
1 x HDMI 1.4b 3840 x 2160 @30Hz

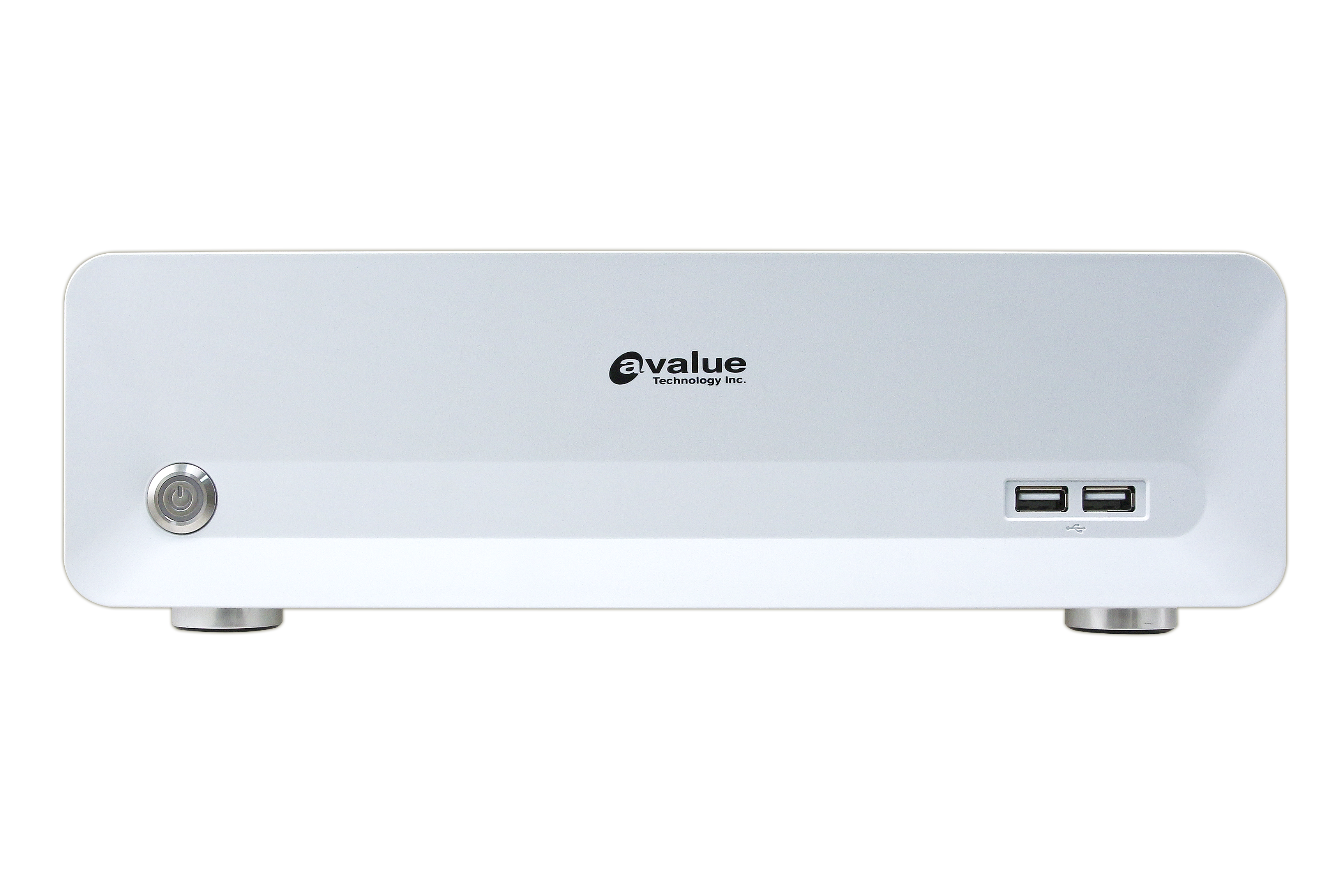

Front I/O

LED Indicator

1 x Power on/off LED

Power Button

1 x Power Button

USB Port

2 x USB 2.0

Rear I/O

USB Port

2 x USB 2.0 (Type A)
2 x USB 3.2 (Type A)

LAN Port

2 x RJ45

HDMI

1 x HDMI 1.4b

1 x DP 1.4a

Audio

Line-out, Mic-in

Power Input

4-pin DC Jack

Audio

Audio Codec

Realtek HD Audio Codec

Audio Amplifier

TI TPA3005 Stereo Class-D 3W4Ω

Ethernet

LAN Chipset

1 x Intel® i225LM 2.5 Gigabit Controller
1 x Intel® I219-V Gigabit Ethernet PHY

Power Requirement

Power Mode

AT / ATX mode (Default ATX)

Power Input

12V-24V DC-in

Adapter

External 180W adapter (Optional medical 180W adapter)

Certification

Safety

ITE CE/FCC

Mechanical & Environmental

Dimension (mm)

315 x 273 x 92

Weight (kg)

4.8

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow (turbo mode off)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-20°C ~ 60°C(-4°F ~ 140°F)

Drop Test

Package drop test:One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32

Vibration Test

Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms

Ordering Information

Options

Ordering Information

CPU, memory, storage, and operating system bundled on request. Please contact your sales representative for more information.

Part No.

Description

MAB-T660D-A1-1R

Barebone system with mini-ITX MX610HD motherboard, 65W CPU cooler, 1 x PCIe x16 expansion, white color

Options

The medical certification is granted based on the barebone system configuration. Any additional cards or modules may require recertification.

Part No.

Description

RCC-GPU-RTXADA-04R

Graphic Card, NVIDIA RTX A1000 / 8GB (ATX Bracket)

RCC-GPU-RTXADA-03R

Graphic Card, NVIDIA RTX 2000 ADA / 16GB (ATX / LP Bracket)

RCC-GPU-RTXADA-02R

Graphic Card, NVIDIA RTX 4000 SFF ADA / 20GB (ATX / LP Bracket)

RCC-CAP-PCIE-01R

Yuan SC710N2-L HDMI 2.0 Capture Card, 4K resolution, 2 x HDMI in, PCIe x4 interface

RCC-CAP-PCIE-04R

Yuan SC400N2-L HDMI Capture Card, 1080P resolution, 2 x HDMI in, PCIe x4 interface

RCC-WIFI-PCIE-01R

WiFi set ENL-5400PCI, WiFi 6E with Bluetooth 5.3, PCIe adapter

RCC-WIFI-M2BT-01R

ACC-M2-WIFIBT-19R, WiFi module, WiFi 6E with kits & bracket

RCC-POE-PCIE-01R

SI350-4RJ-POE, POE Card, Intel I210AT, 1 x RJ-45, 1 Gbps POE, PCIe x1 interface

RCC-LAN-PCIE-01R

D82574-1RJ, LAN Card, Intel 82574L, 1 x RJ-45, 1 Gbps LAN, PCIe x1 interface

RCC-LAN-PCIE-02R

SI350AM2-2RJ(A), LAN Card, Intel I350AM2, 2 x RJ-45, 1 Gbps LAN, PCIe x4 interface

LAN

Design Document

Manual

Other Driver

LAN

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_71841_LAN

Windows 11 64bit Windows 10 64bit

2024.02.16

Design Document

No.

Title

Description

Operating System

Release Date

Download

MAB-T600_Drawing

2024.07.15

Manual

No.

Title

Description

Operating System

Release Date

Download

MAB-T600 _Manual

2024.07.15

Other Driver

No.

Title

Description

Operating System

Release Date

Download

Intel(R)_DTT_1.0.10705.25772

Windows 11 64bit Windows 10 64bit

2024.02.16
