CAXA0

10.1" Portable Medical Tablet As Vital Sign & Remote-Consultation Gateway

INTRODUCTION

DATASHEET

GET A QUOTE

While unit IP-65 compliance satisfies disinfection demand

Best reliability & quick market entrance by global medical certifications

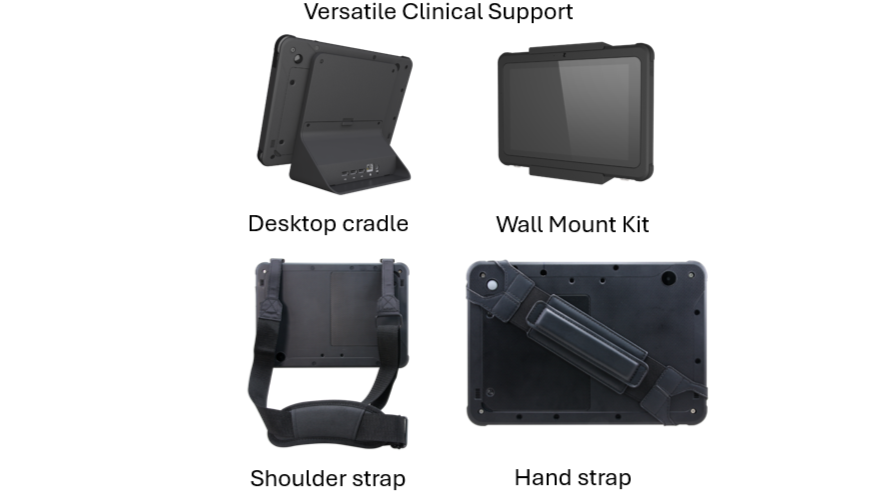

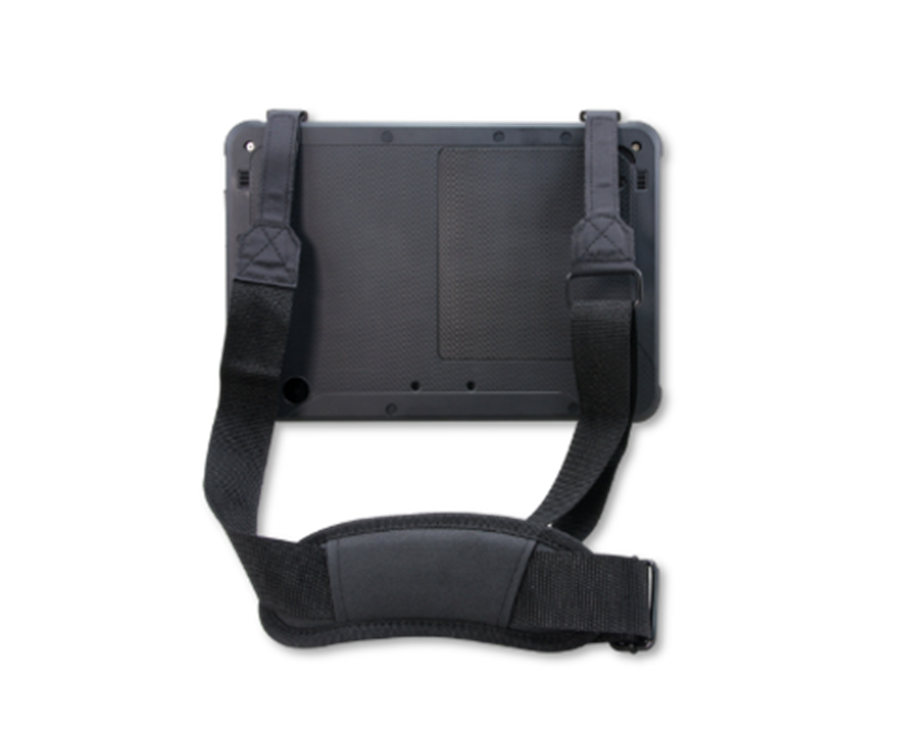

Desktop stand, wall mount kit and shoulder/hand strap expand the use scenario

MIL-STD-810G drop test certification with best protection

High mobility with multiple connectivity including WLAN, bluetooth, NFC

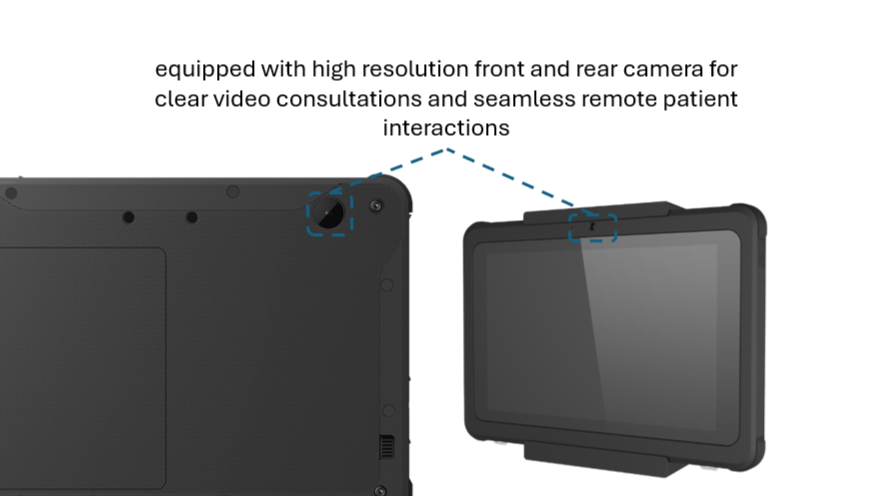

Built-in 2M/8M camera for instant clinical consultation

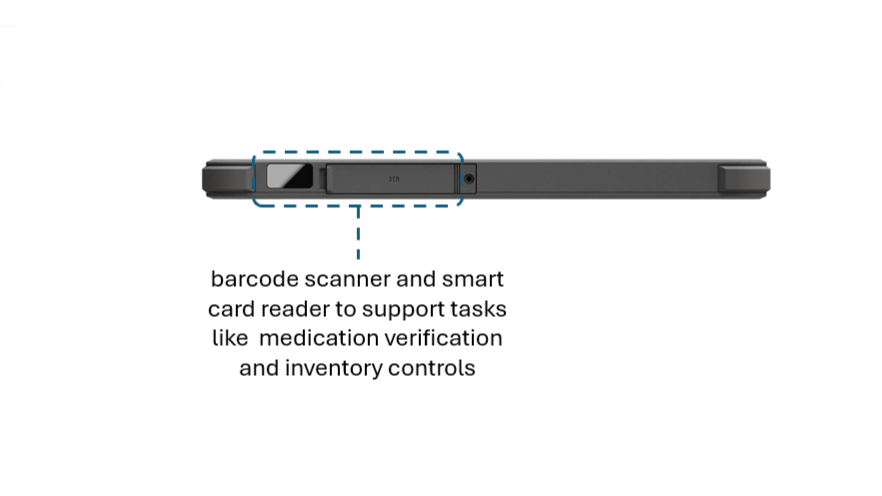

Nurse/patient ID card identification by smart card reader

Support Windows 10 and Android 11

Introduction

Specification

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® Celeron® Processor N3350/N4200

System Memory

Onboard LPDDR4 4GB / 8GB

Storage

Solid State Drive

M.2 128GB solid state drive

Power Requirement

Battery

28.44W Li-ion battery

Battery Operating Time

6 Hours

DC Input Connector

DC Jack

DC Input

+19V

Software Support

Windows 10 IoT 64bit
Android 8.1 without NFC
Android 11 without NFC

Certification

Certification Information

Australia RCM
Canada ICES-003 / IC
China CCC / SRRC
Chile SUBTEL
Japan VCCI / MIC
Taiwan BSMI /NCC
USA FCC
UK UKCA
EU CE / RED / EN60601-1, EN60601-1-2 :
Austria、Belgium、Czech Republic、Denmark、Finland、France、Germany、Greece、Hungary、Ireland、Italy、Latvia、Liechtenstein、Luxembourg、Netherlands、Norway、Poland、Portugal、Romania、Slovakia、Slovenia、Spain、Sweden、Switzerland
Compliance : Costa Rica、Egypt、Hongkong、Sri Lanka

In-Box Accessory

Accessory

+19V 65W power adaptor

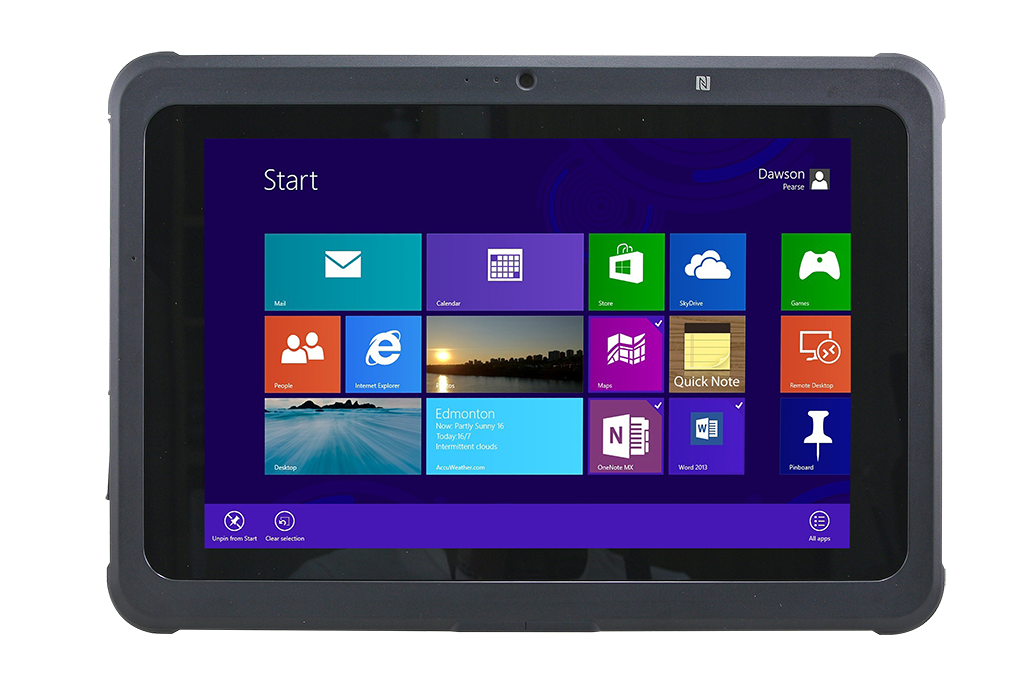

Panel

LCD Size

10.1"

Display Type

WXGA

Resolution

1280 x 800

Luminance

300 cd/m2

Touch Type

10 points projective capacitive

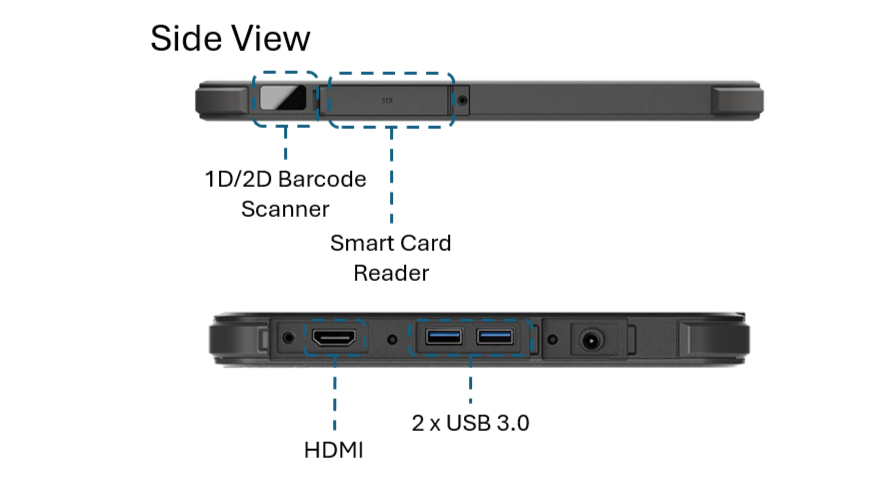

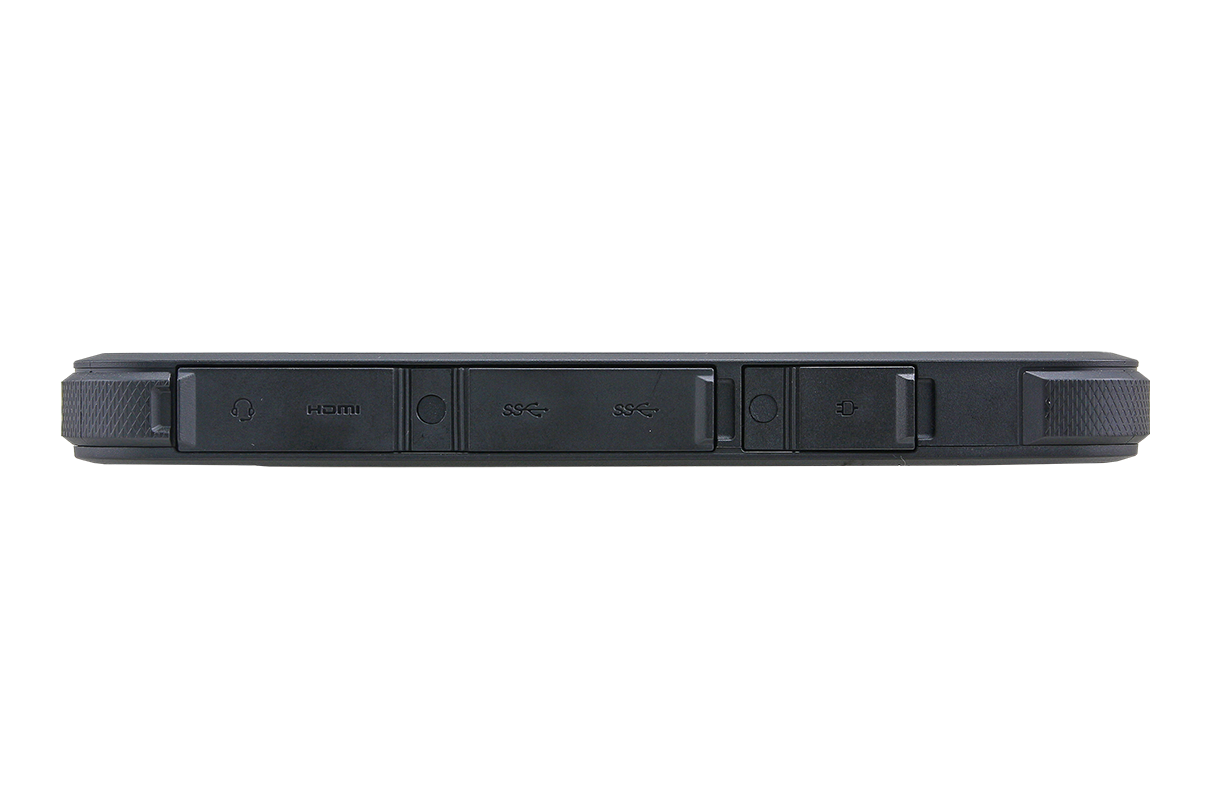

I/O

HDMI

1 x HDMI output

USB Port

2 x USB 3.0 Type A

Other

1 x Audio Jack
1 x Micro SD
1 x DC Jack

System Control

Control Buttons

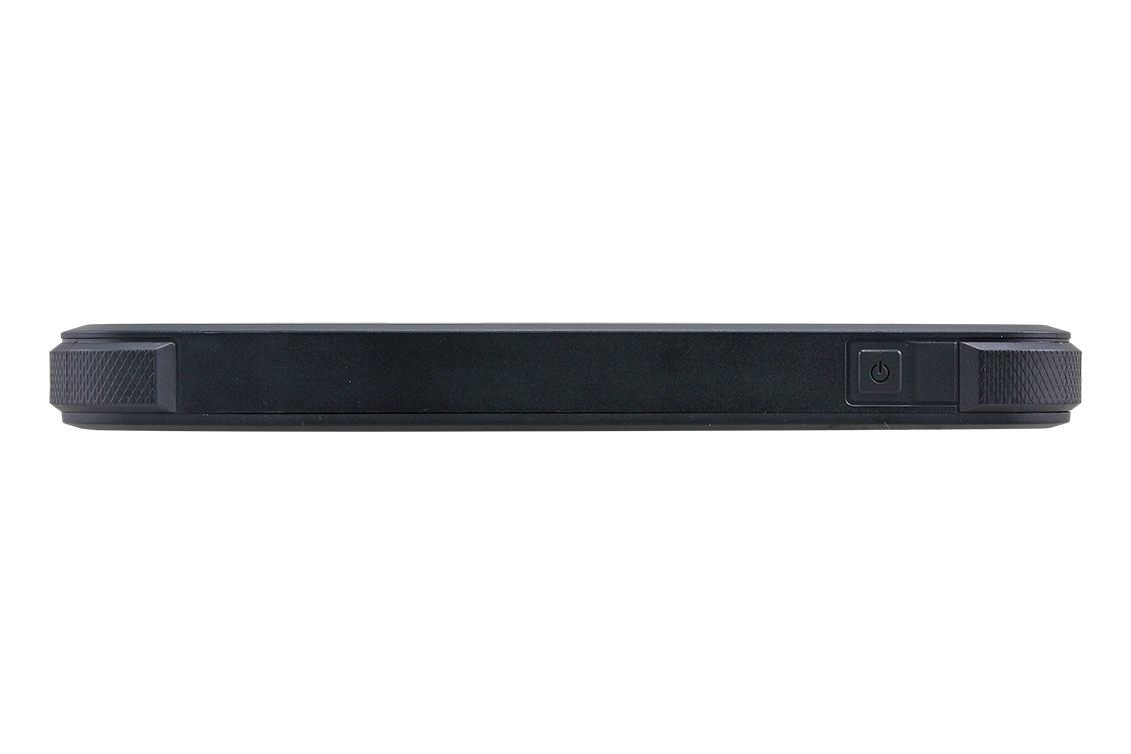

1 x Power button
1 x Barcode scanner trigger

LED Indicator

1 x Power

Data Collection

Barcode Scanner

1D/2D Barcode scanner (optional)

NFC

ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, support MIFARE and Felica

Camera

2MP Front camera

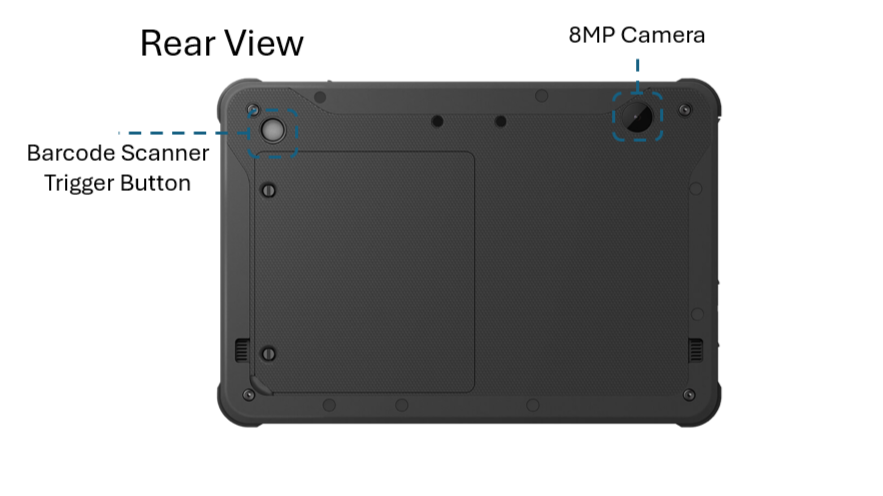

8MP Rear camera with auto focus

Wireless Communication

Bluetooth

Bluetooth 5.0

WLAN

802.11 a/b/g/n/ac

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~104°F)
0°C ~ 30°C (32°F ~ 86°F) without dock or wall mount [EN60601]
0°C ~ 40°C (32°F ~104°F) with dock or wall mount [EN60601]

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Weight

1 kg with Battery

Vibration Test

MIL-STD-810G method 514.6 procedure 1

Shock Test

MIL-STD-810G method 516.6 procedure 1

Drop Test

4-Feet drop on concrete floor, MIL-STD-810G 516.6 procedure IV

IP Rating

IP65

Dimension (W x L x H)

281 x 193.3 x 19.95mm

Fanless

Construction

Rubber + plastic

Component

Adapter

Input: 100~240Vac/50~60 Hz
Output: 65W adaptor (19V@3.15A adaptor)

Microphone

Front microphone

Packing List

1 x CAXA0
1 x Power adapter
1 x Battery

Ordering Information

CAXA0-1000A1-S04R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 8.1
CAXA0-1000A1-S05R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S06R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S07R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S08R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 8.1
CAXA0-1000A1-S10R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 11
CAXA0-1000A1-S11R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 11
CAXA0-1000A1-S12R
10.1"/1280x800/N4200/8GB/128GB/2USB/+19V/Windows 10
CAXA0-DCA1-S03R
CAXA0 Desktop cradle /USB2.0x3/LAN/DC19V, without Adapter
CAXA0-WMA1-S03R
CAXA0 Wall Mount kit /USB2.0x3/LAN/DC19V, without Adapter
CAXA0-CSA1-S01R
Battery charging station for CAXA0, DC19V/65W Adapter
ACC-CAXA0-HS-01R

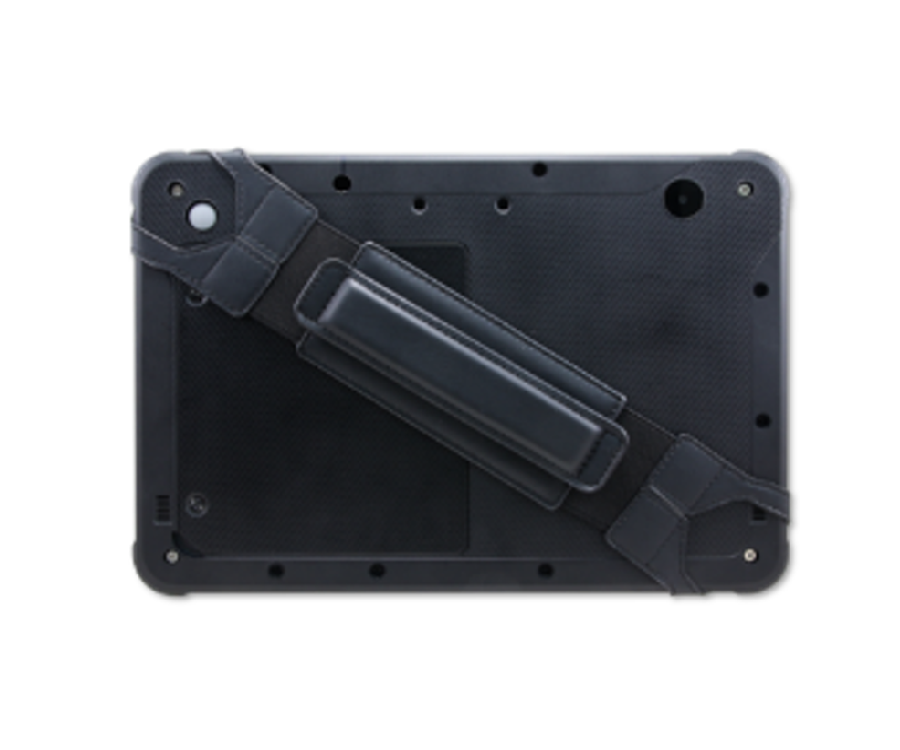

Hand Strap for CAXA0
ACC-CAXA0-SS-01R
Shoulder Strap for CAXA0
ACC-ADP-060M-01R
CAXA0 Medical Adapter
ACC-ADP-065N-01R
CAXA0 ITE Adapter
ACC-CAXA0BAT-02R
CAXA0 Battery
CAXA0 1D / 2D Barcode scanner
EU Power Cord for ACC-ADP-060M-01R E1702031000R
US Power Cord for ACC-ADP-060M-01R E1702031833R
JP Power Cord for ACC-ADP-060M-01R E1702031834R
UK Power Cord for ACC-ADP-060M-01R E170P060380R
EU Power Cord for ACC-ADP-065N-01R E170203183DR
US Power Cord for ACC-ADP-065N-01R E1702031835R
JP Power Cord for ACC-ADP-065N-01R E17120318001R
UK Power Cord for ACC-ADP-065N-01R E170P060370R
