CAXA0-WM

CAXA0 Wall Mount kit

INTRODUCTION

DATASHEET

GET A QUOTE

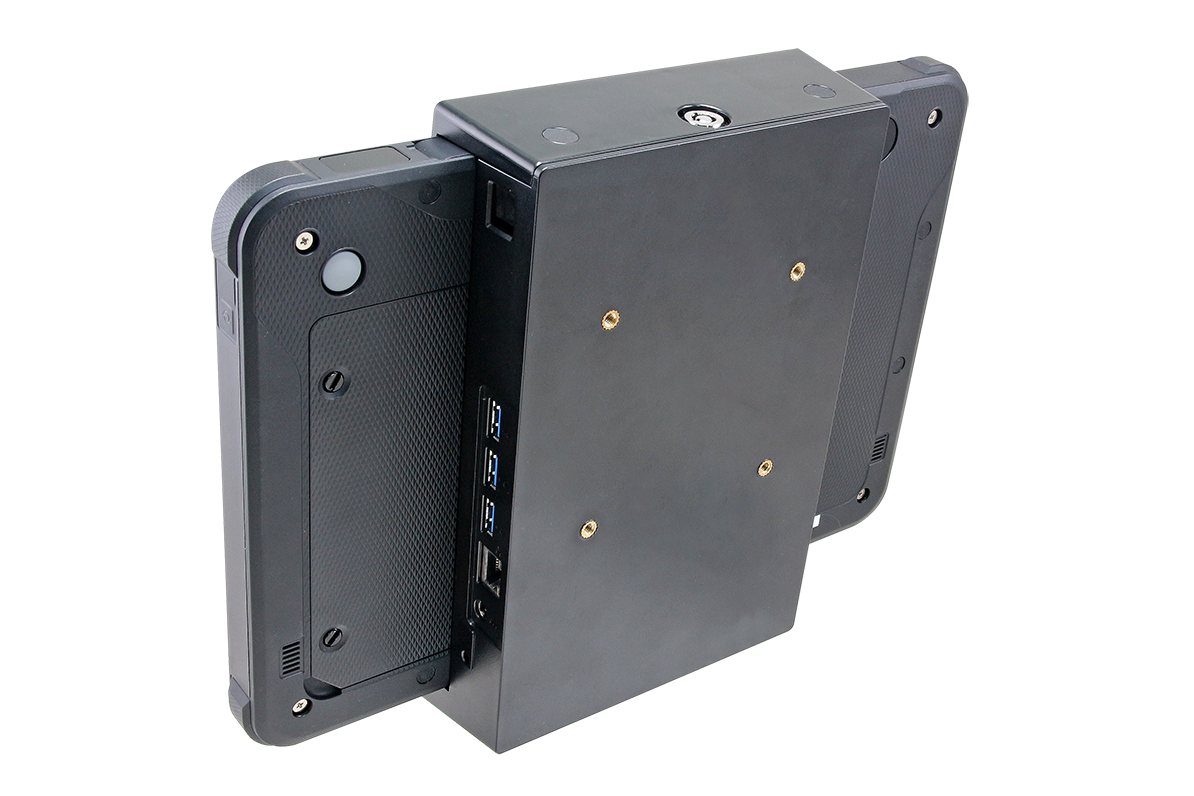

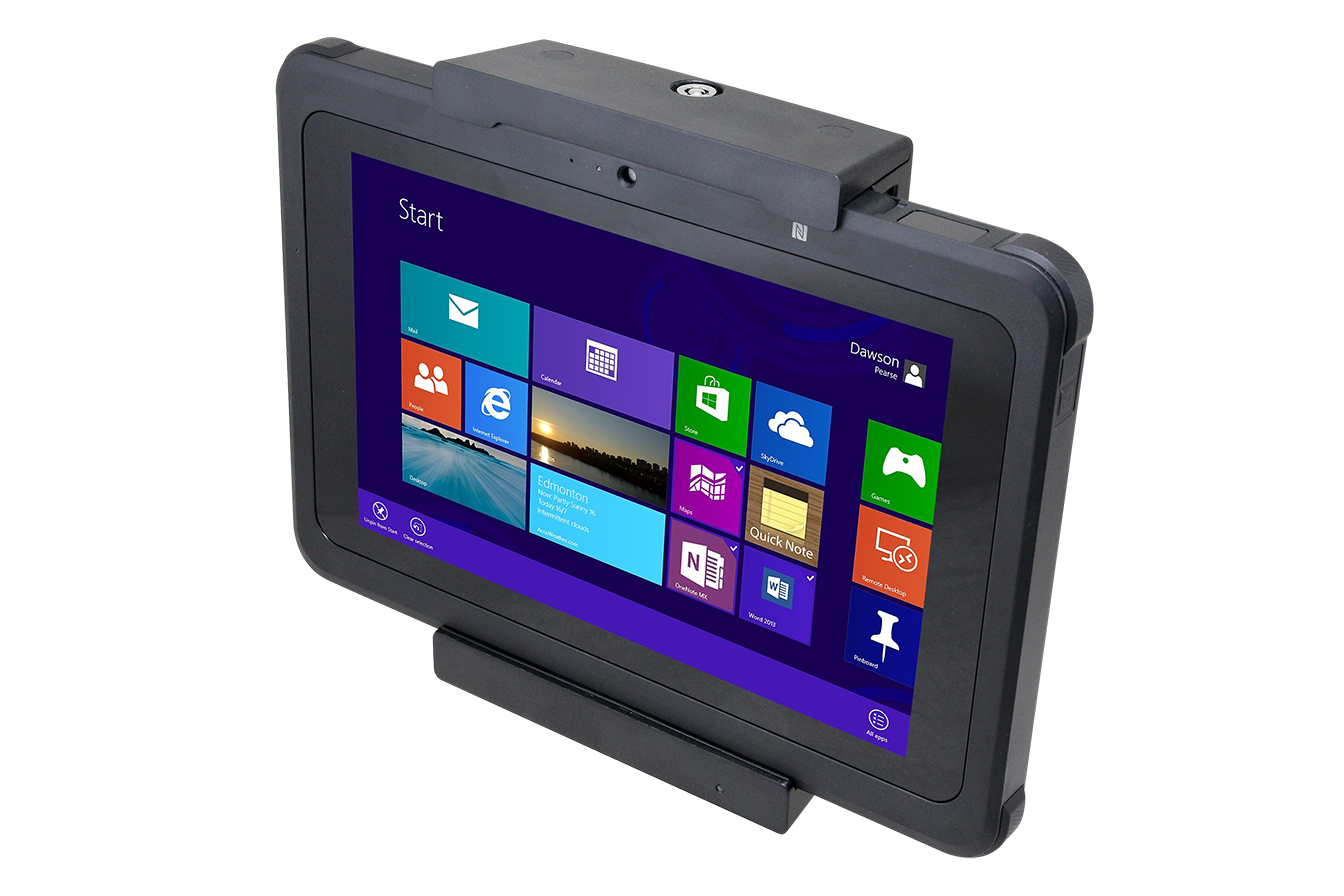

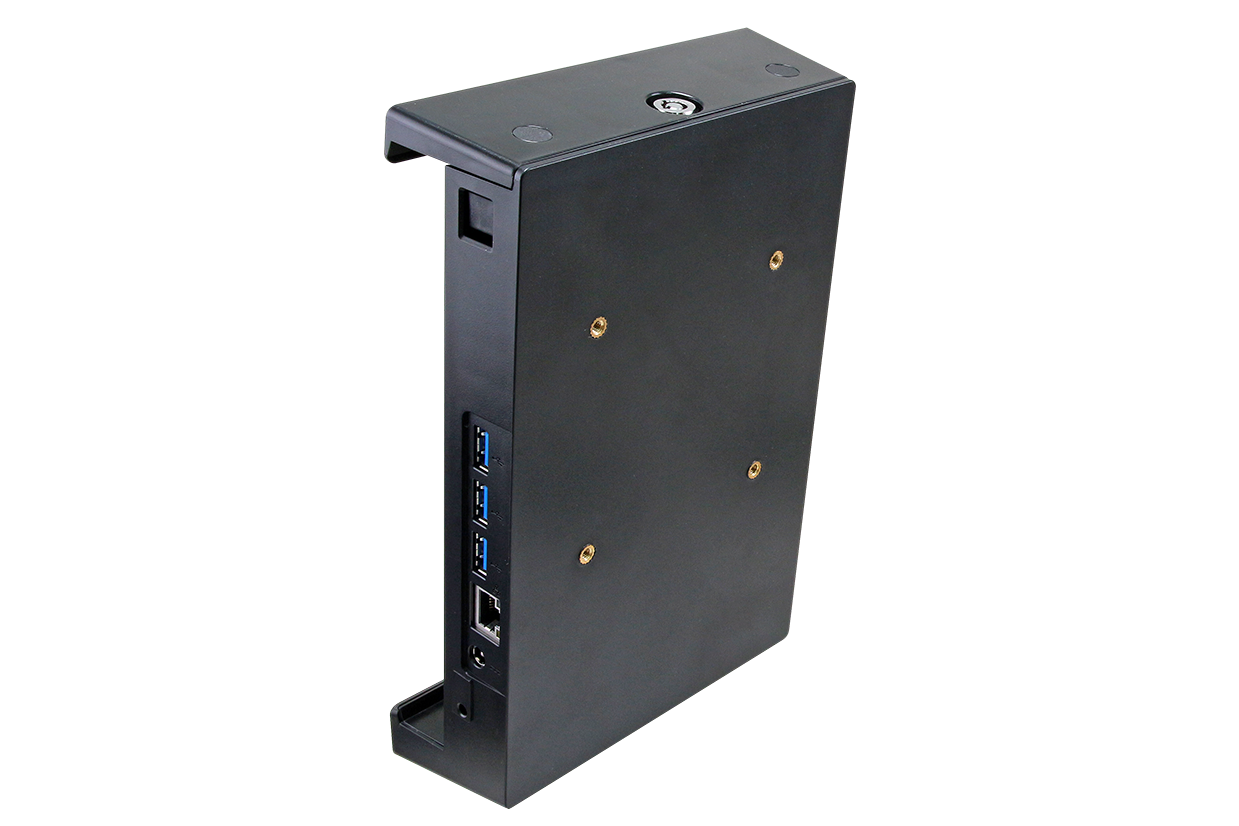

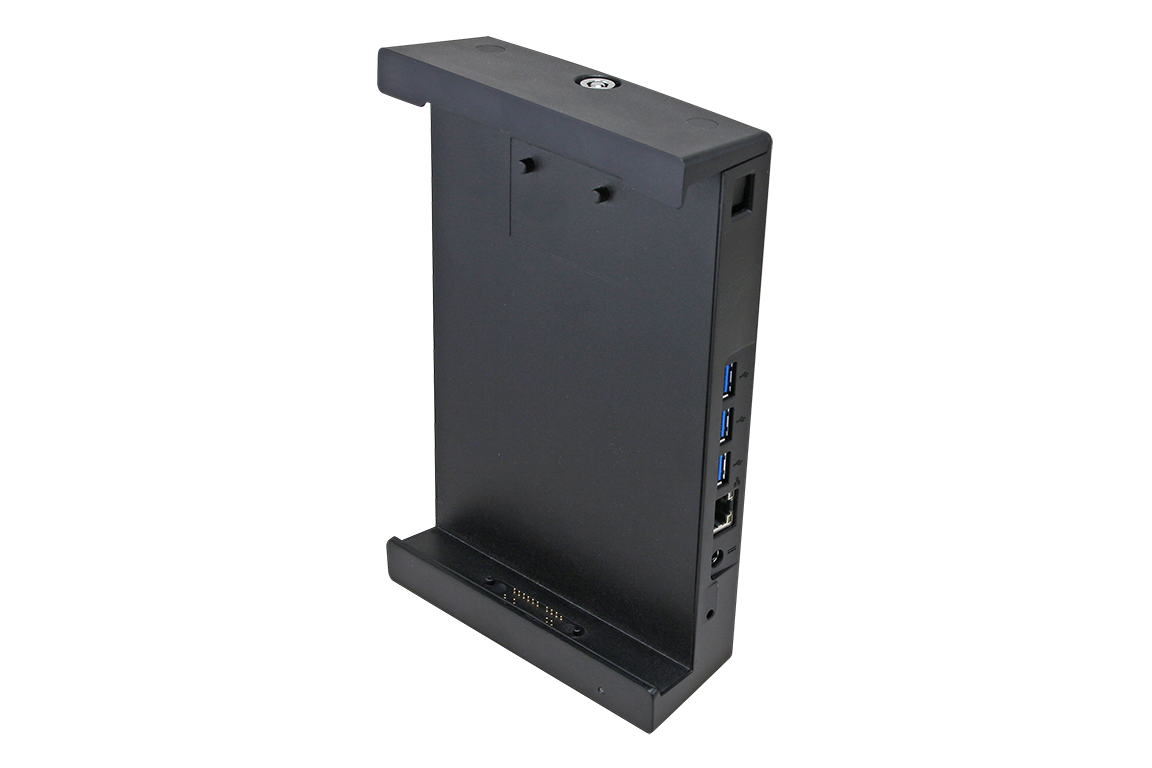

Wall Mount kit for CAXA0

+19V DC input

Support 3 x USB2.0

Support 1 x 10/100 LAN

VESA mount compliant (75 x 75 mm)

Specification
Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

Power Requirement

DC Input Connector

DC Jack

DC Input

+19V

Certification

Certification Information

CE, FCC

External I/O

USB Port

USB 2.0 x3

LAN Port

10/100 LAN x1

System Control

LED Indicator

1 x Tablet link LED indicator

Mechanical & Environmental

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

15%~95% Relative Humidity, Non-Condensing

Storage Humidity

5%~90% Relative Humidity, Non-Condensing

IP Rating

IPX1

Construction

Plastic

Ordering Information

CAXA0-WMA1-S01R
Wall Mount kit for CAXA0 with 3x USB/ 1x 10/100 LAN
