ND63

10.1 inch slim tablet

INTRODUCTION

GET A QUOTE

10.1”, Intel® Alder Lake-N processor N-Series

IEC/EN 60601-1 medical compliance

IEC/EN 60601-1-2 medical compliance

Windows 11 IoT Enterprise; Linux (optional)

Sun light Readable High brightness 800nits LCD display

Support hot-swap battery

15mm ultra slim, 996g light weight, robust design

Specification

Document

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® Alder Lake-N N100 (optional N200)

System Memory

LPDDR5 16GB on board (optional 8GB)

Other

GPS / GLONASSS / GALILEO
Optional Quectel EM06-E (EMEA)
9 Axis MEMS sensor (Accelerometer, eCompass,Gyroscope)
Ambient Light Sensor
Proximity Sensor
Kensington cable lock slot
Optional Windows® Hello

Battery

Backup Battery / Hot swappable battery
Battery: 7.68V, 4170mAh / 32Wh
Battery operation: up to 7 hours
Backup Battey: 7.4V, 142mAh / 1.05Wh

TPM

Firmware Trusted Platform Module (TPM 2.0)
Optional Hardware TPM

Camera

2MP front camera (Win 10 Hello optional)
8MP rear camera, Auto Focus, Flash

Storage

256GB SSD (optional 512GB or 1TB)

Display

Spec. & Resolution

10.1", 16:10 ratio 1920x1200 IPS 800 nits Sunlight readable

Audio

Speaker Output

2 x 2W Speaker
2 x Digital microphone
3.5mm Audio jack

Ethernet

LAN Port

1 x RJ45 Gigabit Ethernet Port

Power Requirement

Power Type

Battery: 7.68V, 4170mAh / 32Wh
Backup Battey: 7.4V, 142mAh / 1.05Wh

Battery

Hot swappable battery

Battery Operating Time

up to 7 hours

Software Support

Windows11 pro
Window 10 IoT enterprise

Certification

Certification Information

MIL-STD-810G (Multiple 5'/1.5m Drops)
IP65
CE
FCC

Specification

Dimension

11.1" x 7.6" x 0.6" (283mm x 192mm x 15mm)

In-Box Accessory

Accessory

AC Adapter Type C 65W
Screen protector, D-ring ( upper *2)
Power cord

External I/O

LED Indicator

Power, Battery, WIFI

Panel

Touch Type

10-point multi-touch, support glove mode and wet-touch mode

I/O

HDMI

HDMI™ Micro Connector

USB Port

1 x USB 3.1 Gen1 Type A
1 x USB 3.1 Gen1 Type C

Expansion

SIM Card Reader (Nano)
SDXC Card Reader (Micro)

Other

Docking connector

System Control

Control Buttons

5 Physical buttons (power, vol+, vol-, 2 x programmable keys)

LED Indicator

Power, Battery, WIFI

Data Collection

Barcode Scanner

Optional 1D/2D Barcode Reader

Wireless Communication

Bluetooth

Bluetooth® 5.2

Mechanical

Weight

990g without screen protector

Mechanical & Environmental

Operating Temp.

-10°C ~ 50°C

Optional Items

Type C PD-in Adaptor 65W (20V/ 3.25A)
Digitizer Pen

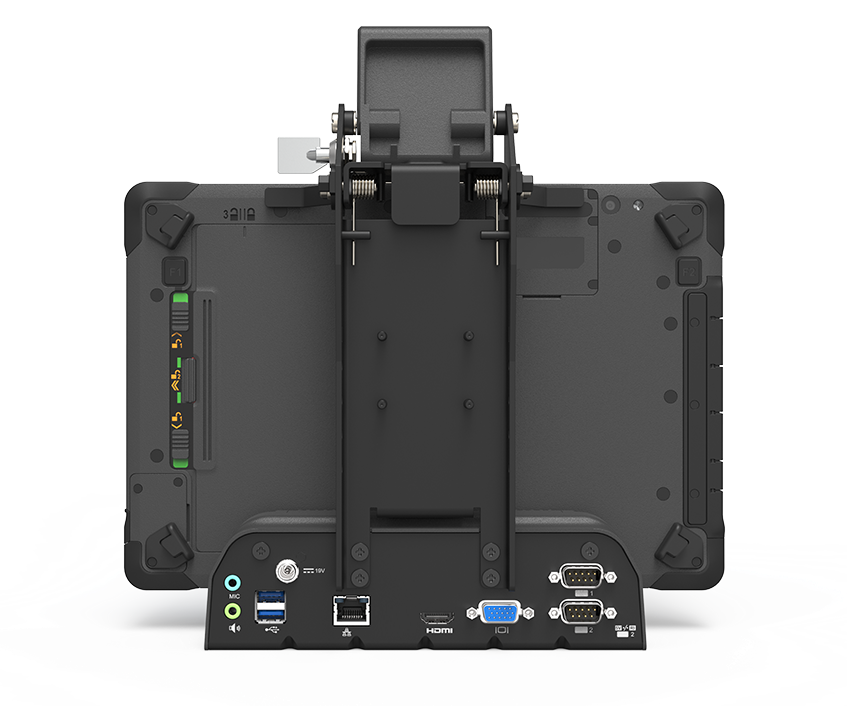

Vehicle Dock

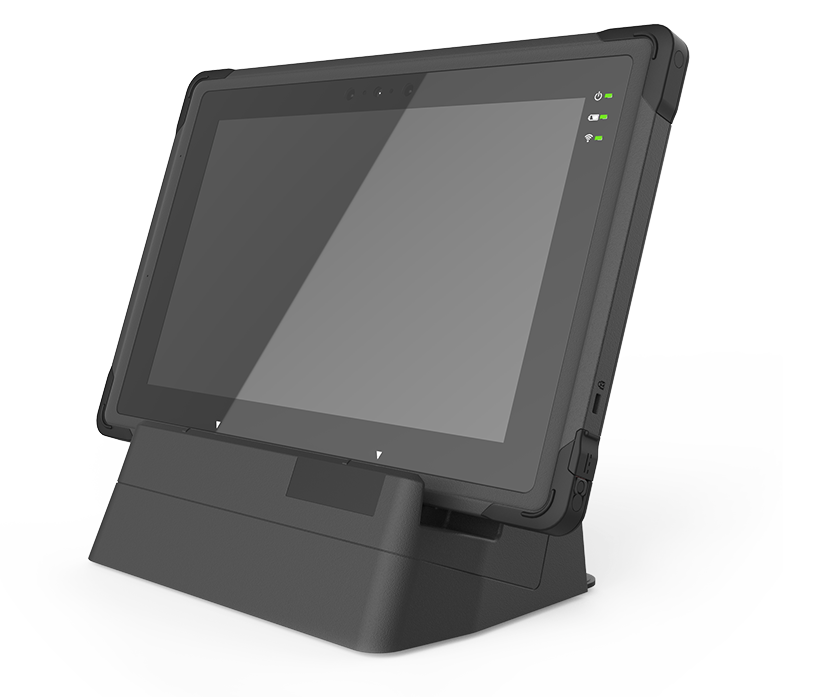

Office Dock

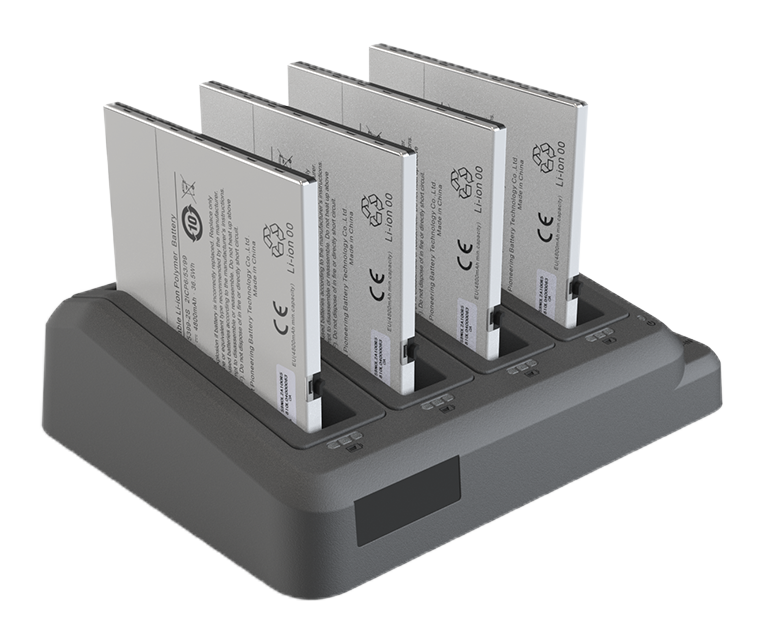

Battery Charger
Larger Capacity Battery 7.6V, 5000mAh/38Wh

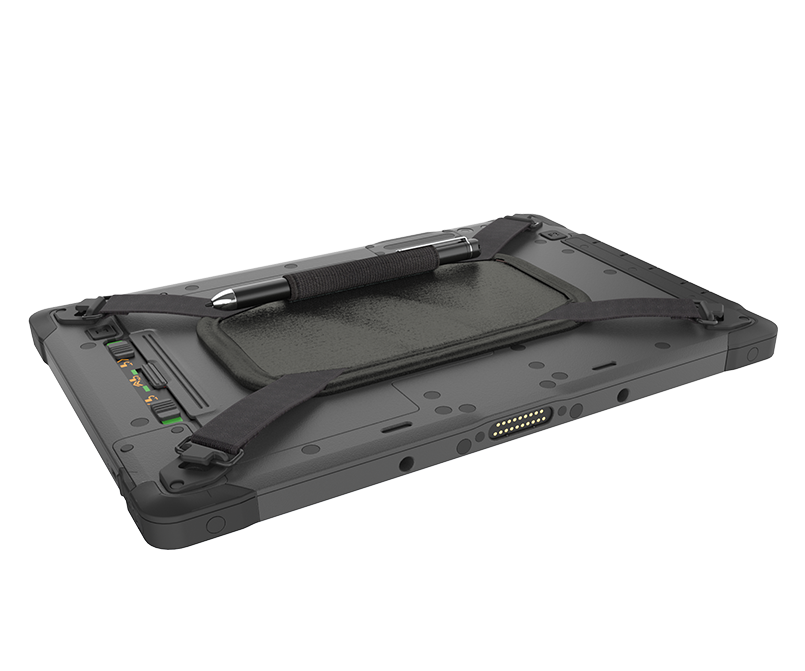

Hand Strap
Breif Case Handle
Shoulder Strap
VESA Mount Kit
Snap Mount Kit

Ordering Information

ND63-1000A1-S01R
10.1"/1920x1200/N100/16GB/256GB/2USB/CAM/LAN/WIFI6E/BT5.2/Windows 11 IoT
