RCC-MM-GMD23G-01R

RCC-MS-GMD23G-01R

23.8" FHD Medical Monitor For General Clinical Usage

INTRODUCTION

DATASHEET

GET A QUOTE

Front full flat IP65 cover for easy disinfection

VESA 100 mounting for easy instrument integration (endo-tower/wall/surgical light)

Optional AG multi-touch PCAP for intuitive operation as cost- effective HMI

Efficient power management by Energy Star Compliance

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

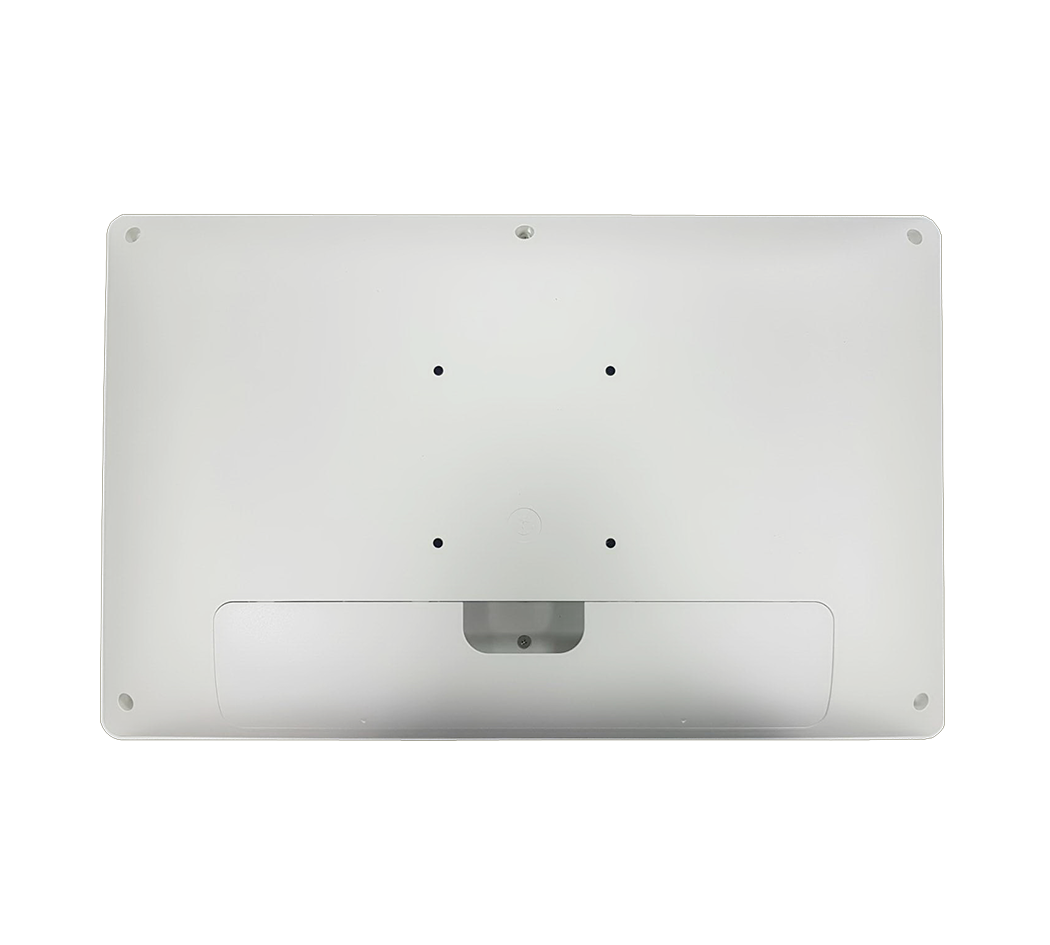

VESA 100 Mounting

Supports quick and secure installation on endoscopy towers, surgical lights, or wall mounts

Optional AG Multi-Touch PCAP Touch

Provides responsive, anti-glare touch control for intuitive operation, serving as a cost-effective human–machine interface (HMI) in surgical and diagnostic environments

Energy Star Compliant Power Management

Optimizes energy usage without compromising performance, reducing operational costs and supporting environmentally responsible practices

Device Applications

Flexible Clinical Integration – Supports mounting on surgical lights, walls, or endoscopy towers for optimal positioning, allows quick reconfiguration between different setups, and facilitates seamless integration with existing medical devices and systems.

Interactive Control Interfaces – Enables clinicians and technicians to operate imaging, navigation, and system settings directly from the display, improving workflow efficiency during procedures.

Product Specification

Expand the section to view detailed technical specifications and features of the product.

LCD

Screen Size

23.8"

Resolution

1920 x 1080

Luminance (Typ.)

AG glass 230 cd/m²
AG PCAP 210 cd/m² (optional)

Contrast Ratio (Typ.)

3000:1

Viewing Angle

178°/ 178°

Display Color

16.7M

DICOM Compliant

Barten curve (optional)

Gamma

1.8/2.0/2.2/2.4/linear

AG Protection Glass

Yes

Response Time

16 ms

Backlight

LED

Touchscreen

Optional 10-point PCAP

Color & Picture Mode

Color Temperature

Cool/neutral/warm/user

Calibration Mode

Communication protocol is ready to calibrate the monitor through
DDC CI (optional)

Video Input

VGA

1 x VGA

DVI

1 x DVI

HDMI

1 x HDMI

1 x DisplayPort

Function Key & Indicator

Function Key

Sensor keys multi-language OSD:
contrast, brightness, auto adjust, clock, phase, color
temp, hor position, ver position, input select , key lock

LED Indicator

1 x Power indicator

Audio

Speaker Output

2 x 0.5W Speaker

Power Requirement

Power Input

24V DC

Adapter

Medical grade
Input: 100 ~ 250Vac/ 50 ~ 60Hz
Output: 90W (24V/3.75A) adapter

Power Consumption

On:<40W; active off: <5W

Power Management

EPA Energy Star compliant

Certification

Safety

FCC Class B,
IEC/EN 60601-1, IEC/EN 60601-2
cTUVus certified(ANSI/AAMI ES60601-1, CSA C22.2 NO.60601-1)

Image Quality

DIN6868-157 compliant (optional)

Mechanical & Environmental

Dimension (mm)

587.0 x 367.5 x 59.5

Weight (kg)

6.8

Mounting

VESA 100 x 100

IP Rating

Front: IP65
Whole unit: IPX1

Construction

Plastic

Design Document

No.

Title

Description

Operating System

Release Date

Download

RCC-MM-GMD23G-01R_Drawing

2024.07.17
