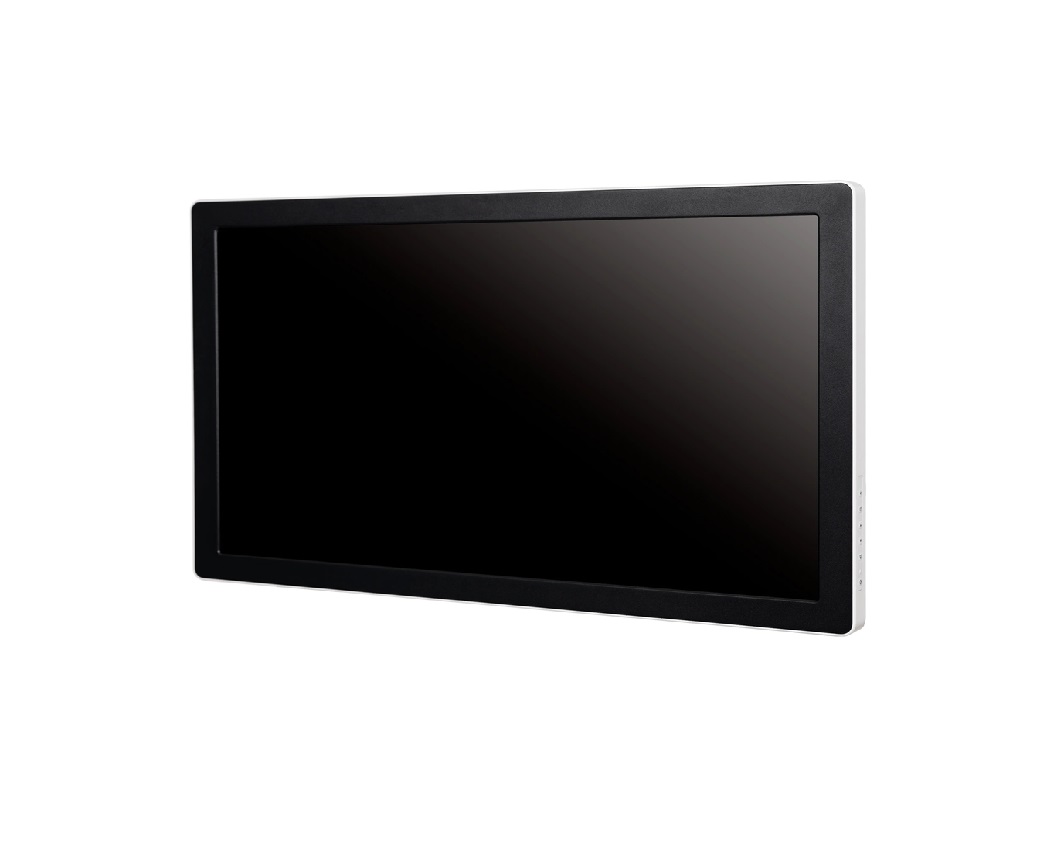

27 inch FHD medical monitor

RCC-MS-GMD27G-01R

27" FHD Medical Monitor with High Brightness

INTRODUCTION

DATASHEET

GET A QUOTE

930 nits high brightness with exceptional clarity for ultrasound/endoscopy system

Front full flat IP65 cover for easy disinfection

VESA 100 mounting for easy installation on endo-tower/wall/surgical light

Meet DICOM/Gamma/DIN6868-157 standard ensures display quality

High Dynamic Range technology displays the image details to assist clinical decision

Efficient power management by Energy Star Compliance

Introduction

Specification

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

930 nits High Brightness with Exceptional Clarity

Delivers vivid, detailed images even in high ambient light conditions, ensuring accurate visualization and reliable performance

Meets DICOM, Gamma, and DIN 6868-157 standards

Ensures consistent brightness, accurate grayscale, and precise image reproduction

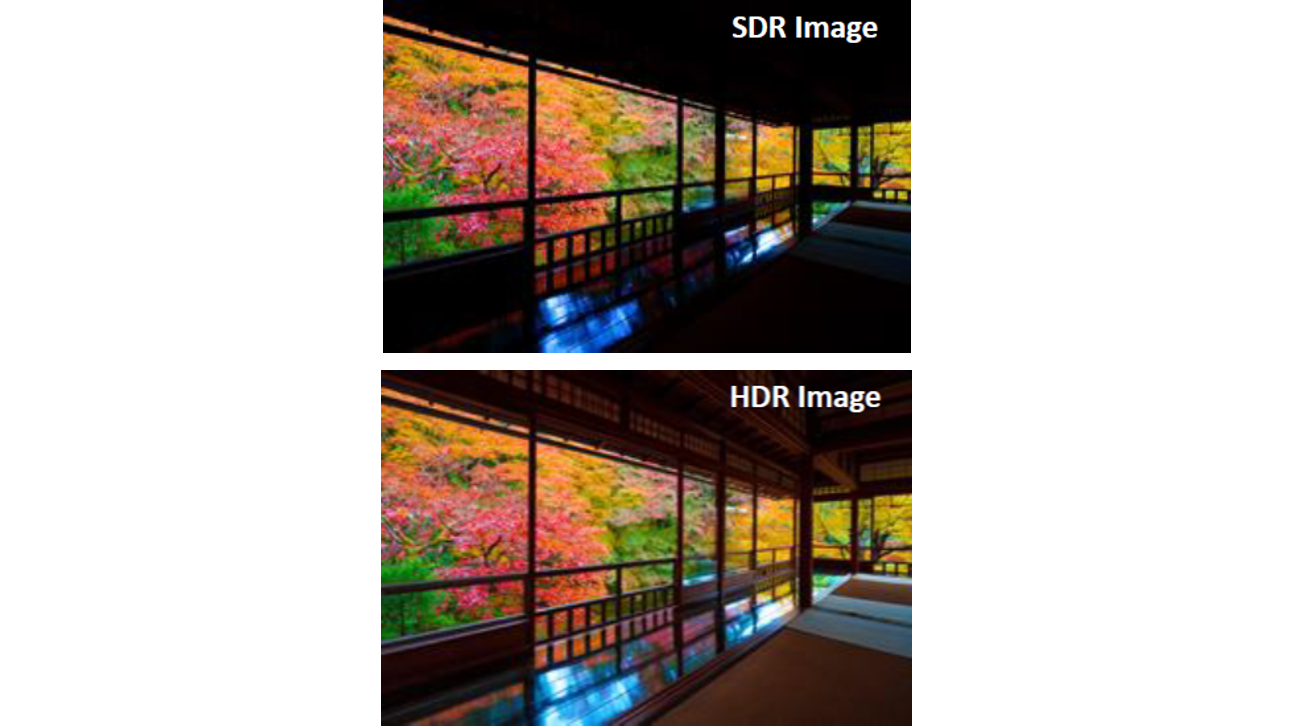

High Dynamic Range (HDR) Technology

Delivers enhanced contrast and brighter highlights compared to Standard Dynamic Range (SDR) ensuring critical detail are visible in surgical and diagnostic images

Device Applications

Brightly Lit Clinical Environments – 930 nits high brightness ensures crisp, detailed images even under strong surgical lights, enabling clinicians to maintain accurate visualization of ultrasound and endoscopy images

Radiology Reading Rooms & Endoscopy Suites – Compliance with DICOM, Gamma, and DIN 6868-157 standards ensures precise grayscale rendering, consistent brightness, and accurate color saturation for reliable interpretation across imaging and endoscopic modalities

High-Precision Surgical Visualization – HDR technology enhances contrast and preserves critical detail in bright and shadowed areas of the image, helping surgeons identify subtle structures during minimally invasive or complex procedures.

Product Specification

Expand the section to view detailed technical specifications and features of the product.

LCD

Screen Size

Resolution

1920 x 1080

Luminance (Typ.)

AR glass 930 cd/m²
AG PCAP 850 cd/m² (optional)

Contrast Ratio (Typ.)

1000:1

Viewing Angle

178°/ 178°

Display Color

1.07B

DICOM Compliant

Ambient light 0/0.5/1/1.5/2/2.5/3 nits (optional)

Gamma

1.8/2.0/2.2/2.4/linear

Response Time

14 ms

Backlight

LED

Touchscreen

Optional 10-point PCAP

Color & Picture Mode

Color Temperature

Cool/neutral/warm/user

Calibration Mode

Communication protocol is ready to calibrate the monitor through USB (optional)

Video Input

VGA

1 x VGA

DVI

1 x DVI

HDMI

1 x HDMI

1 x DisplayPort

Function Key & Indicator

Function Key

Sensor keys multi-language OSD:
contrast, brightness, auto adjust, clock, phase, color
temp, hor position, ver position, input select , key lock

LED Indicator

1 x Power indicator

Audio

Speaker Output

2 x 2W speaker

Power Requirement

Power Input

24V DC

Adapter

Medical grade
Input: 100 ~ 250Vac/ 50 ~ 60Hz
Output: 90W (24V/3.75A) adapter

Power Consumption

On:<60W; active off: <5W

Power Management

EPA Energy Star compliant

Certification

Safety

FCC B, VCCI, IEC/EN60601-1, IEC/EN60601-1-2

Image Quality

DIN6868-157 compliant (optional)

Mechanical & Environmental

Dimension (mm)

660.2 x 408.8 x 65.8

Weight (kg)

Mounting

VESA 100 x 100

IP Rating

Front: IP65
Whole unit: IPX1

Construction

Front: metal
Back: plastic
