27_inch_4k_medical

RCC-MS-GMD27G-03R

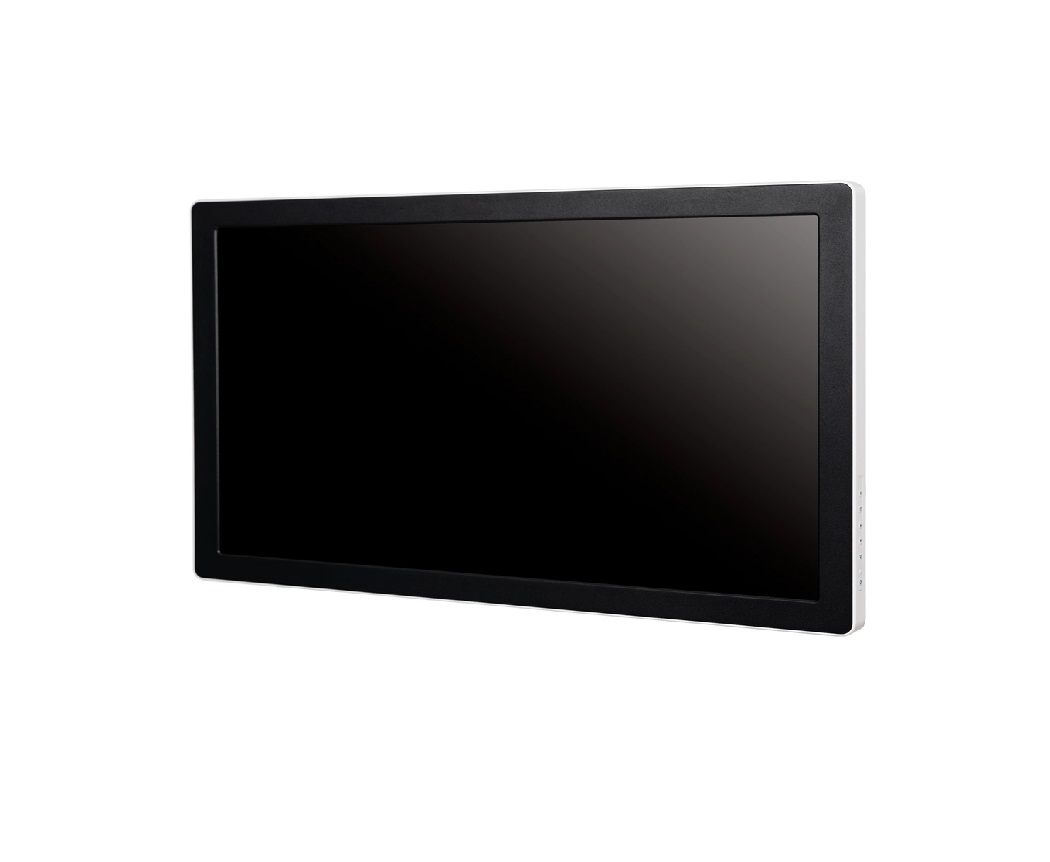

27" 4K Medical Display with Color Calibration & Video Output Option

INTRODUCTION

DATASHEET

GET A QUOTE

4K high resolution and 740 nits brightness for exceptional imaging clarity

Color calibration and optional 3G-SDI interface for precise endoscopy imaging

Front full flat IP65 cover for easy disinfection

Meet DICOM/Gamma/DIN6868-157 standard ensures display quality

VESA 100 mounting for easy installation on endo-tower/wall/surgical light

Display layout adjustable (PIP & PBP) for comparison of multi-modality images

High Dynamic Range technology displays the image details to assist clinical decision

Efficient power management by Energy Star Compliance

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

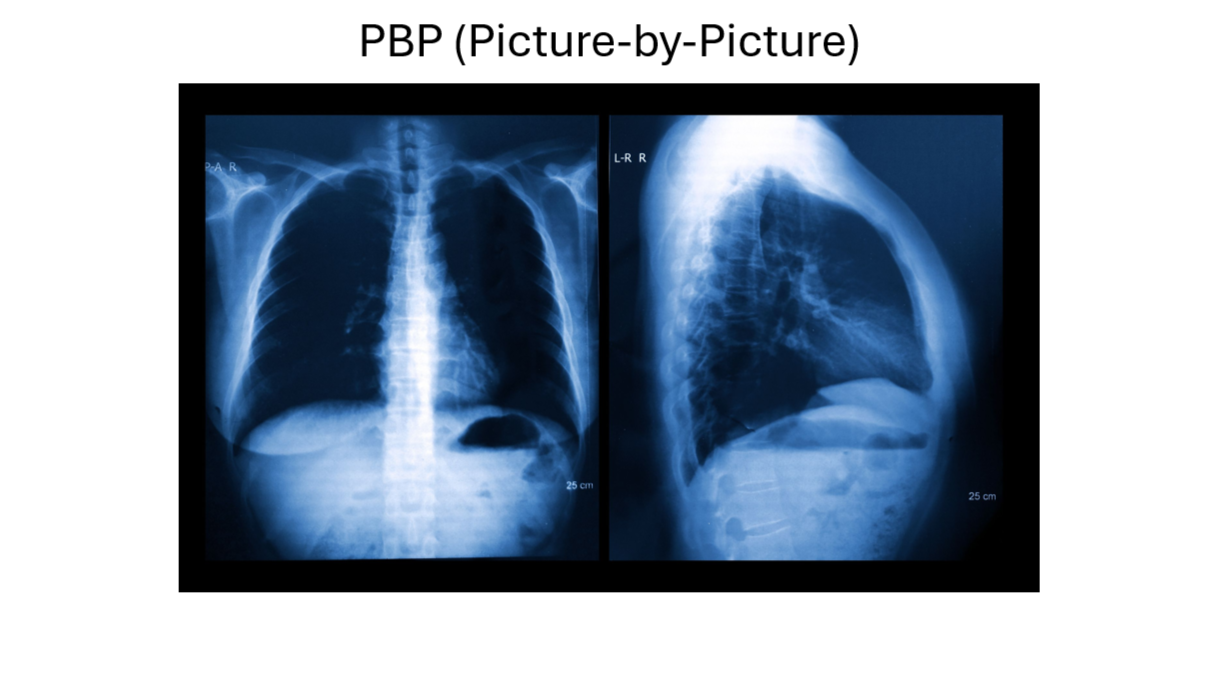

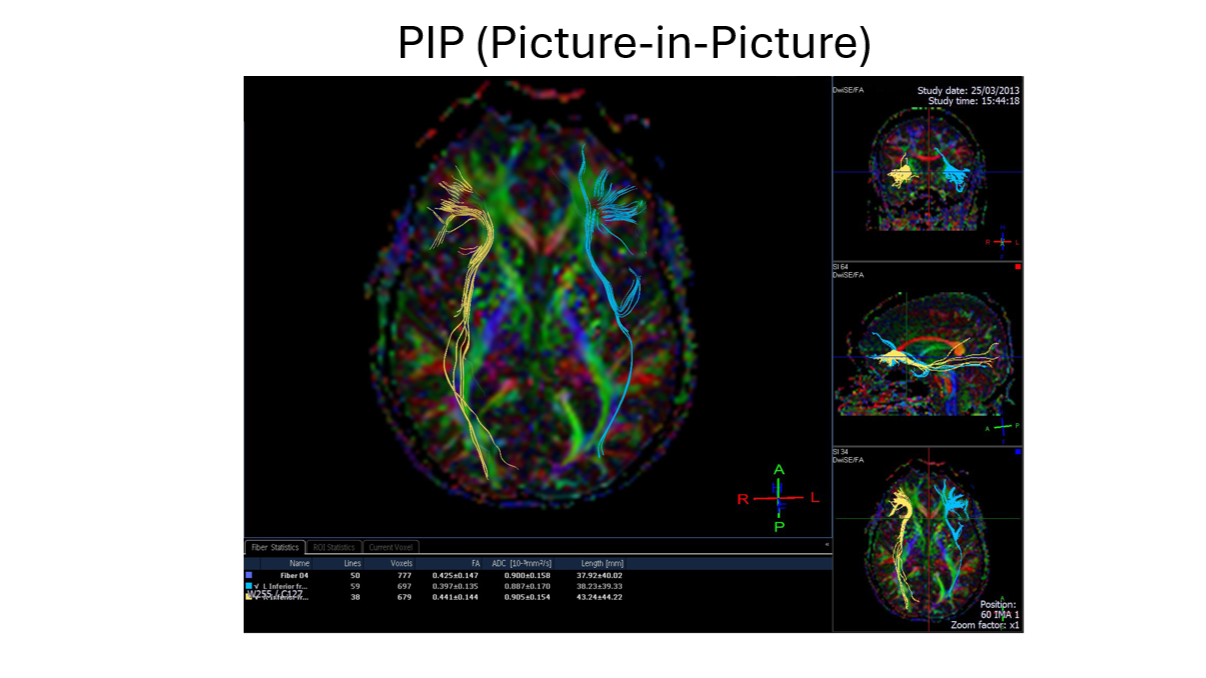

Adjustable Display layout - PIP/PBP

Allows clinicians to view multiple image sources simultaneously such as live surgical video, patient vitals, imaging scans

Meets DICOM, Gamma, and DIN 6868-157 standards

Ensures consistent brightness, accurate grayscale, and precise image reproduction

High Dynamic Range (HDR) Technology
Provides enhanced contrast and brighter highlights, making subtle differences in tissue and structure more visible during surgical and diagnostic procedures

Device Applications

Operating Rooms (ORs) – For displaying multiple surgical video feeds, patient vitals, and imaging scans simultaneously utilizing the PIP/PBP feature.

Radiology Reading Rooms & Endoscopy Suites – Compliance with DICOM, Gamma, and DIN 6868-157 standards ensures precise grayscale rendering, consistent brightness, and accurate color saturation for reliable interpretation across imaging and endoscopic modalities

High-Precision Surgical Visualization – HDR technology enhances contrast and preserves critical detail in bright and shadowed areas of the image, helping surgeons identify subtle structures during minimally invasive or complex procedures.

Product Specification

Expand the section to view detailed technical specifications and features of the product.

LCD

Screen Size

27"

Resolution

3840 x 2160

Luminance (Typ.)

AR glass 740 cd/m²
AG PCAP 710 cd/m² (optional)

Contrast Ratio (Typ.)

1000:1

Viewing Angle

178°/ 178°

Display Color

1.07B

DICOM Compliant

Ambient light 0/0.5/1/1.5/2/2.5/3 cd/m2 (optional)

Gamma

1.8/2.0/2.2/2.4/linear

Response Time

16 ms

Backlight

LED

Touchscreen

Optional 10-point PCAP

Color & Picture Mode

Color Temperature

cool/neutral/warm/user

Calibration Mode

Communication protocol is ready to calibrate the monitor through USB

Picture Mode

PIP/PBP

Video Input

VGA

1 x VGA

DVI

1 x DVI (HDMI 1.4)

HDMI

1 x HDMI 2.0

1 x DisplayPort 1.2a

3G-SDI

1 x 3G-SDI (optional)

Video Output

3G-SDI

1 x 3G-SDI (optional)

I/O

USB

1 x USB Hub (for calibration)

Function Key & Indicator

Function Key

8 x Sensor key:
TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

LED Indicator

1 x Power indicator

Audio

Speaker Output

2 x 2W speaker

Power Requirement

Power Input

24V DC

Adapter

Medical grade
Input: 100 ~ 250Vac/ 50 ~ 60Hz
Output: 150W (24V/6.25A) adapter

Power Consumption

On:<90W; active off: <5W

Power Management

EPA Energy Star compliant

Certification

Safety

FCC B, IEC/EN60601-1, IEC/EN60601-1-2
UL/cUL(ANSI/AAMI ES60601-1:2005+A1, CAN/CSA C22.2 NO.60601-1:14)

Image Quality

DIN6868-157 compliant

Mechanical & Environmental

Dimension (mm)

660.2 x 408.8 x 52.9

Weight (kg)

7.5

Mounting

100 x 100

IP Rating

Front: IP65
Whole unit: IPX1

Construction

Metal

Design Document

No.

Title

Description

Operating System

Release Date

Download

RCC-MM-GMD27G-02R_Drawing

2025.05.08
