65_inch_4k_medical

RCC-MS-GMD65G-01R

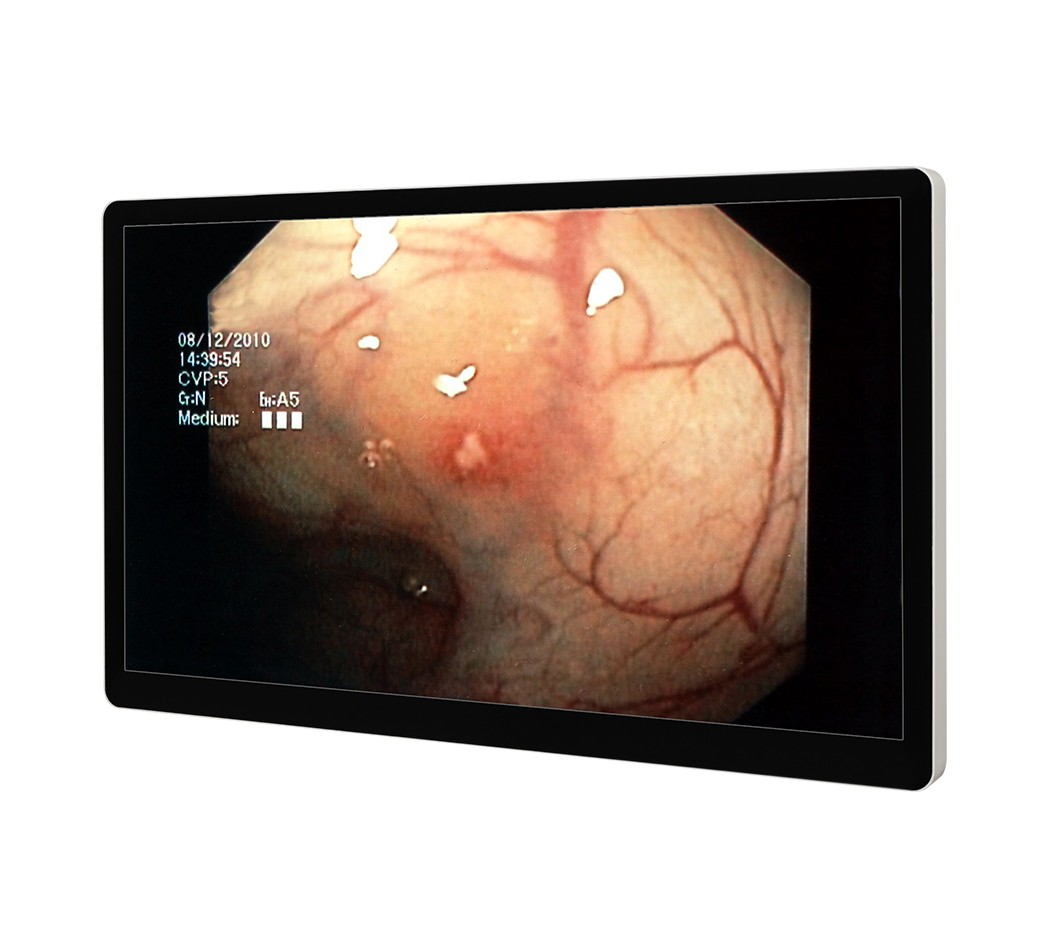

65" 4K Medical Monitor with Quad-mode Layout & High-Resolution Loop-Through Output

INTRODUCTION

DATASHEET

GET A QUOTE

Display layout adjustable (PIP/PBP/Quad) for synchronizing multiple imaging in one screen multi-modality images

DP & DVI video output interface allows video loop-through output for flexible surgery room applications

Optional 12G/3G-SDI interface (in/out) for high-resolution imaging visualization & loop-through output

Front full flat IP65 cover for easy disinfection

Efficient power management by Energy Star Compliance

Introduction

Specification

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

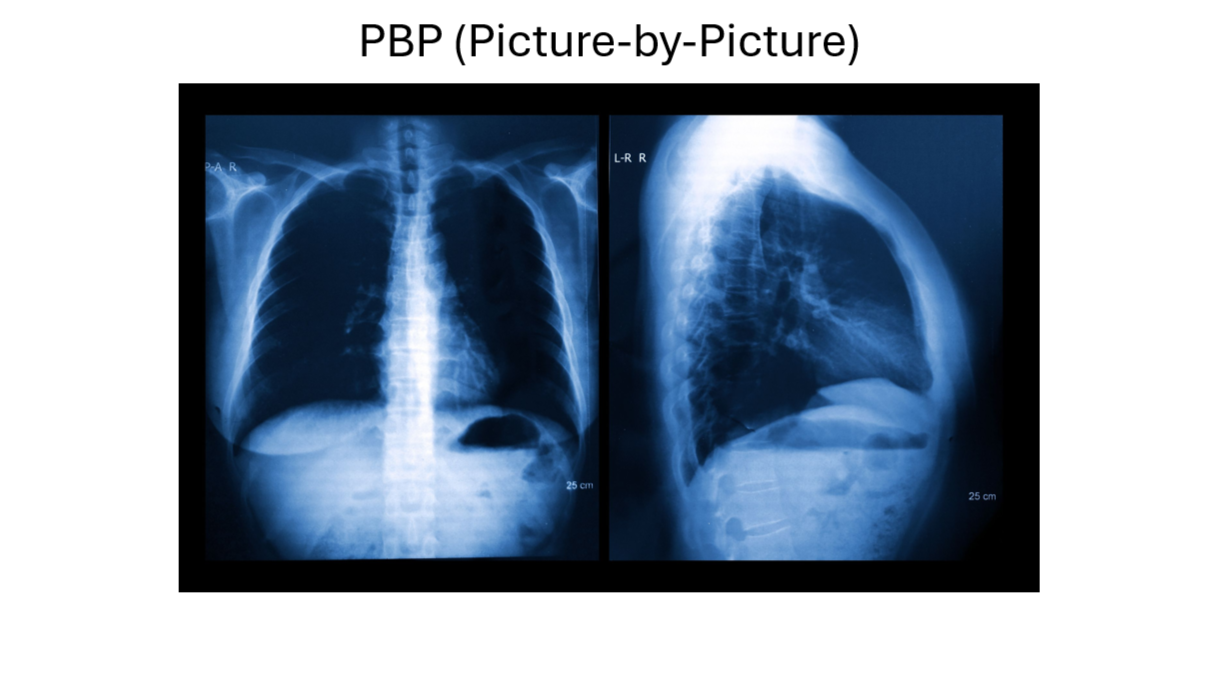

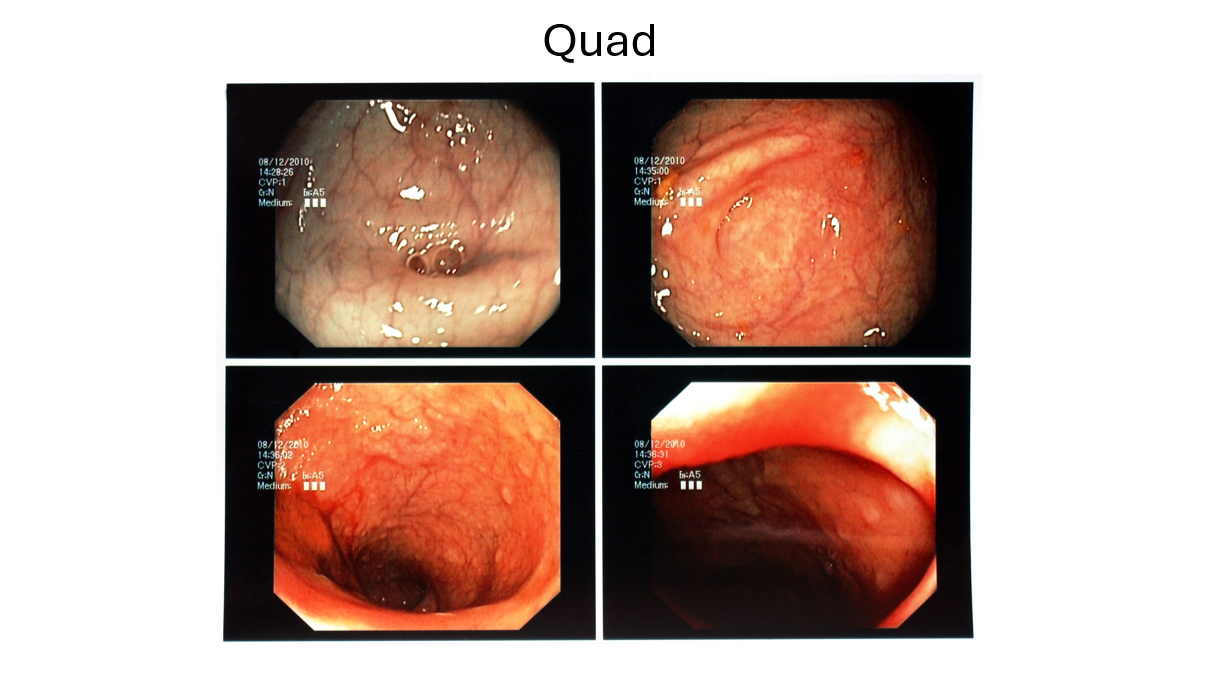

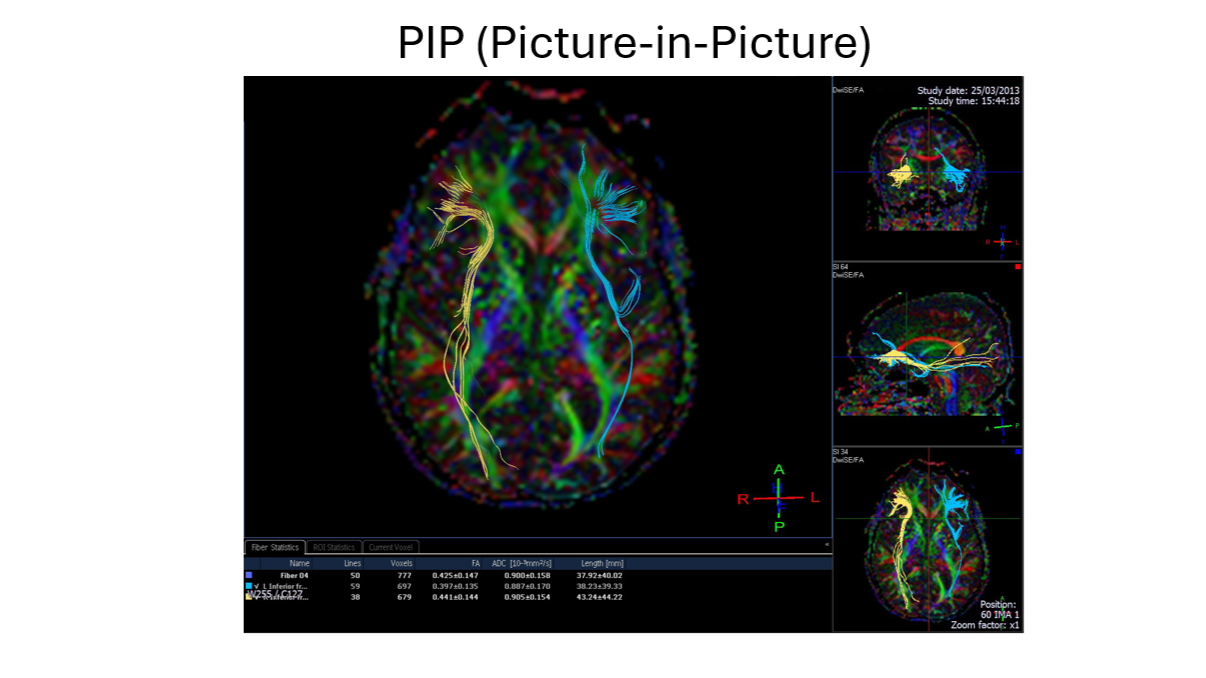

Adjustable Display layout - PIP/PBP/QUAD

Allows clinicians to view multiple image sources simultaneously such as live surgical video, patient vitals, imaging scans

DP and DVI video output interface

This ensures interoperability with both modern and older devices, reducing the need for converters and minimizing latency

Optional 12G/3G-SDI interface (in/out)

Delivers HD and 4K Video with low latency, secure locking connectors, and noise-resistant transmission for surgical and diagnostic applications

Device Applications

Operating Rooms (ORs) – For displaying multiple surgical video feeds, patient vitals, and imaging scans simultaneously utilizing the PIP/PBP/QUAD feature.

Advanced Imaging Review Rooms – For displaying multiple synchronized views of a scan in PIP mode, enabling clinicians in fields like radiology, oncology, or neurology to analyze from different perspectives in real time

Telemedicine Diagnostic Hubs – For showing remote imaging scans alongside live patient video and real-time vital signs during specialist consultations.

Product Specification

Expand the section to view detailed technical specifications and features of the product.

LCD

Screen Size

65"

Resolution

3840 x 2160

Luminance (Typ.)

AG glass 460 cd/m²
AG PCAP 440 cd/m² (optional)

Contrast Ratio (Typ.)

4000:1

Viewing Angle

178°/ 178°

Display Color

1.07B

DICOM Compliant

Barten curve (optional)

Gamma

1.8/2.0/2.2/2.4/linear

Response Time

8.5 ms

AG Protection Glass

Yes

Backlight

LED

Touchscreen

Optional 10-point PCAP

Color & Picture Mode

Color Temperature

Cool/neutral/warm/user

Calibration Mode

Communication protocol is ready to calibrate the monitor through USB (optional)

Picture Mode

PIP/PBP/Quad Mode

Video Input

VGA

1 x VGA

DVI

1 x DVI (HDMI 1.4)

HDMI

1 x HDMI 2.0

2 x DisplayPort1.2a

3G-SDI

1 x 3G-SDI (optional)

12G-SDI

1 x 12G-SDI (optional)

Video Output

DVI

1 x DVI (HDMI 1.4)

1 x DisplayPort

3G-SDI

1 x 3G-SDI (optional)

12G-SDI

1 x 12G-SDI (optional)

I/O

USB

1 x USB (for calibration or maintenance)

RS-232

1 x RS-232 (for calibration or maintenance)

Function Key & Indicator

Function Key

8 x Sensor key:
TOUCH DISABLED/SOURCE/PIP/SWAP/MENU/-/+/POWER

LED Indicator

1 x Power indicator

Power Requirement

Power Input

100-240V AC

Power Consumption

On:<350W; active off: <20W

Power Management

EPA Energy Star compliant

Certification

Safety

FCC, VCCI, EN60601-1, ed 3.2 ; EN60601-1-2, ed 4.1

Mechanical & Environmental

Dimension (mm)

1521 x 945 x 59.5

Weight (kg)

Mounting

VESA 600 x 400
