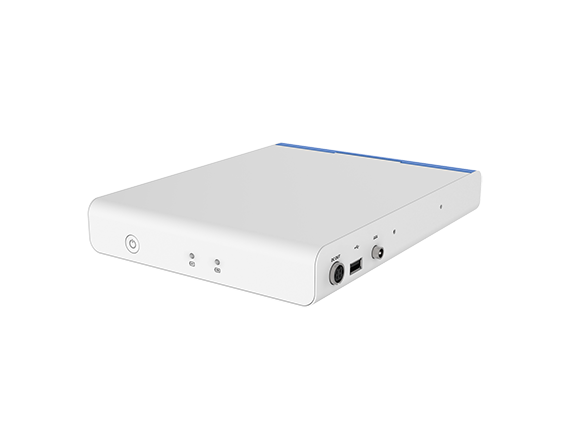

EPB-1001

Add-on Medical Power Module with Two Hot-swappable Batteries

INTRODUCTION

DATASHEET

GET A QUOTE

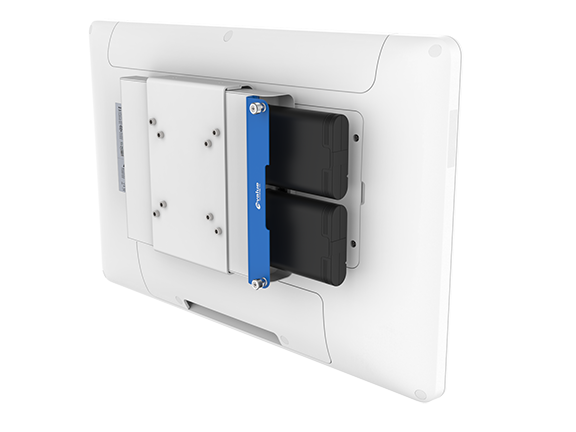

Easy installation,with 1.2kg lightweight, at rear side of panel PC, quick upgrade for mobile purpose

Dual hot-swappable batteries for uninterrupted power, as a UPS solution

Selectable 12V/19V output for telemedicine workstation

Intuitive battery management software supported (Windows & Android)

Lower maintenance cost, compared to battery module of powered panel PC

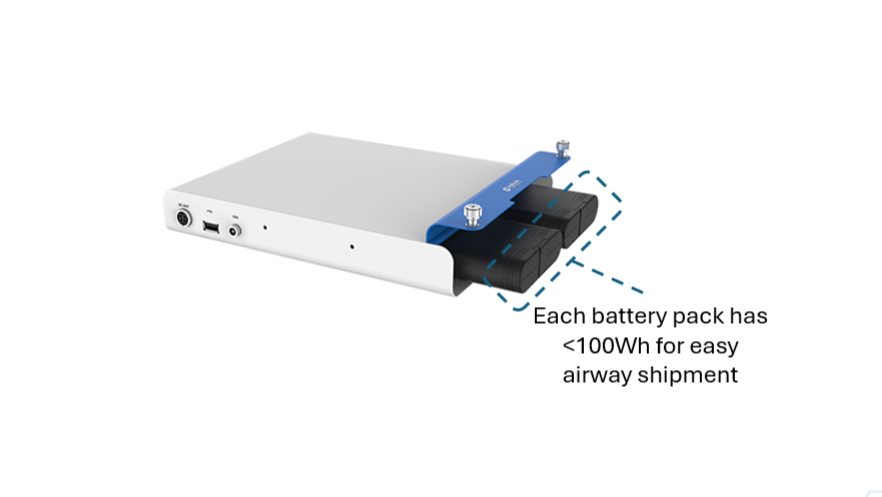

UN3841 compliant for cost-effective air shipment

Compatible with locally purchased battery packs via universal battery expansion box

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Medical Grade Compliant – complies with IEC/EN 60601-1 for electrical medical device safety, 60601-1-2 for EMC, and FCC Part 15B for low electromagnetic emissions

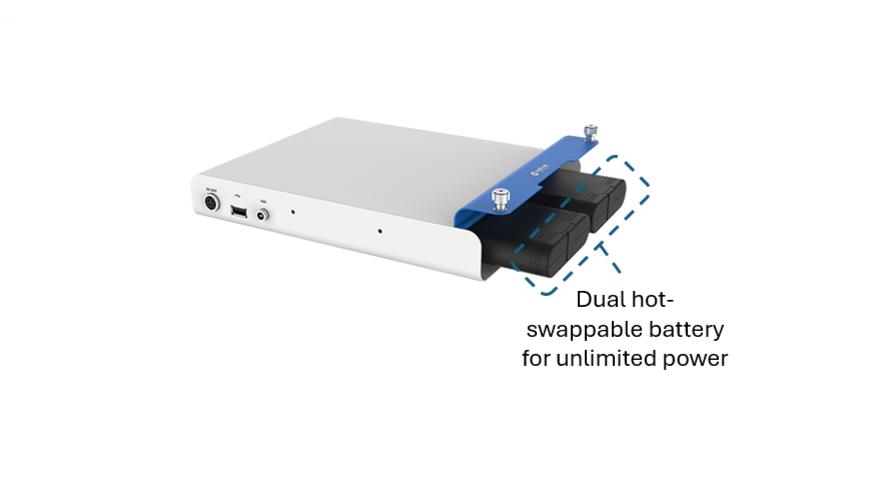

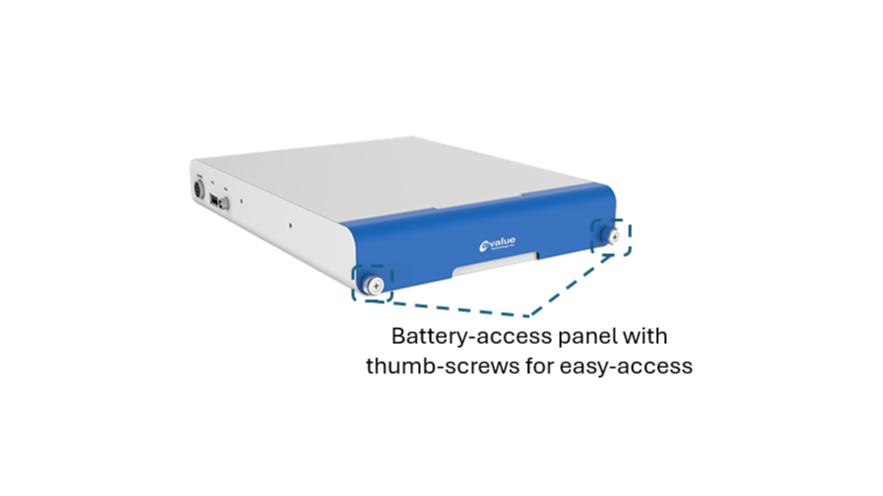

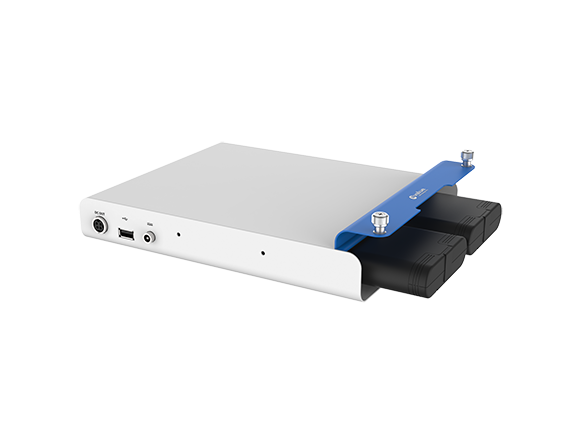

Easy & non-stop access – dual hot-swappable battery packs for unlimited power and thumb screws used in battery-access panel for easy swapping
Safe & Cost-Effective Transportation – compliant with IATA PI-967 package instruction for easy air shipment and no extra dangerous good charge

Device Applications

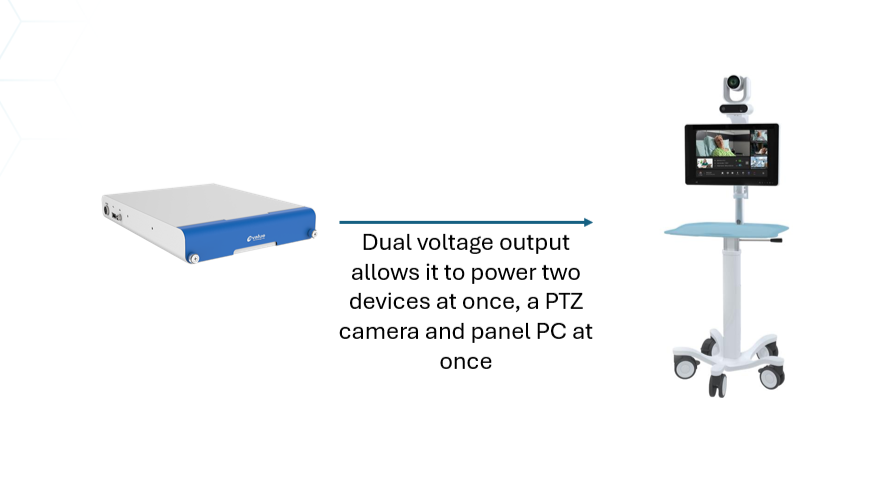

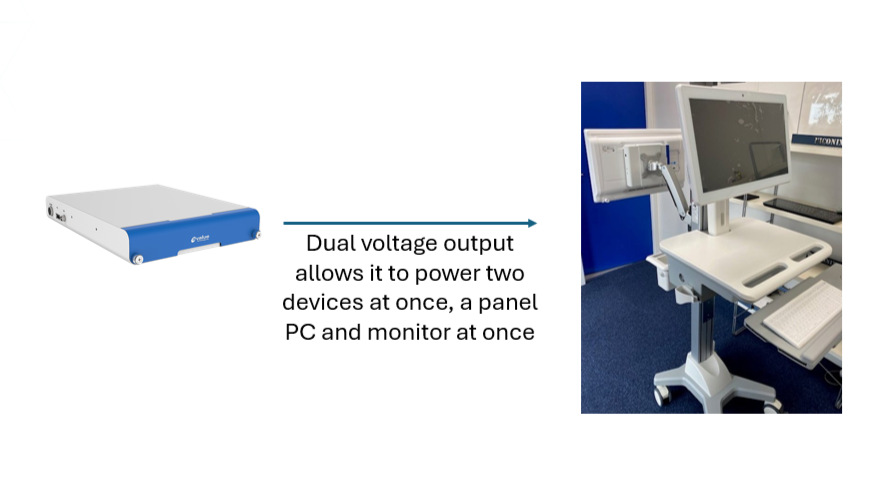

Mobile Workstation – dual voltage output allows it to power two devices at once — a PTZ camera & a panel PC or a panel PC & a monitor

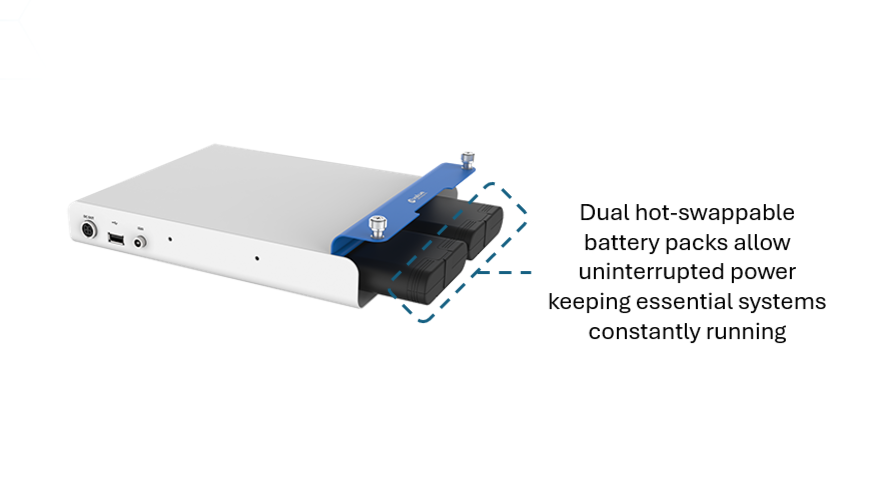

Reliable Power for Critical Workflows – dual hot-swappable battery packs allow power to remain uninterrupted keeping essential systems constantly running

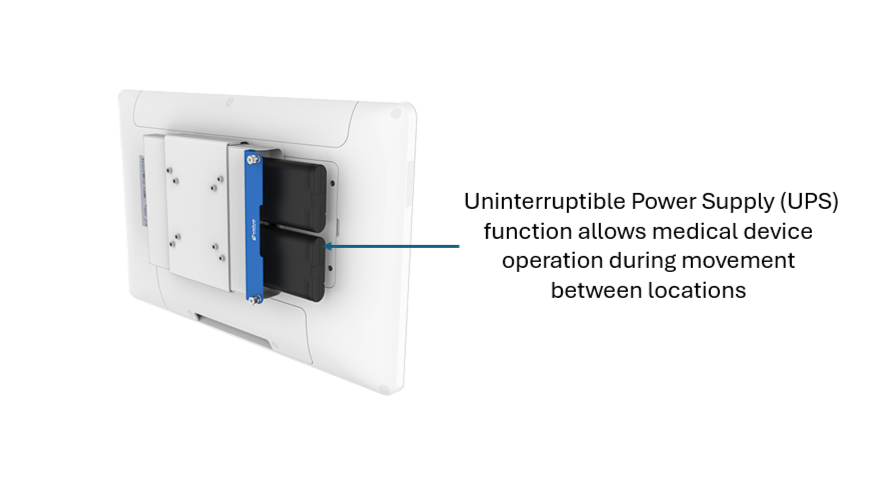

Medical Device Integration – uninterruptible Power Supply (UPS) function allows medical device operation during movement between locations
Reliable Power Conversion – easily upgrade a traditional workstation to a powered version, stabilizing power in regions with unstable input current

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Platform Controller Hub

LTC1760 Smart Charger IC LTC3789 Power IC

SBC

EPB-1001 battery board

MCU

IT8911

Battery

Optional dual hot-swappable smart battery pack
14.4V 6400mAh, 92.2Wh

External I/O

USB Port

1 x Type A (data transmission only)

Power Output

1 x Power DIN 4P 90D

Power Input

1 x DC jack with lock

Power Specification

Input Power

24V/5A medical power adapter

Output Power

12/19V DC-out, max. 80W (Default set as 19V)

System Control

LED Indicator

Power / Battery 1 / Battery 2

Certification

Certification Information

Battery pack: UN38.3, UL2054, EN 62133-2:2017 (Battery body EN 62368-1)
EPB-1001:
EN 60601-1, IEC60601-1 compliance, ISO 14971 (RMF)
EN 60601-1-2 4th (EMI ClassB)
FCC class part-15B (ITE)

Mechanical & Environmental

Dimension (mm)

235 x 182 x 36

Weight (kg)

1.2

VESA

Optional VESA bracket kit (75x75/ 100x100)

Operation Temperature

0~40°C (32˚F ~ 104˚F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Storage Temperature

-40°C ~ 75°C (-40 ~ 167°F) (without battery pack)

Vibration Test

1.5 Grms, IEC 60068-2-64

Shock Test

10g, Half Sine, IEC 60068-2-29

Dust and Rain Test

Top side IPX1

Color

White/ Blue
Black (optional)

Fanless

Yes

Manual

Other Driver

Manual

No.

Title

Description

Operating System

Release Date

Download

EPB-1001 3rd Quick Reference Guide

2023.11.01

Other Driver

No.

Title

Description

Operating System

Release Date

Download

Battery Management Tool

v1.0.0.1 for EPB-1001 Android version

Android

2025.05.12

BatteryManagement tools v1.4 for EPB-1001

Windows 10 64bit

2023.11.01
