APC-15WR2

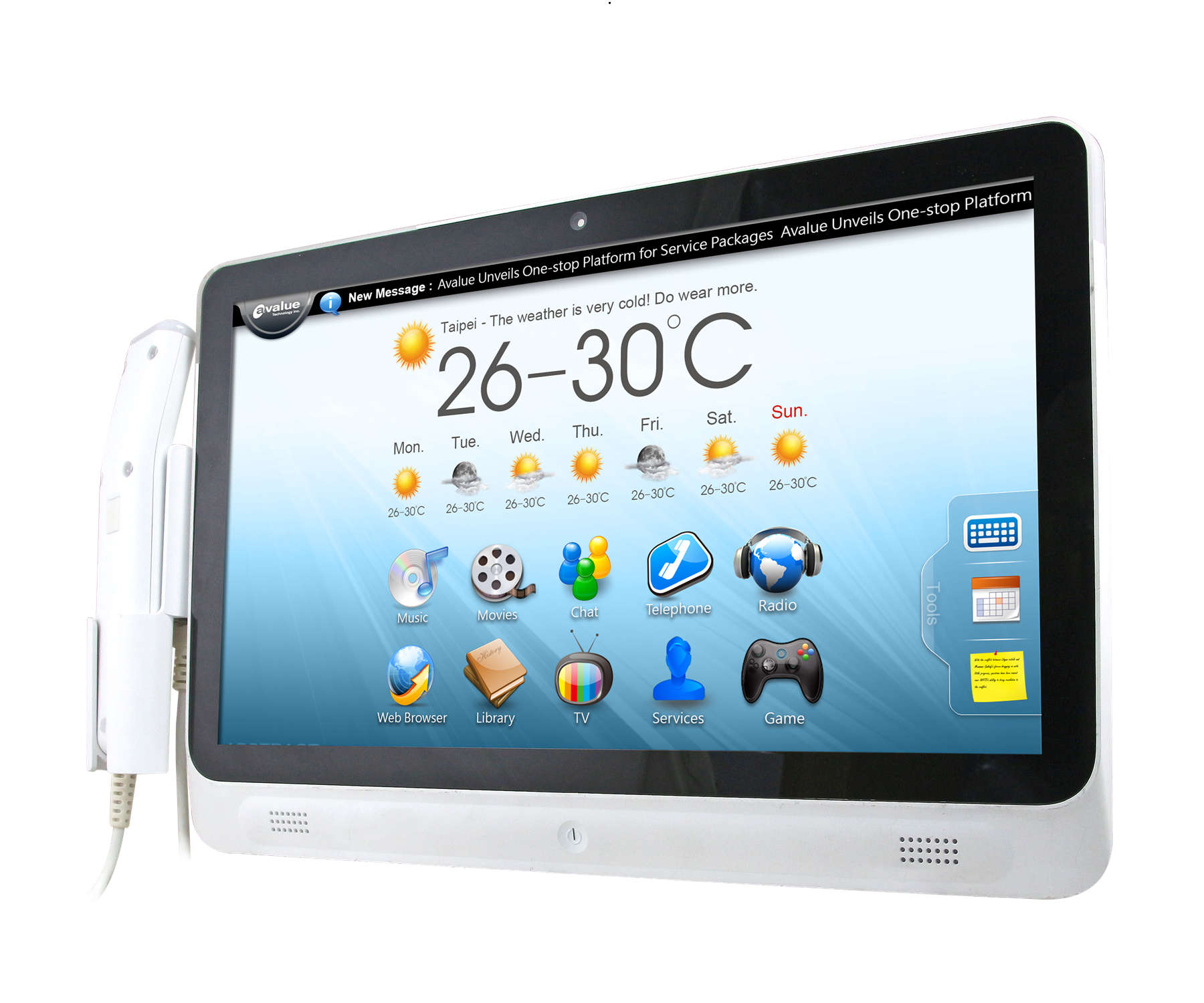

Target Bedside Infotainment Terminal with Handset for Instant Communication

INTRODUCTION

DATASHEET

GET A QUOTE

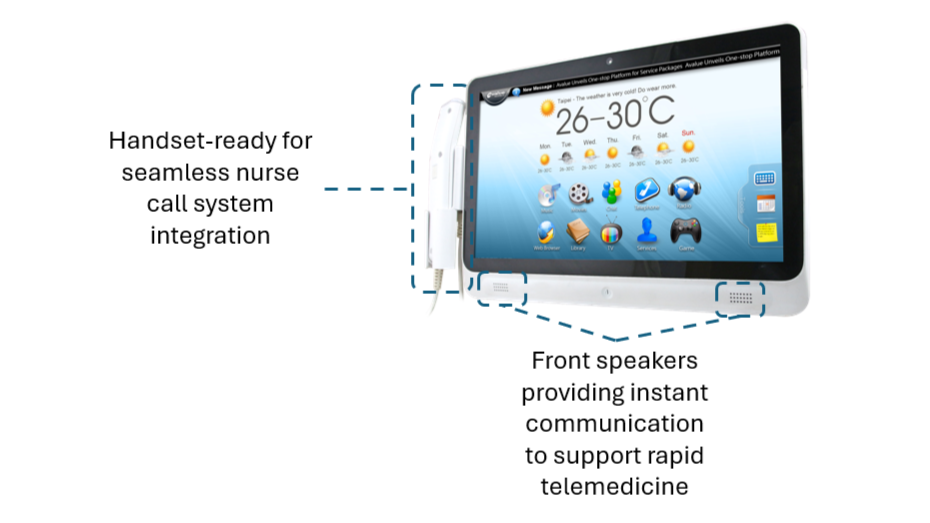

Handset-ready for seamless nurse call system integration

Corner full color light bars for alarm notification

Rockchip RK3568 Quad-core Cortex-A55 2.0GHz

NFC module for nurse identification and quick data transmission

2MP camera & front speakers for tele-consultation

1-Gigabit Ethernet with powered LAN (802.3at)

31.5mm thickness designed for space-saving installation

Android / Debain OS support

Introduction

Specification

Ordering Information

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Clean & Reliable Operation – PCAP touchscreen interface with IP65 protection and a fan-less architecture preventing dust accumulation and enhances ease of cleaning

High-Speed Connectivity – GbE LAN port with powered LAN and NFC for fast and seamless data transmission, ensuring reliable access to EMRs and other critical healthcare applications

Visual and Voice Integration – Corner dual-color LED light bar combined with handset provides visual alerts and instant voice communication, ensuring rapid response

Integrated Camera & Front speakers – Built-in 2 MP camera and front speakers to deliver clear video and audio for virtual care

Device Applications

Staff Authentication – NFC support quick data transmission and ensure secure nurse logins, enhancing patient safety

Telemedicine & Remote Consultations – 2MP camera with front-facing speakers enable clear virtual assessments and specialist consultations

Nurse Communication & Alerts – hand-set ready design enables seamless integration with nurse call system, while a dual-color light bar provides clear alarm notifications for rapid response in clinical environments

Bedside Infotainment – partner with solution provider to integrate their apps for inpatient report access, and offer API service to support seamless app development

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

4GB LPDDR4

Graphic Chipset

Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

OS Support

Android 11/ / Debian 11

Expansion

M.2

1 x M.2 Key B 3042 (SATA3 / USB 2.0, support SSD / LTE Module)

Storage

64GB eMMC

Other Storage Device

1 x Micro SD

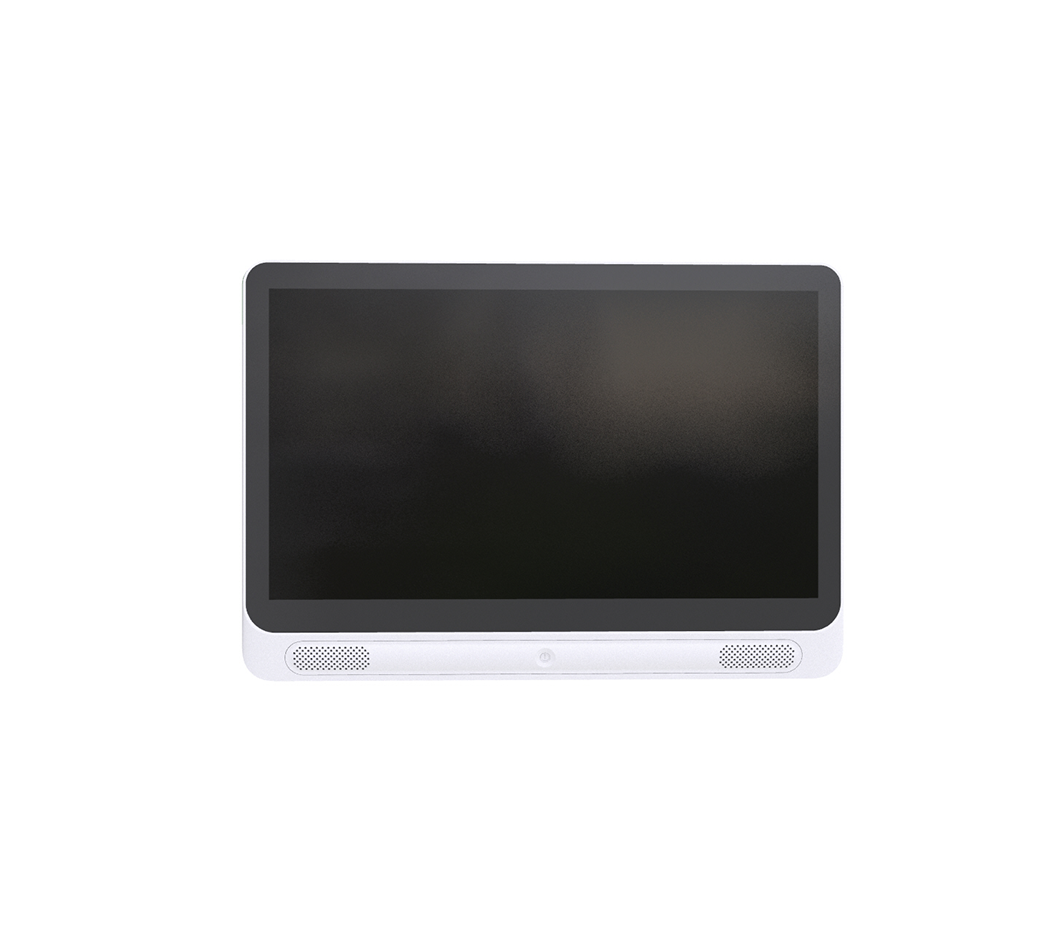

Display

LCD Size

15.6”

Resolution

1920 x 1080

Luminance

400 cd/m²

Contrast Ratio

800:1

Viewing Angle

170°/ 170°

I/O Ports

USB Port

2 x USB 3.0

LAN Port

1 x RJ-45 / Powered LAN (802.3at)

COM Port

1 x RS232/485 (RJ45 Type)

Audio Port

1 x Audio Jack

Audio

Speaker Output

2 x 4Ω 2.0W/2.2W(MAX)

Indicator

LED Indicator

2 x full color light bar

Ethernet

LAN Chipset

Realtek RTL8211F-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT 5.0

WLAN

Optional Wi-Fi 802.11ac/a/b/g/n

Data Collection

NFC

Support NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE and FeliCa

Camera

Front 2.0 MP camera

Power Requirement

DC Input

+12V ~ +24V

DC Input Connector

Lockable DC Jack

Adapter

Optional
Input: 100 ~ 240 Vac/ 50 ~ 60Hz
Output: 60W adapter (12V/5A)

Certification

Safety

CE, FCC Class B

Mechanical & Environmental

Dimension (mm)

385 x 266 x 34

Weight (kg)

1.5

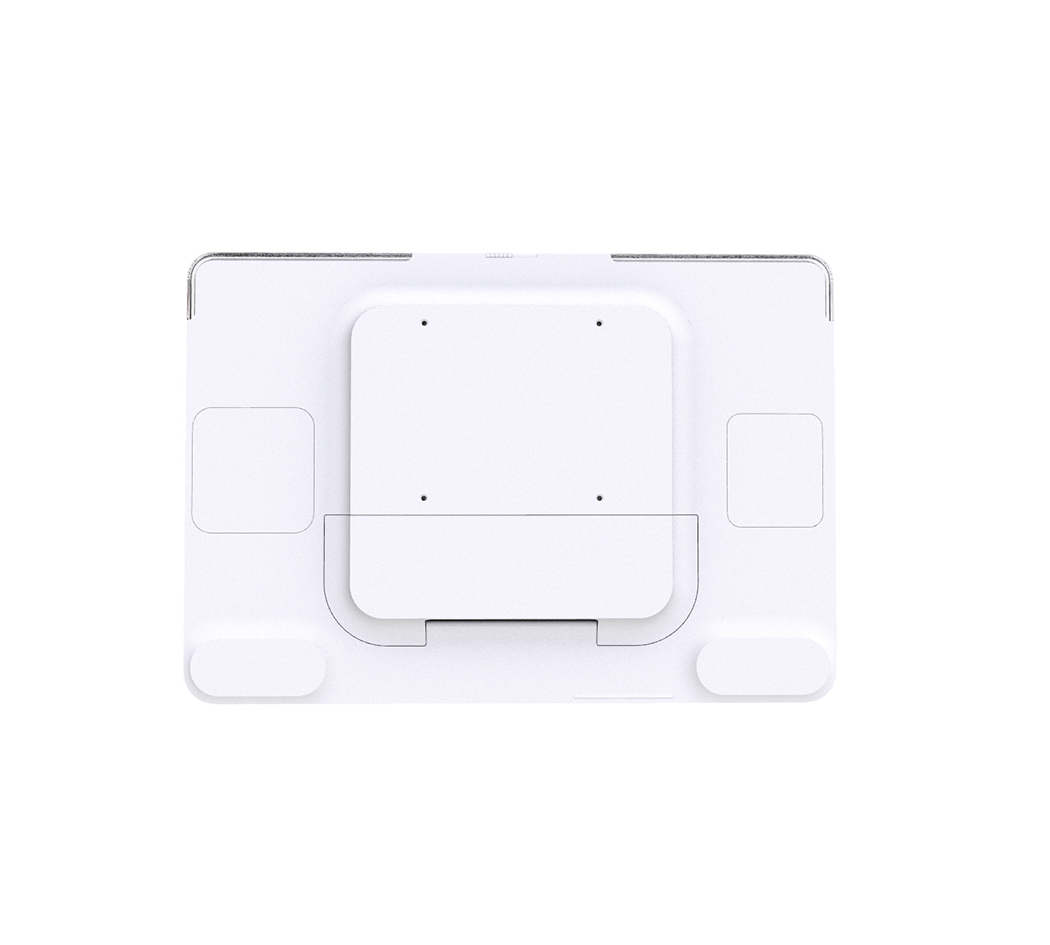

Mounting

VESA 75 x 75 mm

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

System Fan

Fanless

IP Rating

Front panel IP65

Ordering Information

Options

Ordering Information

Part No.

Description

APC-15WR2-CW49-1R

15.6" APC, 1920x1080, 400nits, Rockchip RK3568, 4GB RAM, 64GB eMMC, PCAP, DC12~24V / POE, Android 11, w/o power adapter and power cord

APC-15WR2-CW49-2R

15.6" APC, 1920x1080, 400nits, Rockchip RK3568, 4GB RAM, 64GB eMMC, PCAP, DC12~24V / POE, Android 11, w/ power adapter, w/o power cord

APC-15WR2-CW49H-1R

15.6" APC, 1920x1080, 400nits, Rockchip RK3568, 4GB RAM, 64GB eMMC, PCAP, DC12~24V / POE, Android 11, w/ handset, w/o power adapter and power cord

APC-15WR2-CW49H-2R

15.6" APC, 1920x1080, 400nits, Rockchip RK3568, 4GB RAM, 64GB eMMC, PCAP, DC12~24V / POE, Android 11, w/ handset & power adapter, w/o power cord

Options

Part No.

Description

E1702031833R

AC/DC Adapter 12V/5A 60W Screw Type

E1702031835R

Power Cord
