Selecting the appropriate Panel PC is crucial for the success of your healthcare and medical projects. Avalue Healthcare simplifies this process by offering a comprehensive range of Panel PCs designed to meet diverse medical environments and performance requirements.

Our Panel PCs are engineered with performance, reliability, and flexibility in mind, covering a full spectrum of use cases with scalable CPU choices.

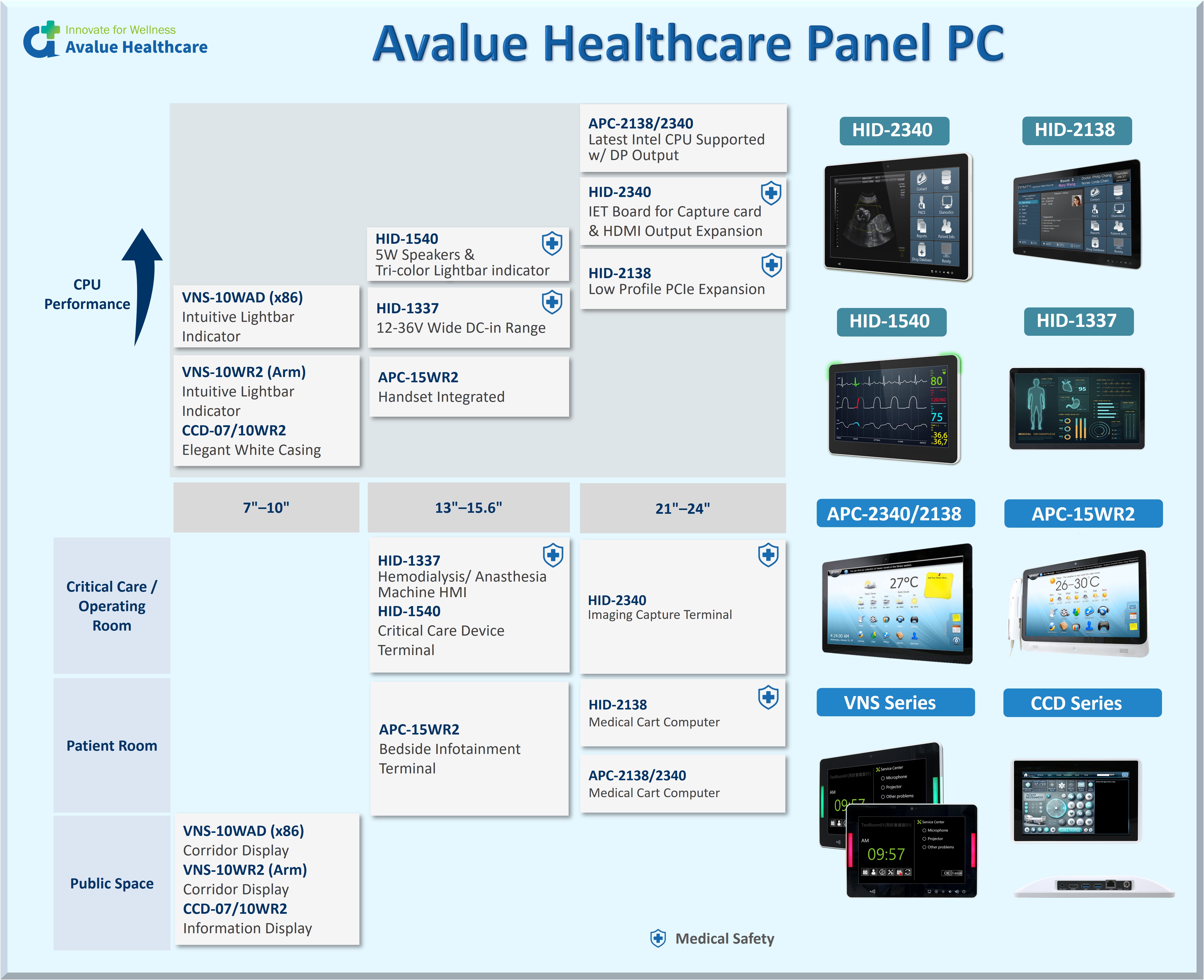

🔹 Critical Care

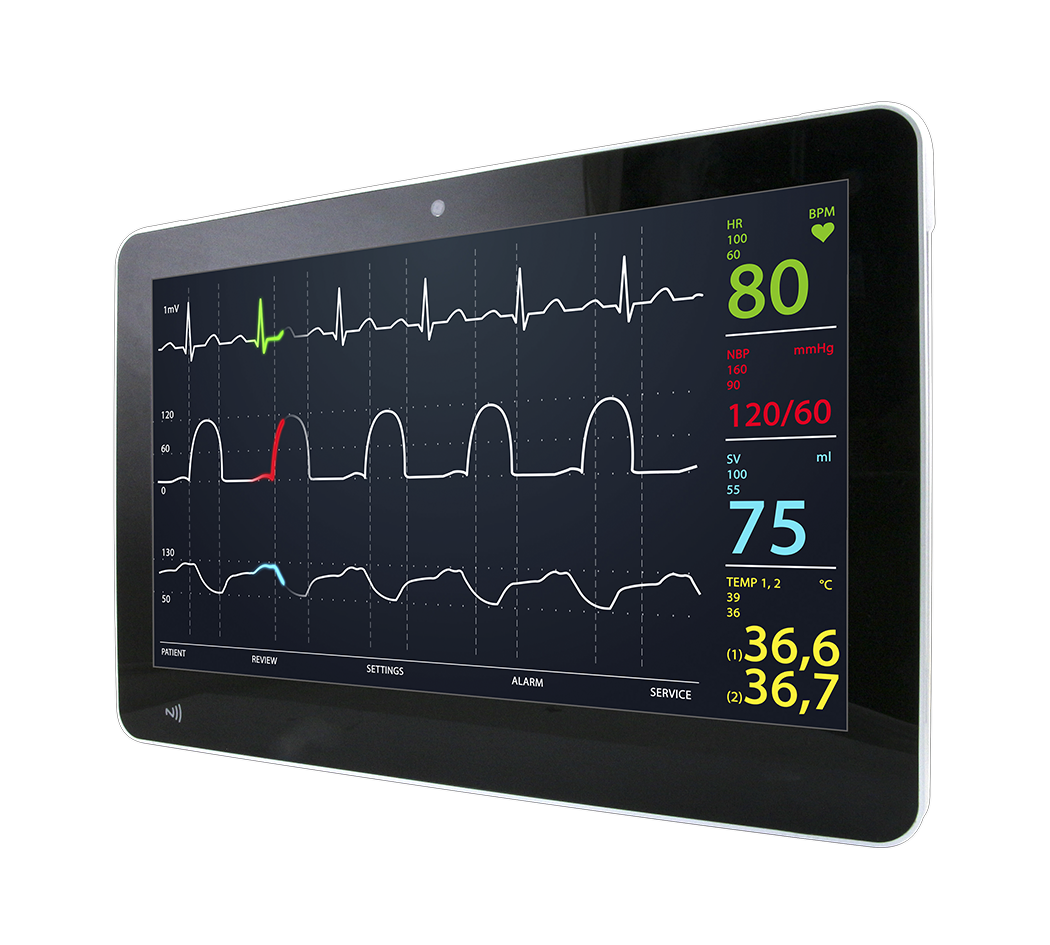

• HID-1540 / HID-1337: Compact models for use in hemodialysis, anesthesia, and patient monitoring

→ Tri-color LED lightbar indicators & 5W speakers supporting IEC 60601-1-8 certified alarm systems

→ Choose between 12th Gen Intel® Core™ i (HID-1540) or Intel® Alder Lake N (HID-1337) for performance or low-power needs

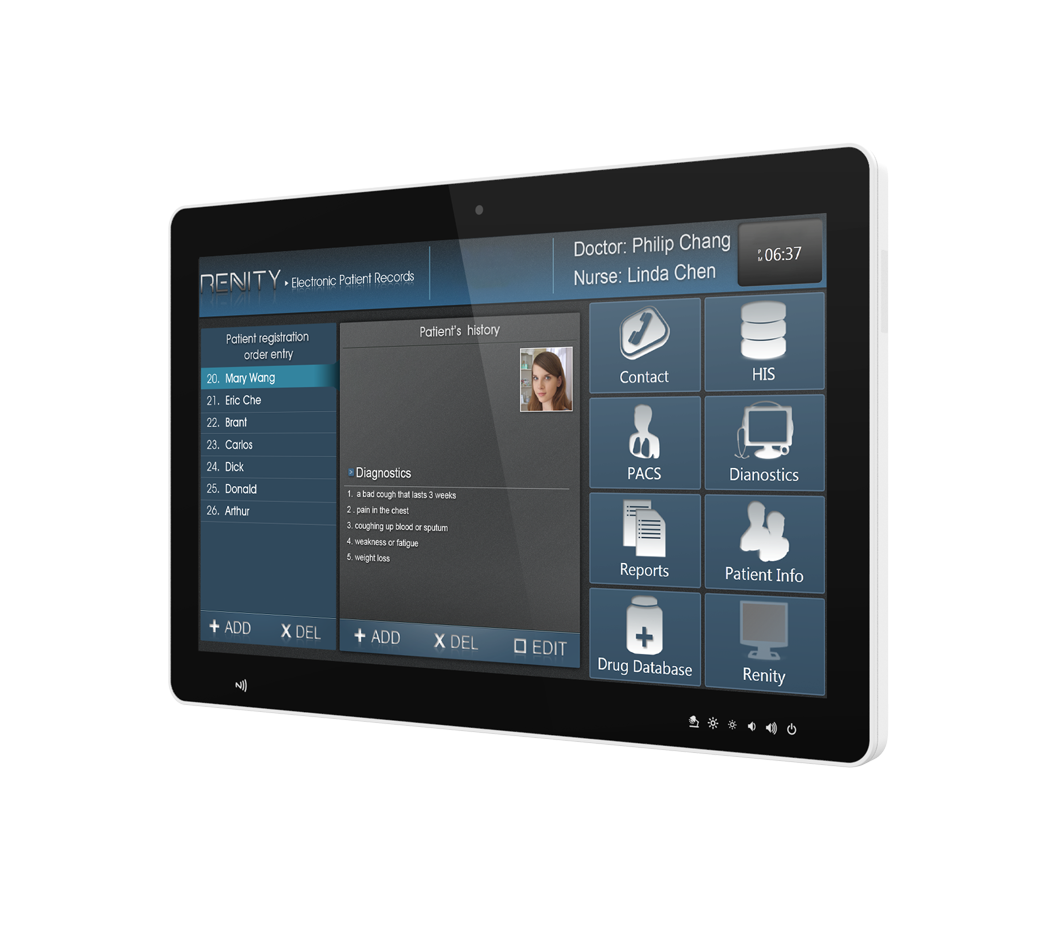

• HID-2340: Ideal for imaging capture applications

→ IET board expansion for capture card or HDMI video output

→ 13th Gen Intel® Core™ i CPU for high-performance image processing

🔹 Patient Room

• APC-15WR2 (Arm): Bedside infotainment Terminal

→ Integrated handset for instant nurse-station communication

• HID-2138 / APC-2138/APC-2340 (x86): Medical and non-medical models for mobile cart or general usage

→ HID-2138: Medical safety certified with built-in NFC & low profile PCIe expansion

→ APC-2138/2340: Non-medical version panel PC catching up latest CPU for fast deployment

🔹 Public Spaces & Corridor Use

• VNS-10WAD/WR2 (x86/Arm): Interactive corridor status display

→ Available in both Intel® x86 and Arm versions

→ Dual-color lightbar indicator & powered LAN with intuitive status alarm & easy installation benefits

• CCD-07/10WR2 (Arm): Cost-effective information displays

→ Entry-level white casing panel PC

1. Comprehensive Size and Performance Range

Avalue Healthcare offers Panel PCs ranging from 7” to 23.8”, accommodating various healthcare settings—from compact information displays to advanced imaging capture terminal. This range ensures healthcare providers can select devices tailored to specific application needs.

2. Modular Expansion Capabilities

Designed with flexibility in mind, Avalue Healthcare's Panel PCs support modular expansion options by IET board for isolated I/O ports or video output. This allows for seamless integration of additional functionalities, enabling customization to meet evolving clinical requirements.

3. Superior Hygiene and Safety Standards

Avalue Healthcare's medical-grade Panel PCs feature front IP65-rated displays, ensuring resistance to dust and water ingress. The fanless design minimizes the risk of airborne contaminants, supporting stringent infection control protocols in healthcare environments.

4. Certified Safety and Electromagnetic Compatibility

Compliant with IEC 60601-1 and IEC 60601-1-2 standards, Avalue Healthcare's Medical Panel PCs ensure protection from electrical hazards and electromagnetic interference. These certifications safeguard patients and medical staff, maintaining the functionality of nearby medical equipment during power surges or electromagnetic disturbances.

5. Enhanced Patient Engagement and Workflow Efficiency

Avalue Healthcare offers a wide range of healthcare information terminals that support direct communication between patients and medical staff, while enabling intuitive access to personal health data and educational content. Thoughtful features—such as easy peripheral integration and flexible mounting—benefit both hospital users and system integrators, streamlining deployment and enhancing the care experience.

Avalue’s Panel PC lineup is designed to simplify project integration while meeting high standards for safety, hygiene, and usability — making it a smart choice for today’s healthcare applications.
