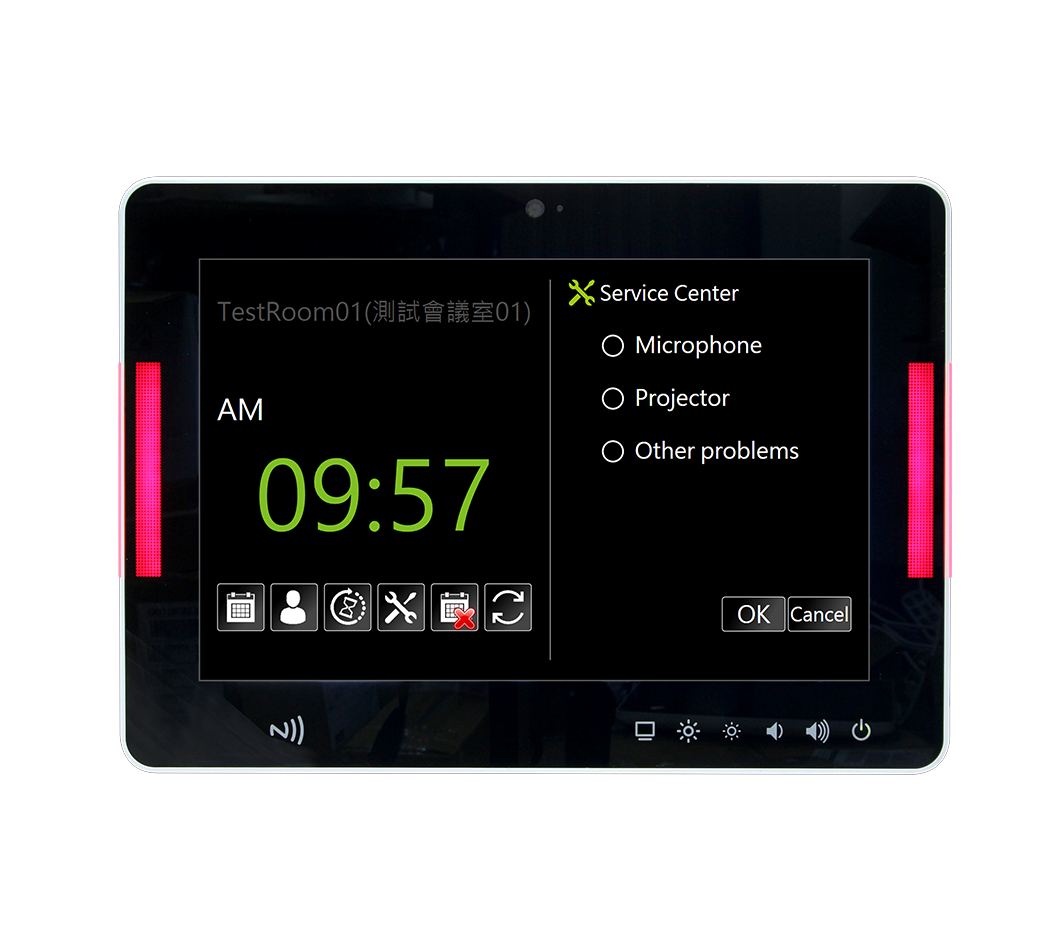

VNS-10WR2

Arm-based 10.1" Panel PC with Intuitive Light Indicators for Corridor Display

INTRODUCTION

DATASHEET

GET A QUOTE

Rockchip RK3568 Quad-core Cortex-A55 2.0GHz

Powered LAN & VESA mounting compliance for easy installation

Two full color light bar for intuitive alarm notification

NFC & Wi-Fi /BT 5.0 module for quick ID identification & instant data transmission

Android / Debian OS support

Introduction

Specification

Ordering Information

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Clean & Reliable Operation – PCAP touchscreen interface with IP65 protection and a fan-less, slim ARM-based architecture preventing dust accumulation and enhances ease of cleaning

Power over Ethernet – simplifies installation by delivering both power and data through a single LAN cable, enabling flexible deployment

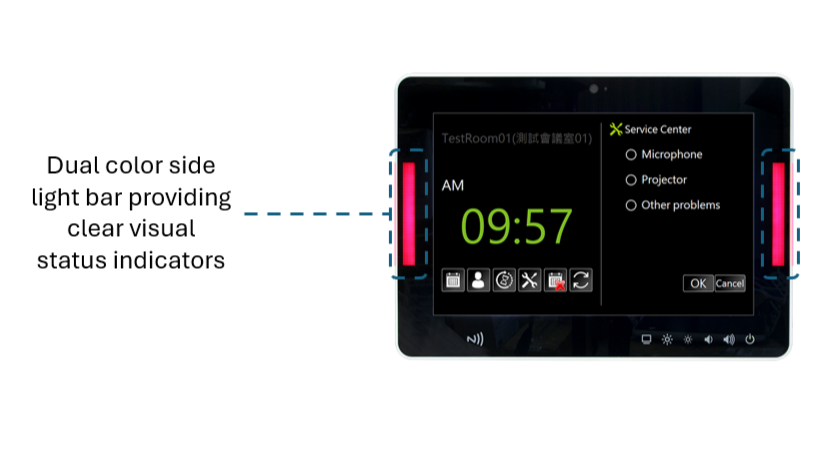

Dual Color Side Light Bar – LED light bar provides clear visual status indicators, enhancing workflow efficiency and patient safety

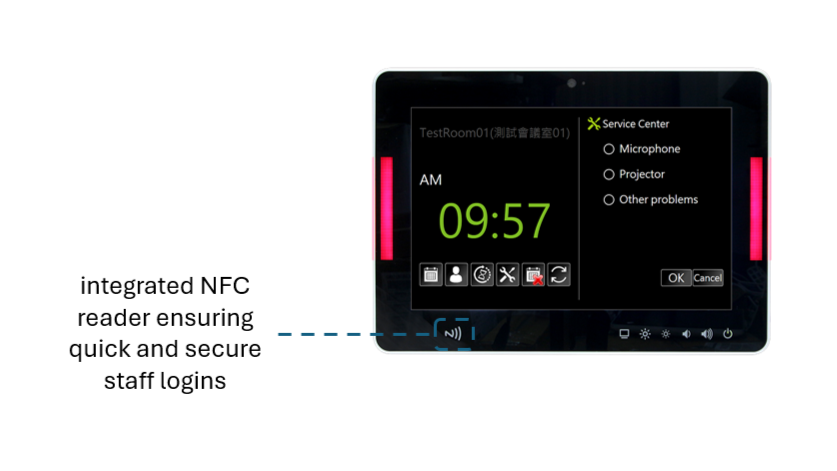

NFC, OS Flexibility & Wireless Connectivity – integrated NFC reader & Wi-Fi 6/Bluetooth 5.0 enables quick data transmission and secure staff logins, while Android / Debian OS support provide versatility in healthcare environments

Device Applications

Corridor Display – PCAP touchscreen interface with IP65 protection and a fan-less architecture preventing dust accumulation and enhances ease of cleaning

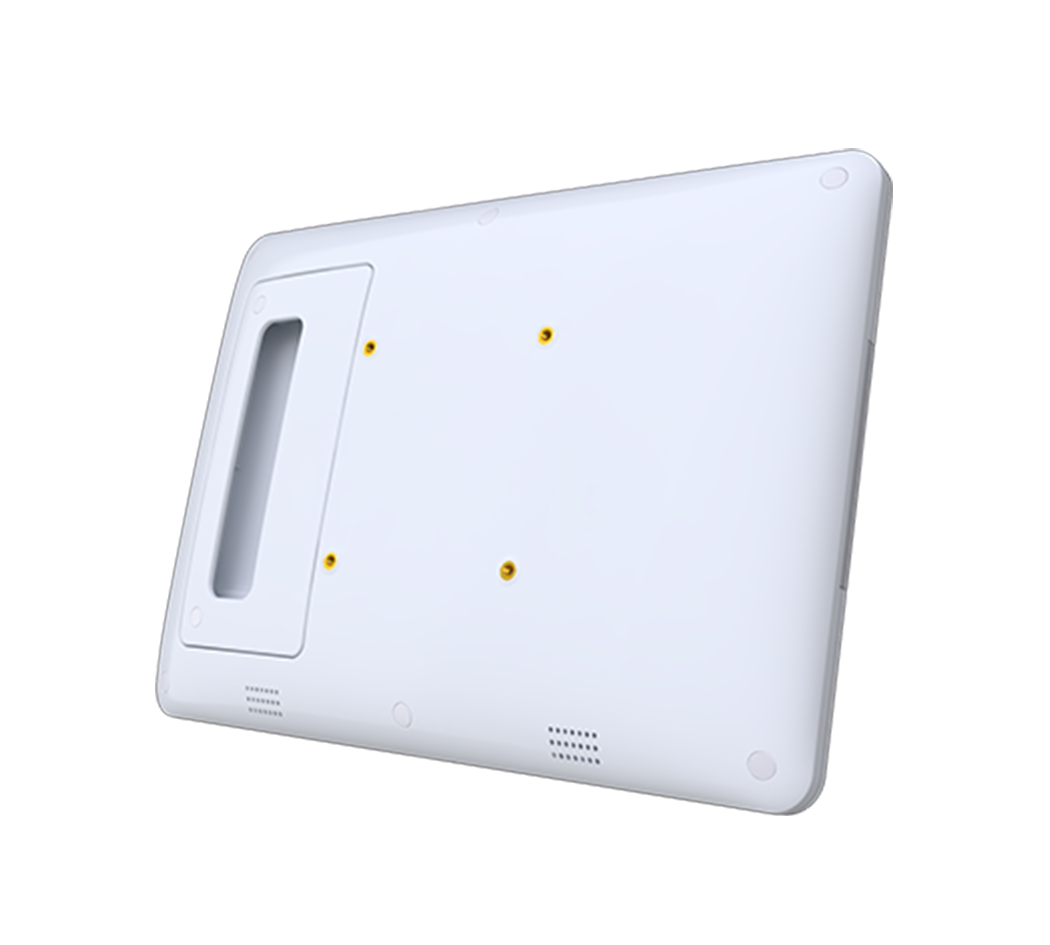

Simplified Deployment – PoE with VESA 100 mounting support ensures easy installation, even in narrow corridors or space-constrained environments

Visual Alarm Notification – LED light bar provides clear visual status indicators, enhancing workflow efficiency and patient safety

Authentication and Data Transmission – integrated NFC reader & Wi-Fi 6/Bluetooth 5.0 enables quick data transmission and secure staff logins while Android / Debian OS support provides access to a variety of custom healthcare solutions

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz

System Memory

4GB LPDDR4

Graphic Chipset

Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0

OS Support

Android 11 / Debain 11

Expansion

M.2

1 x M.2 Key B 3042 (SATA3 / USB 2.0, support SSD/LTE module)

Storage

64GB eMMC

Other Storage Device

1 x Micro SD

Display

LCD Size

10.1"

Resolution

1280 x 800

Luminance

350 cd/m²

Contrast Ratio

800:1

Viewing Angle

170°/ 170°

I/O Ports

USB Port

2 x USB 3.0

LAN Port

1 x RJ-45/ Powered LAN (802.3at)

COM Port

1 x RS-232/485 (RJ-45 Type)

Audio Port

1 X Audio Jack

Audio

Speaker Output

2 x 4Ω 2.0W /2.2W (MAX)

Indicator

LED Indicator

2 x full color light bar

Ethernet

LAN Chipset

Realtek RTL8211F-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT 5.0

WLAN

Optional Wi-Fi 802.11ac/a/b/g/n

Data Collection

NFC

Support NFCIP-1, NFCIP-2, ISO/IEC 14443, ISO/IEC 15693, MIFARE and FeliCa

Camera

Front 2.0 MP camera

Power Requirement

DC Input

12~24V DC in/ Powered LAN

DC Input Connector

Lockable DC Jack

Adapter

Optional
Input: 100 ~ 240 Vac/ 50 ~ 60Hz
Output: 60W adapter (12V/5A)

Certification

Safety

CE/FCC Class B

Mechanical & Environmental

Dimension (mm)

270 x 193 x 28

Weight (kg)

1.1

Construction

Plastic PC+ABS

Mounting

VESA 75 x 75 mm

Color

White

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, non-condensing

Storage Temp.

-10°C ~ 60°C(-14°F ~ 140°F)

System Fan

Fanless

IP Rating

Front panel IP65

Ordering Information

Part No.

Description

VNS-10WR2-CW49-1R

10.1" 1280 x 800, 350 nits, Venus, Rockchip RK3568, 4GB RAM, 64GB eMMC, PCAP, DC12~24V / POE, Android 11, w/o power adapter and power cord

Manual

No.

Title

Description

Operating System

Release Date

Download

VNS-10WR2 1st Quick Reference Guide

2024.04.15
