VNS-10WAD

10.1" Alder Lake N N50 Panel PC with Intuitive Light Indicators for Corridor Display

INTRODUCTION

DATASHEET

GET A QUOTE

Intel® Alder Lake-N N50 processor

Powered LAN & VESA mounting compliance for easy installation

Two full color light bar for intuitive alarm notification

NFC module for quick ID identification & instant data transmission

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Clean & Reliable Operation – PCAP touchscreen interface with IP65 protection and a fan-less, slim architecture preventing dust accumulation and enhances ease of cleaning

Power over Ethernet – simplifies installation by delivering both power and data through a single LAN cable, enabling flexible deployment

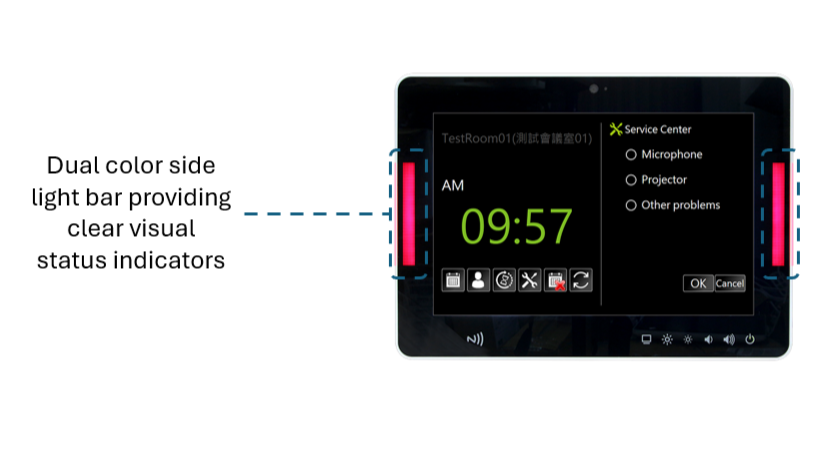

Dual Color Side Light Bar – LED light bar provides clear visual status indicators, enhancing workflow efficiency and patient safety

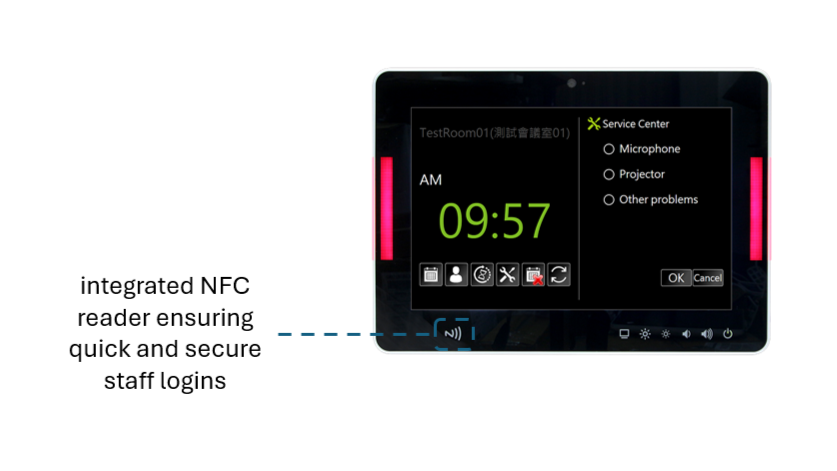

NFC Authentication – integrated NFC reader enables quick and secure staff logins, enhancing data security in healthcare environments

Device Applications

Corridor Display – PCAP touchscreen interface with IP65 protection and a fan-less architecture preventing dust accumulation and enhances ease of cleaning

Simplified Deployment – PoE with VESA 100 mounting support ensures easy installation, even in narrow corridors or space-constrained environments

Dual color side light bar – LED light bar provides clear visual status indicators, enhancing workflow efficiency and patient safety

NFC Authentication – integrated NFC reader enables quick and secure staff logins enhancing data security in healthcare environments

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® Alder Lake-N N50

System Memory

8GB LPDDR5

Graphic Chipset

Intel® UHD Graphics

OS Support

Windows 10/11, ubuntu 24.04

Storage

64GB eMMC

Other Storage Device

1x Micro SD

Display

LCD Size

10.1"

Resolution

1280 x 800

Luminance

350 cd/m²

Contrast Ratio

1:800

Viewing Angle

170°/ 170°

I/O Ports

USB Port

2 x USB 3.0

LAN Port

1 x RJ-45

COM Port

1 x RS-232/485 (RJ-45 Type)

Audio Port

1 x Audio Jack

Audio

Speaker Output

2 x 4Ω 2.0W/2.2W(MAX)

Indicator

LED Indicator

2 x True color light bar

Ethernet

LAN Chipset

Realtek RTL8111I-CG

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT 5.2

WLAN

Optional Wi-Fi 802.11a/b/g/n/ac/ax

Data Collection

NFC

Support ISO/IEC 14443 A/B, ISO/IEC 15693/18092,NFCIP-1, NFCIP-2, MIFARE & Felica

Camera

Front 2.0 MP camera

Power Requirement

DC Input

12~24V DC in

DC Input Connector

Lockable DC Jack

Adapter

Optional
Input: 100 ~ 240 Vac/ 50 ~ 60Hz
Output: 60W adapter (12V/5A)

Certification

Safety

CE/FCC Class B

Mechanical & Environmental

Dimension (mm)

270 x 193 x 28

Weight (kg)

1.1

Construction

Plastic PC+ABS

Mounting

VESA 75 x 75 mm

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

System Fan

Fanless

IP Rating

Front panel IP65

Manual

No.

Title

Description

Operating System

Release Date

Download

VNS-10WR2 1st Quick Reference Guide

2024.04.15
