HID-2146

21.5" Medical Edge Panel PC for Hands-free Control & Nursing Assistant Applications

INTRODUCTION

DATASHEET

GET A QUOTE

Add-on noise-cancelling mic and speaker modules for high-quality voice capture

GPU expansion via PCIex4 for medical edge AI computing

Narrow bezel and slim-profile design maximize viewing space and simplify deployment across clinical environments

Intel® 15th Gen Arrow Lake processor

Isolated USB/COM/LAN expansion via IET module for strict clinical requirement

12/24V DC output for easy powering clinical accessories

Imprivata RFID integration for better workflow efficiency & system compliance

Optional backup battery module for uninterrupted clinical mobility

CE/FCC/Medical UL certified

Introduction

Specification

Ordering Information

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

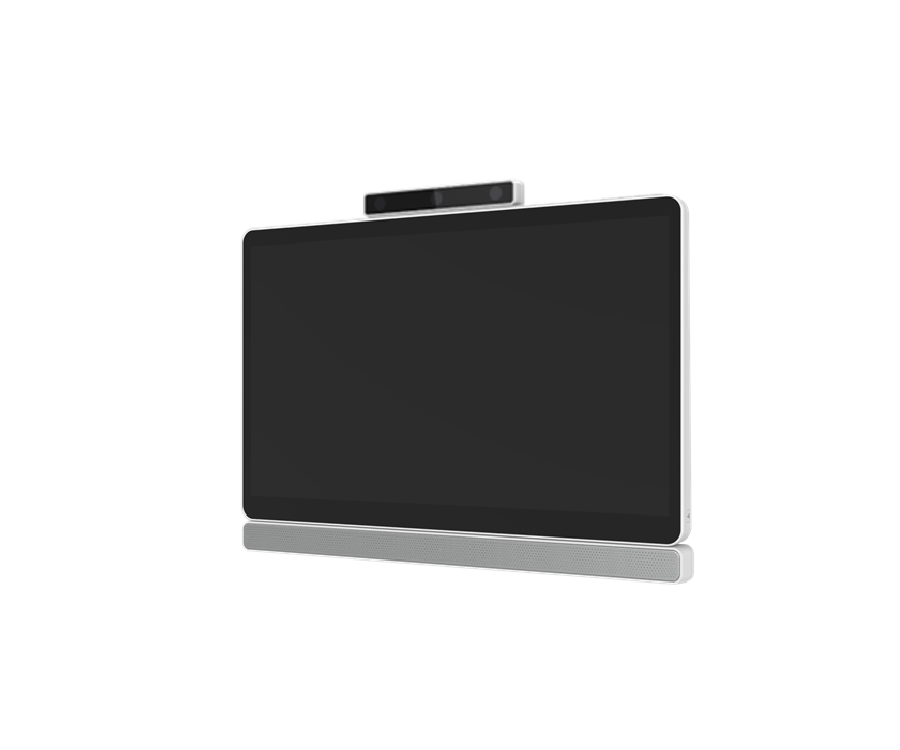

Flexible Module Expansion - Audio

Enhanced voice capture & delivering for automatic hands-free workflow and AI nursing assistant

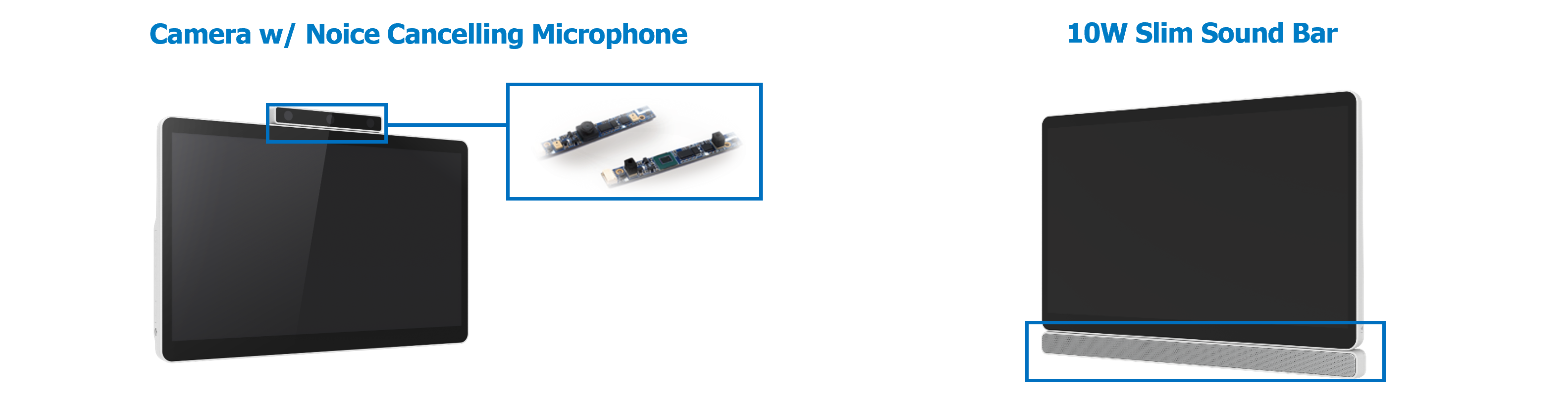

Camera with noise cancelling microphone, filtering hospital environmental noise
10W slim sound bar with high fidelity

Flexible Module Expansion - GPU & IET

Flexible Expansions for Diverse Clinical & Computing Needs

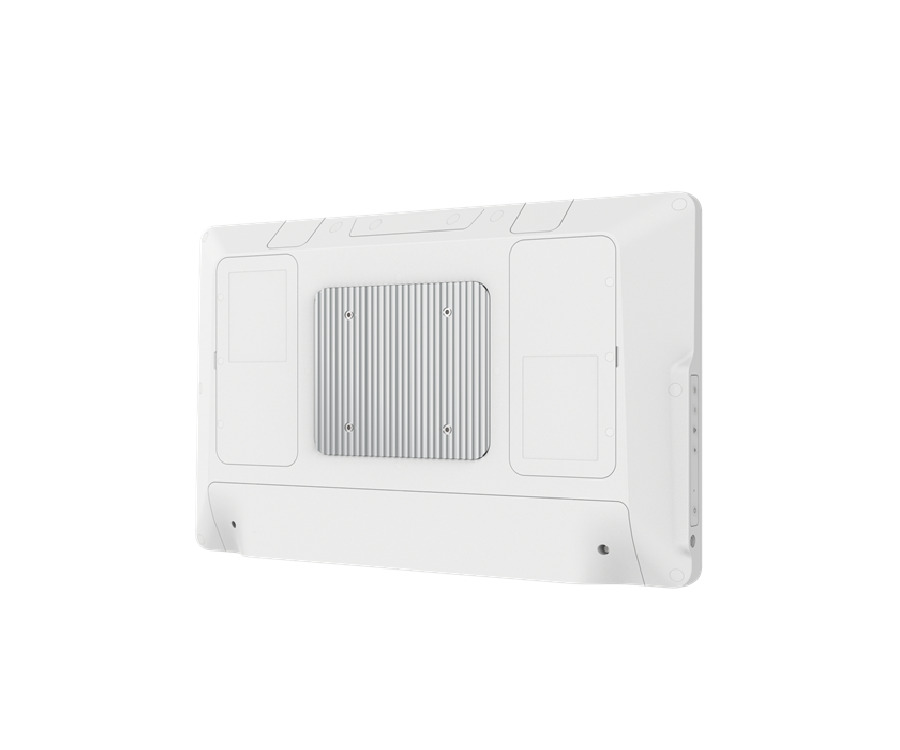

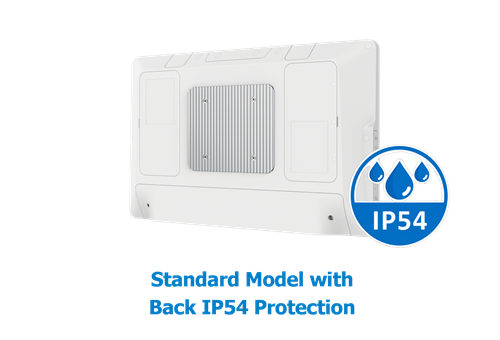

Standard back cover with IP54 protection

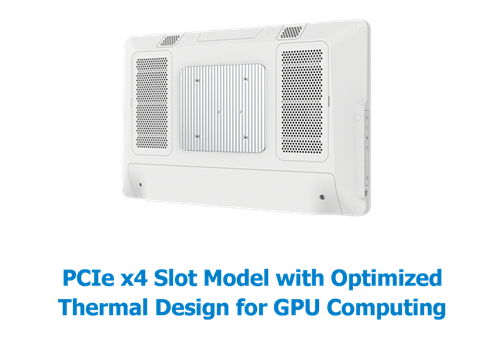

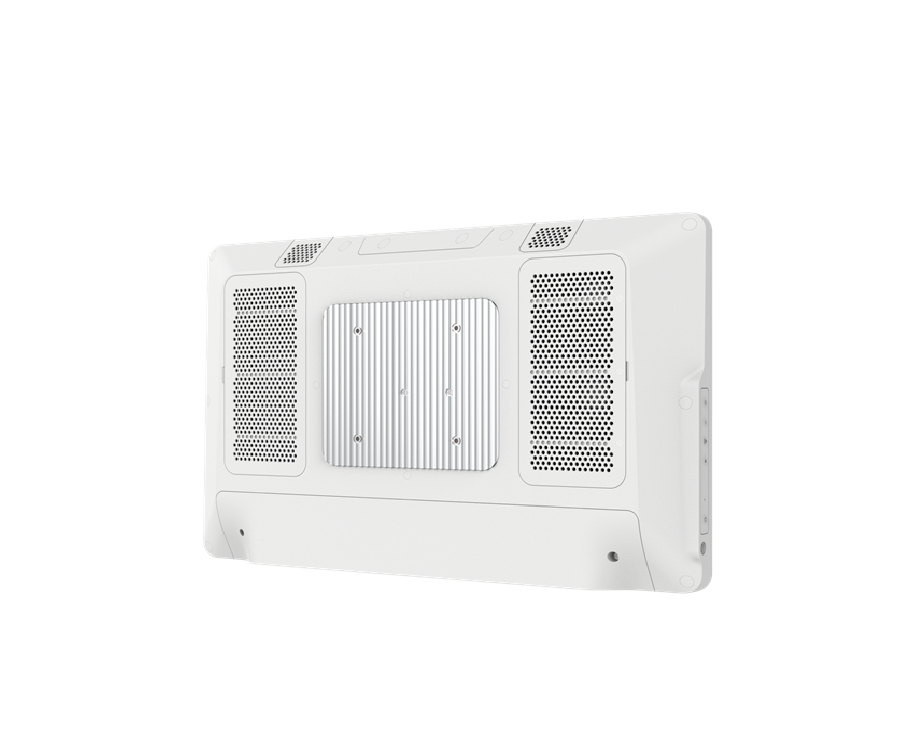

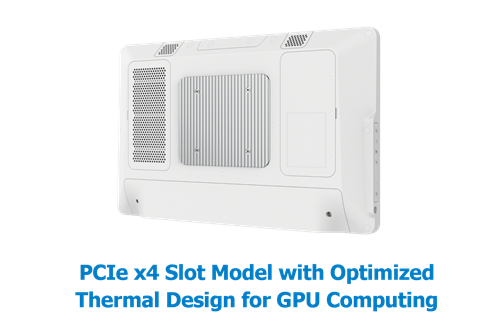

PCIe x 4 slot for expansions of GPU, capture cards, and high-speed LAN cards

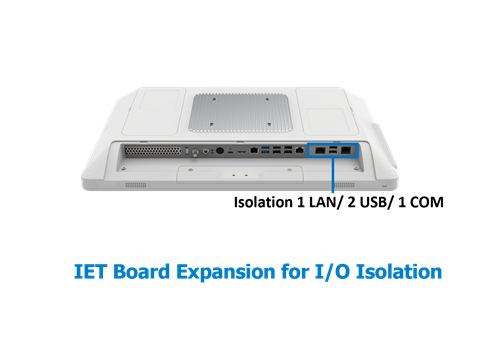

IET board for I/O port isolation (LAN/COM/USB 5KV isolation)

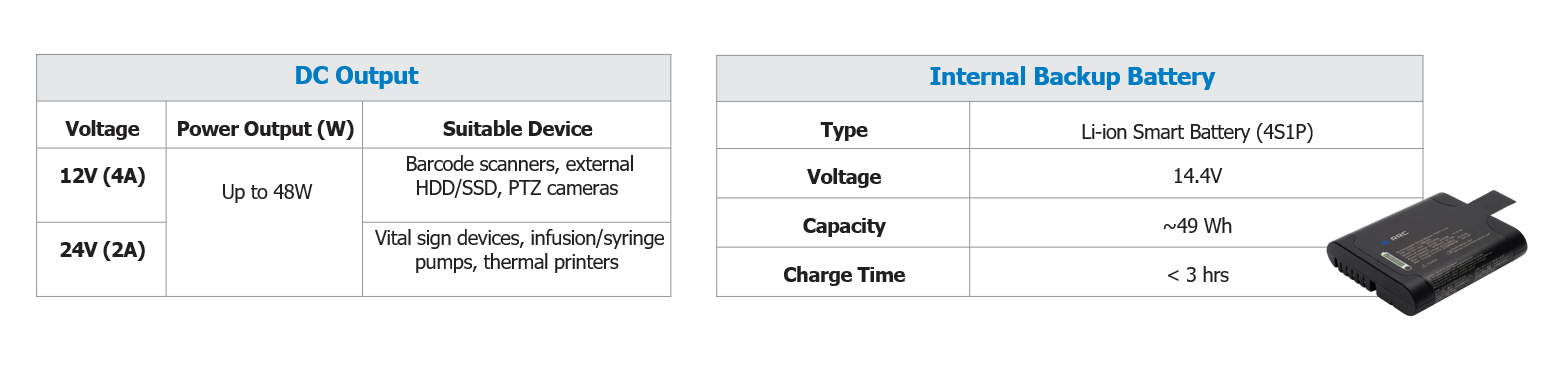

Smart Power Design - DC Output & Backup Battery

Design of 12V/24V DC output enables easy connection to workflow peripherals
Optional backup battery facilitates uninterrupted clinical mobility

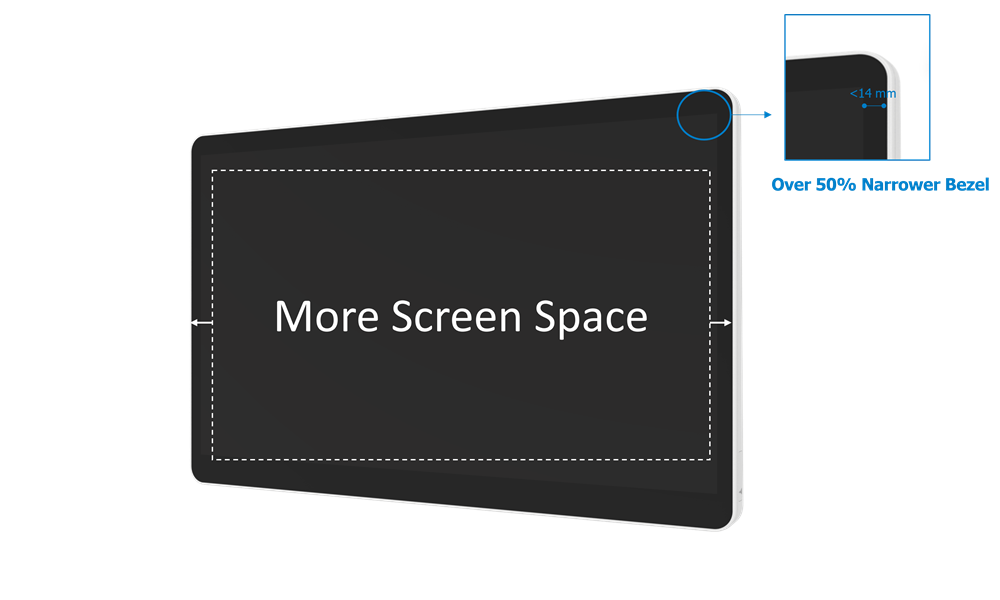

Ultra-Narrow Bezel Design

Over 50% narrower bezel design, compared to previous model, maximizes viewing area for AI-enhanced clinical visualization.

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® 15th Gen Arrow Lake Processor
Intel® Core Ultra 5 225U 1.5GHz
Intel® Core Ultra 7 255U 2.0GHz

System Memory

Two 262-pin DDR5 5600MHz SO-DIMM socket,
supports up to 96GB

I/O Chipset

IT5782VG

TPM

NuvoTon NPCT750AADYX support SPI TPM 2.0

OS Support

Win11/ Linux

Expansion

M.2

1 x M.2 Key B 2280 for AI accelerator card (PCIex2)
1 x M.2 Key E 2230 for WIFI

Other Expansion

1x IET expansion (optional)

PCIe

1x PCIe x4

Storage

M.2

2 x M.2 Key M 2280 (PCIex4) for storage

Display

LCD Size

21.5"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

274.5 x 274.5

Luminance

250 cd/m2

Contrast ratio

1000:1

Viewing angle

178°/ 178°

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

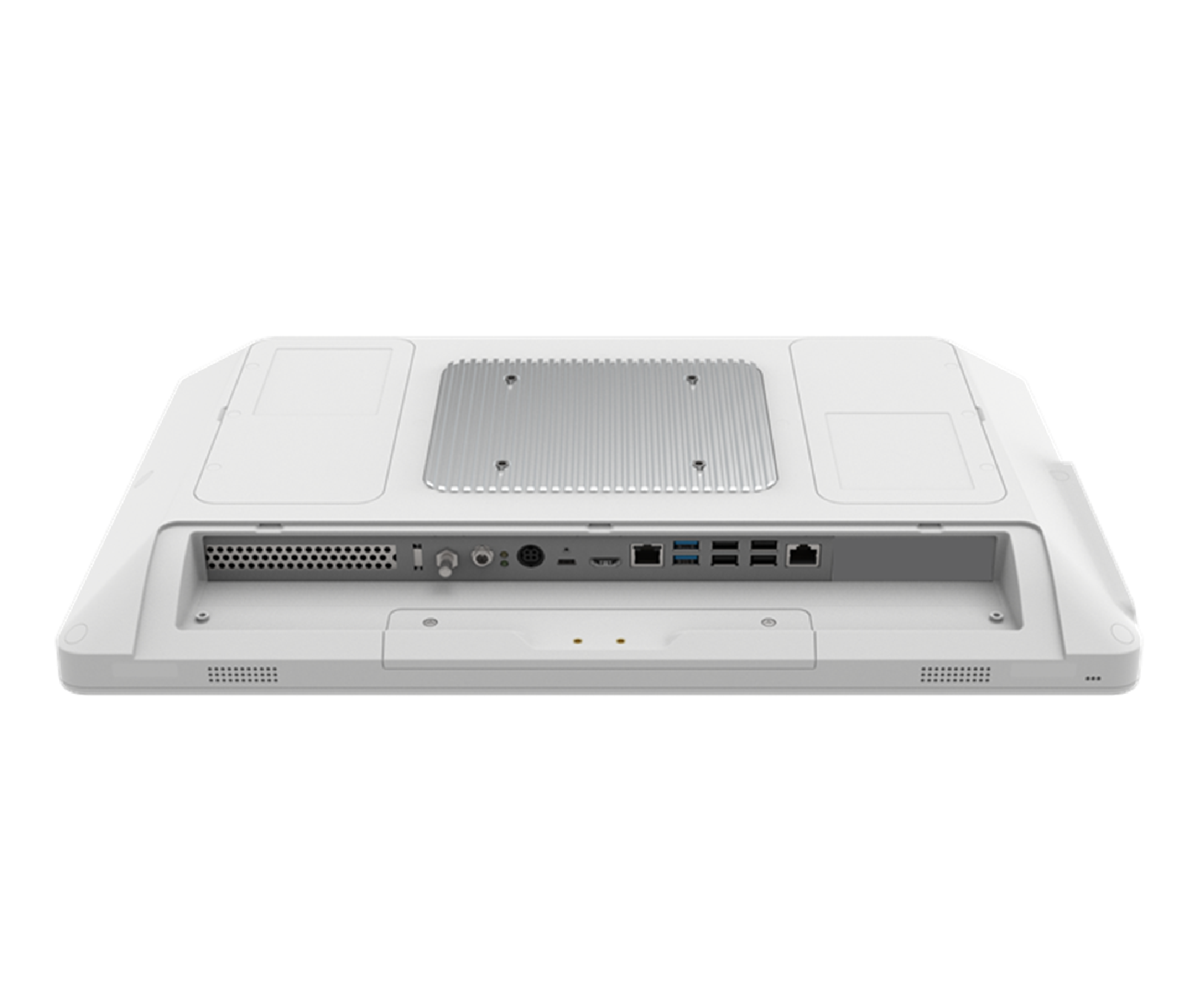

I/O Ports

USB Port

4x USB 2.0
2x USB 3.2
1x USB type C (Output: USB 3.1, display, 5V/3A 15W)

LAN Port

1 x RJ-45

COM Port

1 x RS-232/422/485 (RJ-45 type)

Video Output

1x HDMI

Audio Port

1 x Audio Combo Jack

Audio

Speaker Output

2 x2W, optional: 10W sound bar

Microphone

Optional: noise-cancelling microphone

Ethernet

LAN Chipset

1x Intel®I226LM

Ethernet Interface

10/100/1000/2500Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT5.4 module

WLAN

Optional 802.11abgn+acR2+axR2+be MIMO 2x2 Wi-Fi 7

Data Collection

Camera

Optional 5.0M AF camera

NFC

Built-in NFC module

RFID

Optional Imprivata RFID

Barcode Scanner

Optional 2D barcode scanner

Power Requirement

DC Input

+24V

DC Input Connector

Lockable DC Jack

Adapter

Input:100~240Vac/50~60Hz; Output: 180W 24V/5A medical power adapter

Battery

Optional built-in Li-ion battery (49 Wh)

Certification

Certification Information

CE : IEC/EN60602-1 (Safety),IEC/EN60601-1-2 (EMC)
FCC : Part 15class B
UL60601-1

Mechanical & Environmental

Dimension (mm)

510 x 321 x 55 (w/o add-on modules)

Weight (kg)

5.4

Construction

Plastic

Color

White

Finishing

Anti-microbial

Mounting

75 x 75/ 100 x 100 mm

Operating Temp.

0°C ~40°C(32°F ~104°F)

Operating Humidity

40°C @ 90% relative humidity, non-condensing

Storage Temp.

-20°C ~60°C (-4°F ~140°F)

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

IP Rating

Front IP65; back: IP54 (standard model)

Part No.

Description

HID-2146-B1-22-A1R

21.5" Arrow Lake Medical Multi-Touch Panel PC, Intel Core Ultra 5 225U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter

HID-2146-B1-25-A1R

21.5" Arrow Lake Medical Multi-Touch Panel PC, Intel Core Ultra 7 255U/8GB Memory/USBC/HDMI/NFC/DC Out/6USB/LAN/COM/SPK/180W Medical adapter

Part No.

Description

RCC-HID-SB-01R

10W Slim Sound Bar

RCC-HID-CAM-01R

5.0M Camera Module

RCC-HID-CAM-02R

5.0M Camera & AI Array MIC

RCC-HID-BAT-04R

Internal Backup Battery

RCC-HID-WIFI-02R

HID-2146 WiFi Module Kit

RCC-CAP-PCIE-04R

Yuan SC710N1-L 12G-SDI+HDMI2.0

RCC-CAP-PCIE-05R

Magewell Pro capture AIO 4K PCIe Gen2 x4

ACC-M2-80-AI-01R

Hailo-8 2280 B+M Key M.2 Module AI Card

BCC-GPU-T400E-01R

NVIDIA T400E 4GB/30W

BCC-PCIE-LAN-01R

Intel X550-T2 10G Network Card

RCC-HID-PCIE-04R

U-1900 PCIe 4 Ports USB 3.1 Gen 2 Card 4 x USB 10Gbps Type-A
