HID-1540

15.6" Medical Panel PC For Critical Care Device With IEC 60601-1-8 Compliant Hardware Alarm Design

INTRODUCTION

DATASHEET

GET A QUOTE

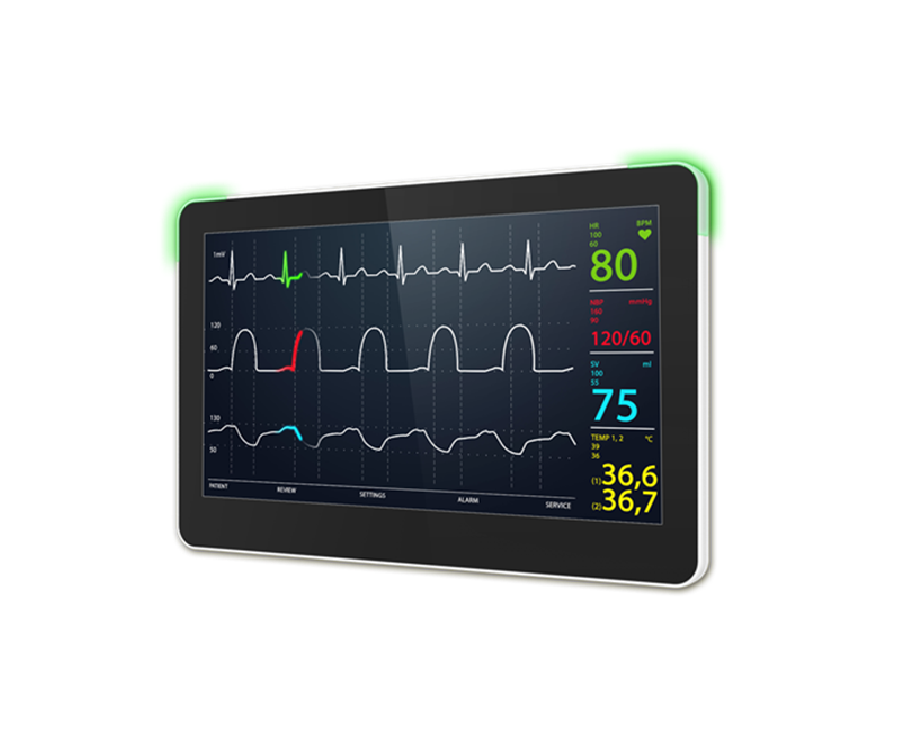

IEC 60601-1-8 compliant visual & sound alarm design: LED light bar & 2x5W speakers

Front full flat IP65 cover & chassis with anti-microbial finish for strict disinfection requirements

Socketed Intel® 12/13th Gen Alder Lake-PS Core™ i7/i5/i3 processor supported

COM port reserved for reliable connection to vital sign device

Rich USB ports for flexible peripheral device connection, USB type C incl.

CE/FCC/Medical UL certified

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

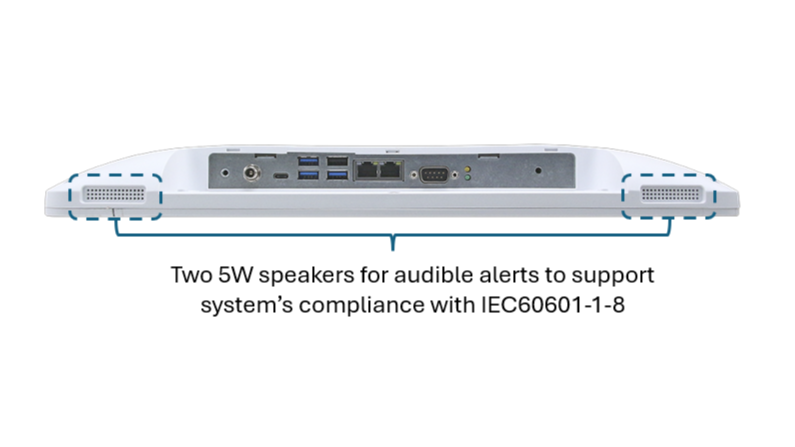

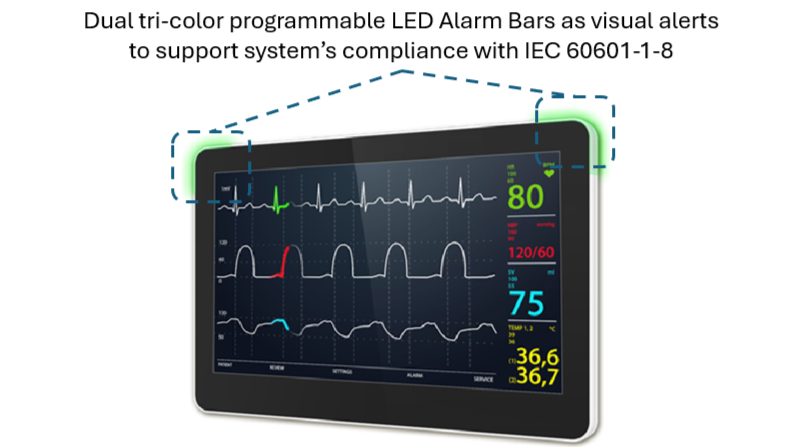

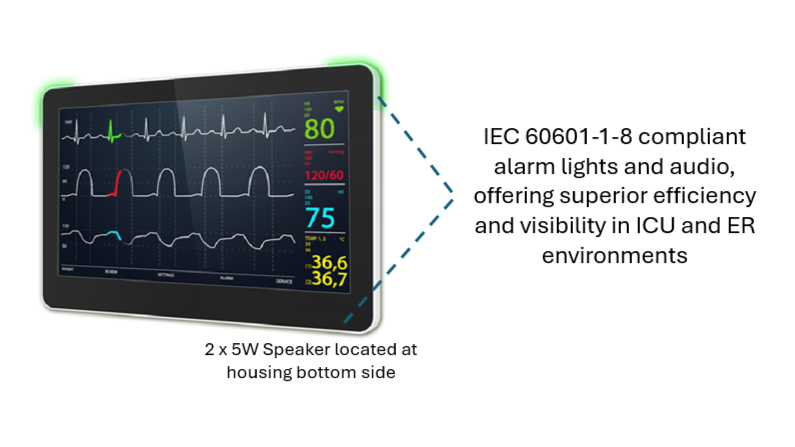

IEC-60601-1-8 Compliant – has dual tri-color programmable LED Alarm Bars (on both sides of the display) with integrated two 5W speakers for audible alerts

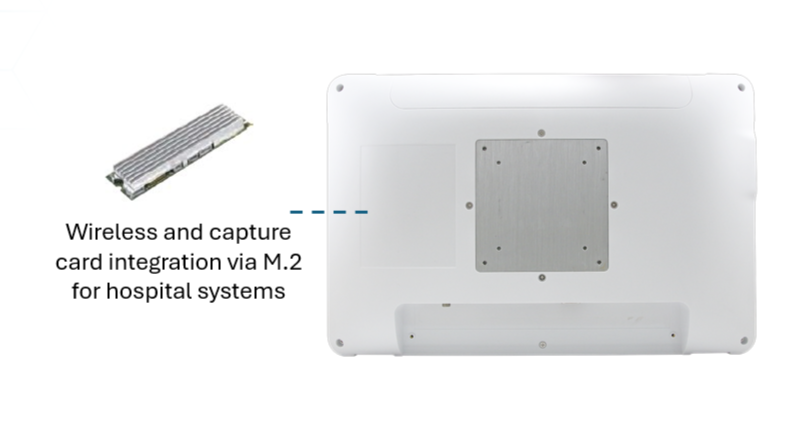

M.2 Expansion Slots – M.2 Key B, M, and E for wireless integration, storage expansion, and imaging via capture cards to tailor the system to specific healthcare requirements.

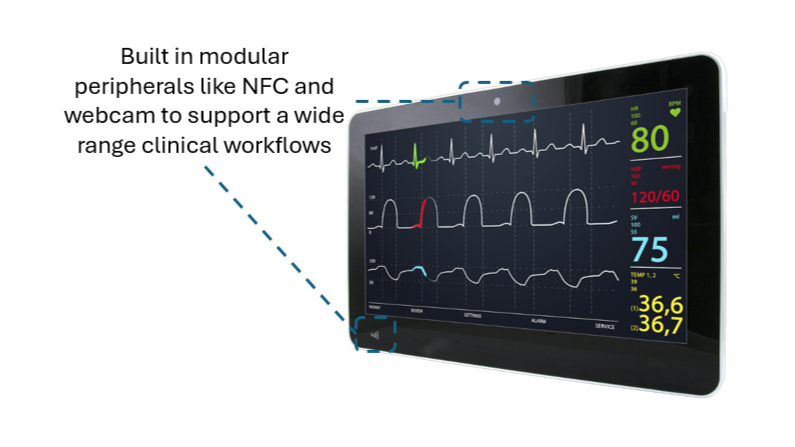

Modular Expansion System – built-in peripherals like NFC, webcam, and optional WIFI modules to support a wide range of clinical workflows

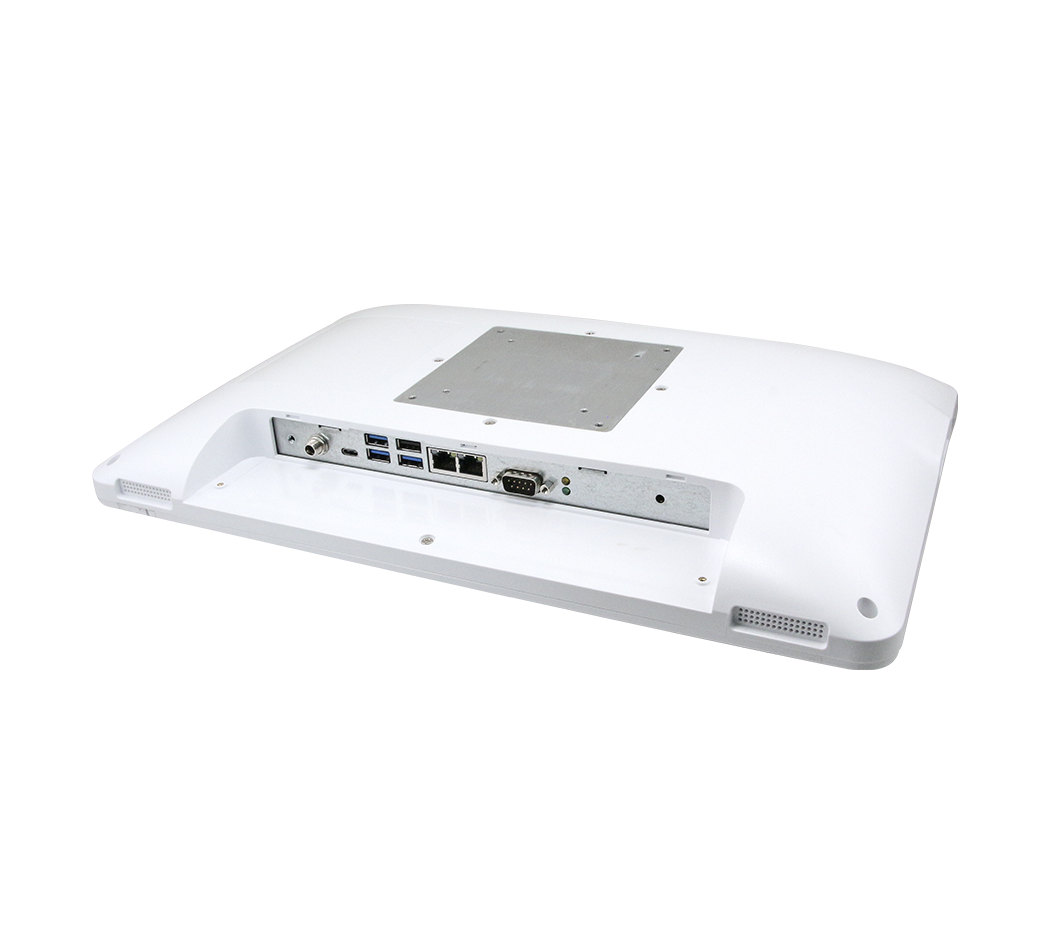

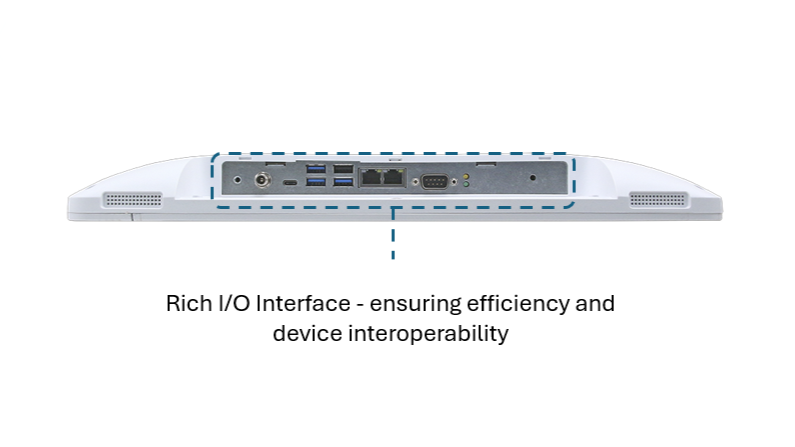

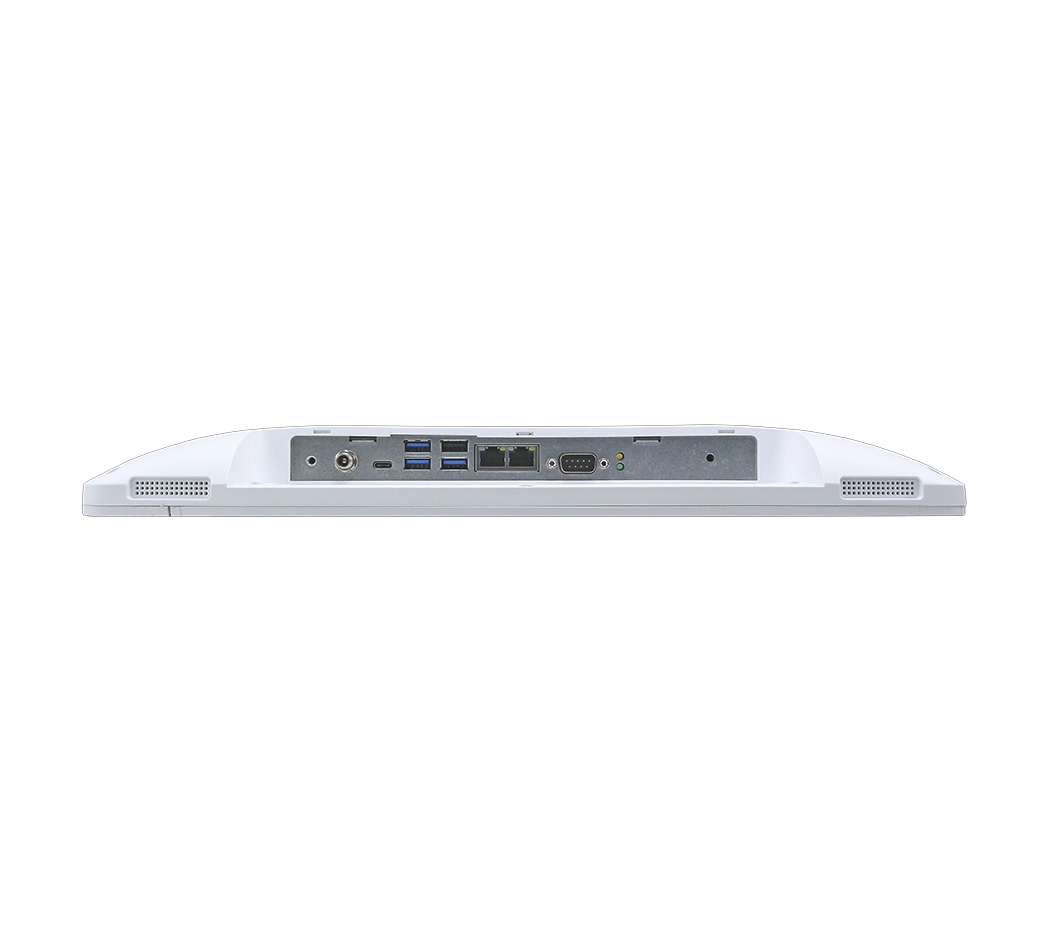

Rich I/O interface – features 1 x COM port, 1 x USB 2.0, 3 x USB 3.2, and Type-C display output ensuring both efficiency and device interoperability

Device Applications

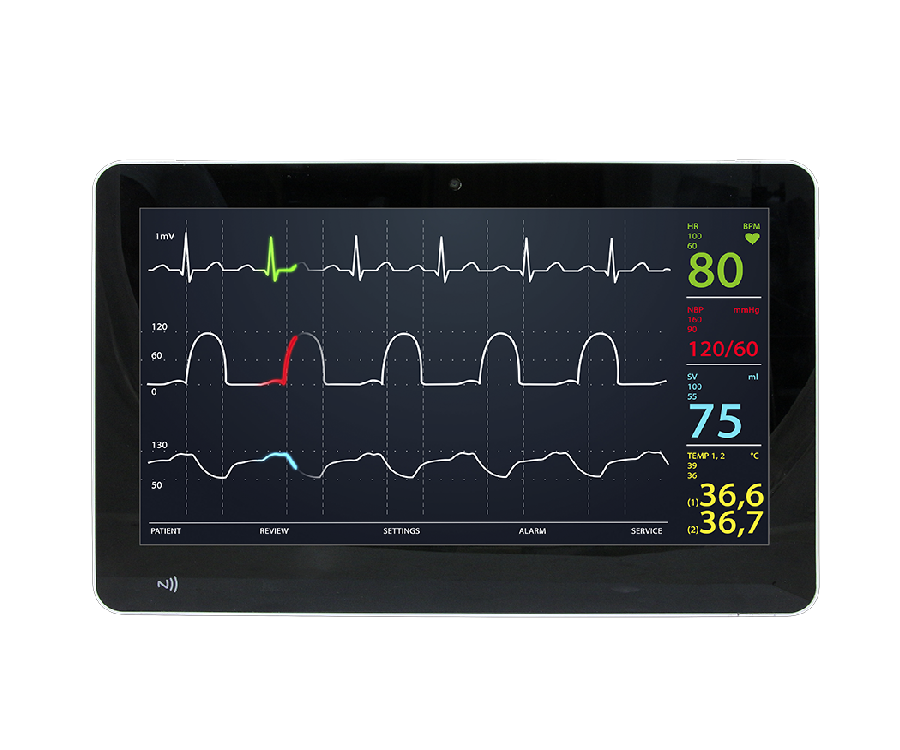

Critical Care Monitoring – designed with IEC 60601-1-8 compliant alarm lights and audio, high-speed I/O, it offers superior efficiency and visibility in ICU and ER environments

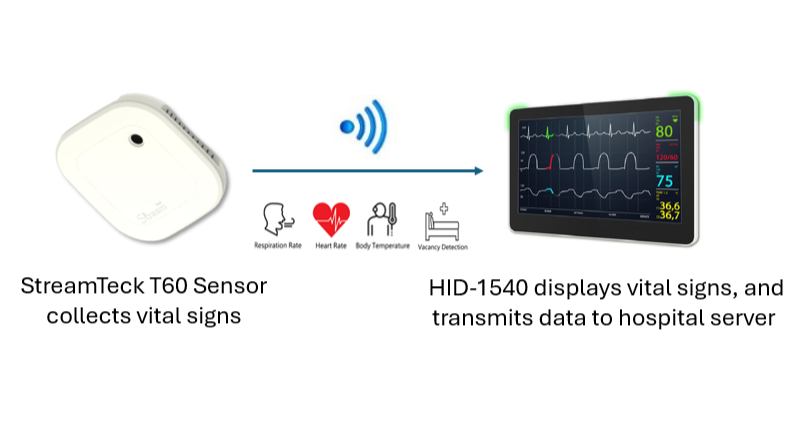

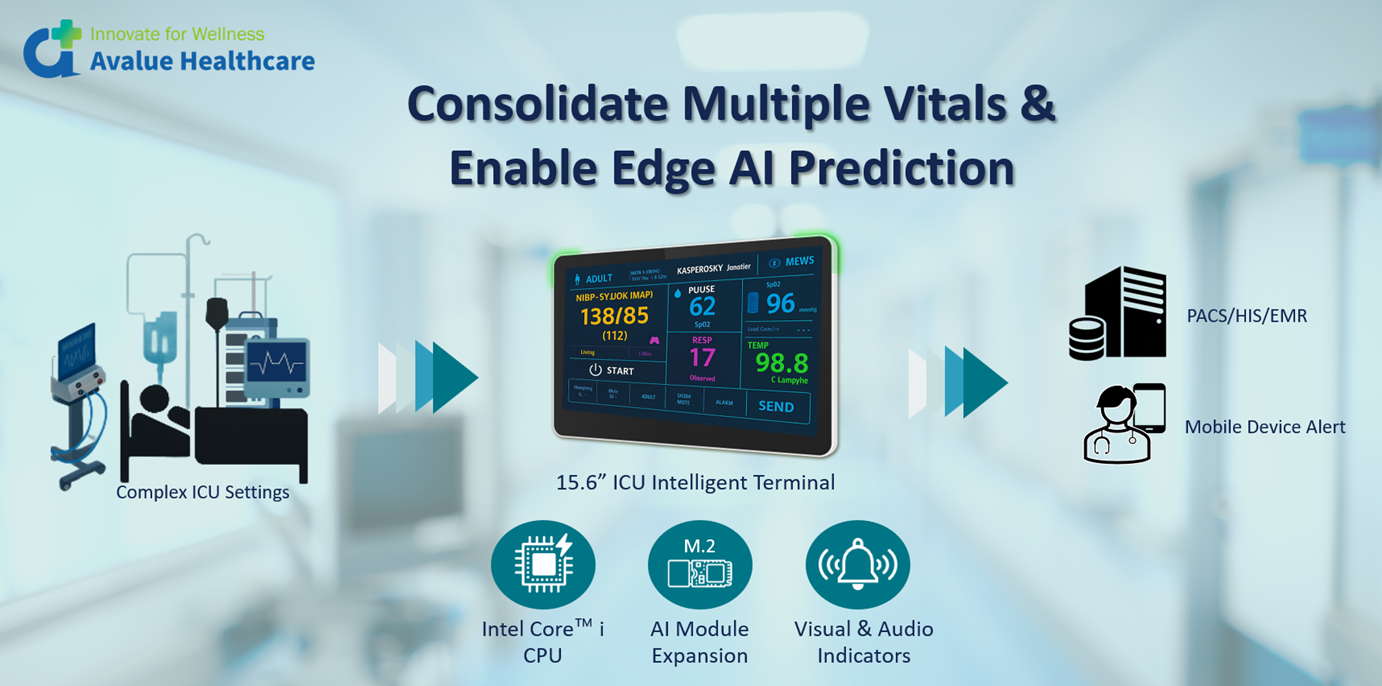

Seamless Vital Sign Integration – paired with StreamTeck T60 sensor, the sensor transmits measurements real-time directly to HID-1540, streamlining continuous bedside monitoring

AI-Acceleration Ready – M.2 expansion supports integration of AI Accelerator module enabling edge inference for real-time medical imaging and anomaly detection

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

12th Generation Intel® Core™ i7/i5/i3 Processor

Platform Controller Hub

Integrated in Processor (SOC)

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max (Min 8GB)

I/O Chipset

IT5782VG

Watchdog Timer

H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU temperature monitoring voltage monitoring

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0

OS Support

Win10 / Win11 / Linux

Expansion

M.2

1 x M.2 Key B 3042/3052/2280/2242 slot (for 5G module or storage)
1 x M.2 Key E slot for WiFi module

Storage

M.2

1 x Key M 2280 slot for storage
1 x Key B 2242 slot for storage (SATA)

Display

LCD Size

15.6"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

0.17925 x 0.17925mm

Luminance

300 cd/m2

Contrast ratio

1000:1

Viewing angle

178°/ 178°

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

I/O Ports

USB Port

1 x USB 2.0
3 x USB 3.2
1 x USB Type C

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485

Audio

Audio Interface

Audio combo jack

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

Indicator

LED Indicator

2 x tri-color LED light bar

Ethernet

LAN Chipset

1 x Intel® I225LM 2.5 GbE Ethernet
1 x Intel® I226LM by 2.5 GbE Ethernet

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT5.2 module

WLAN

Optional 802.11abgn+acR2+axR2 Wi-Fi 6E module

Data Collection

NFC

Built-in NFC module

Camera

Front 5.0M AF camera

Power Requirement

DC Input

+19V

DC Input Connector

Lockable DC Jack

Adapter

Medical grade
Input: 100-240V, 2.0-1.0A, 50-60Hz
Output: 90W adapter (19V/4.73A)

Certification

Safety

CE : IEC/EN60601-1-2 FCC : Part 15 Class B UL60601-1

Mechanical & Environmental

Dimension (mm)

400 x 263 x 42.5

Weight (kg)

2.8

Construction

Plastic

Color

White

Finishing

Anti-Microbial

Mounting

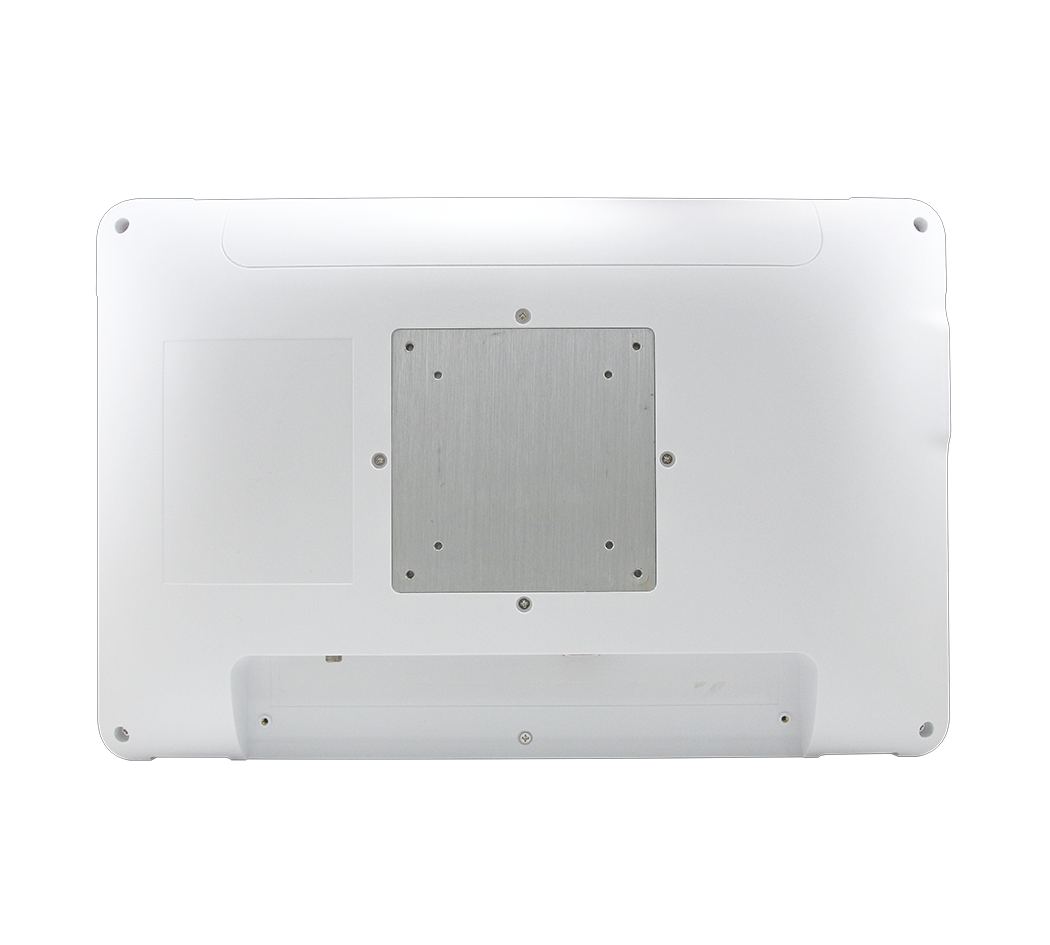

VESA 75 x 75/ 100 x 100 mm

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

0% ~ 90% Relative Humidity, Non-condensing

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

System Fan

Fanless

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

IP Rating

Front IP65
Back IP54

Ordering Information

HID-1540-121-A1R
15.6" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i3-1215UL/8GB Memory/NFC/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/LED/medical 19V adapter
HID-1540-123-A1R
15.6" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i5-1235UL/8GB Memory/NFC/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/LED/medical 19V adapter
HID-1540-125-A1R
15.6" Alder Lake Medical Multi-Touch Panel PC,Intel Core 12th i7-1255UL/8GB Memory/NFC/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/LED/medical 19V adapter
E971XHI1540000R
WiFi module KIT for HID-1540
ACC-ARM-D41R
VESA Stand 75/100 CA-MT01-07 White
Power Cord:
EU E170203183DR
US E1702031835R
JP E170203183BR
UK E170P060370R
AU E170P060392R

BIOS

Chipset

Audio

Graphics

LAN

Design Document

Manual

Other Driver

BIOS

No.

Title

Description

Operating System

Release Date

Download

HID-1540

(H1540-08)HID-1540 BIOS 1.10 CS:09B1H,P/N:E1512H50101R

2025.02.10

HID-1540

(H1540-07)HID-1540 BIOS 1.00 CS:43CCH,P/N:E1512H50100R

2024.09.24

Chipset

No.

Title

Description

Operating System

Release Date

Download

Intel Chipset Driver for Win10/Win11 x64

Windows 11 64bit Windows 10 64bit

2025.02.12

Audio

No.

Title

Description

Operating System

Release Date

Download

Realtek Audio Driver for Win10/Win11 x64

Windows 11 64bit Windows 10 64bit

2025.01.23

Graphics

No.

Title

Description

Operating System

Release Date

Download

Intel Graphics Driver for Win10/Win11 x64

Windows 11 64bit Windows 10 64bit

2025.01.23

LAN

No.

Title

Description

Operating System

Release Date

Download

Intel LAN Driver for Win10/Win11 x64

Windows 11 64bit Windows 10 64bit

2025.01.23

Design Document

No.

Title

Description

Operating System

Release Date

Download

HID-1540_Mechanical Drawing

2024.09.24

Manual

No.

Title

Description

Operating System

Release Date

Download

HID-1540 1st Quick Reference Guide

2024.10.25

Other Driver

No.

Title

Description

Operating System

Release Date

Download

HID-2340 Wifi Driver

Intel AX210 Wifi 6 Driver

Windows 11 64bit Windows 10 64bit

2025.03.10

Intel SerialIO 30.100.2237.26_v2

Windows 11 64bit Windows 10 64bit

2025.02.20

Intel ISST Driver

Windows 11 64bit Windows 10 64bit

2025.01.23

NFC Driver

Windows 11 64bit Windows 10 64bit

2025.01.23

No.

Title

Description

Operating System

Release Date

Download

Intel ME Driver for Win10/Win11 x64

Windows 11 64bit Windows 10 64bit

2025.01.23
