HID-2340

23.8" Medical Panel PC as Imaging Capture Terminal, with IET Expansion

INTRODUCTION

DATASHEET

GET A QUOTE

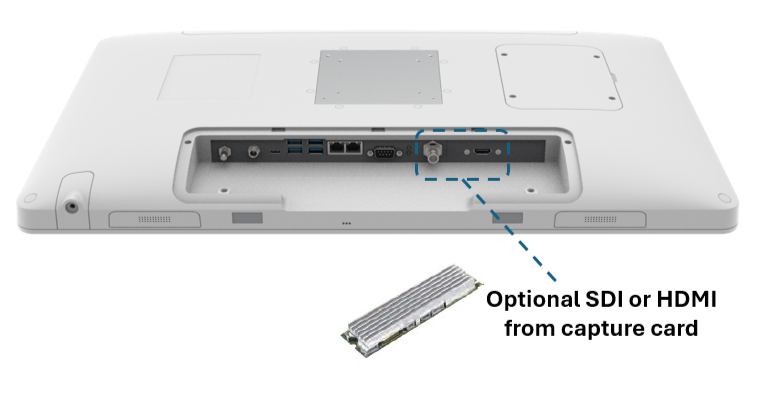

Capture card integration options for medical imaging capturing & processing

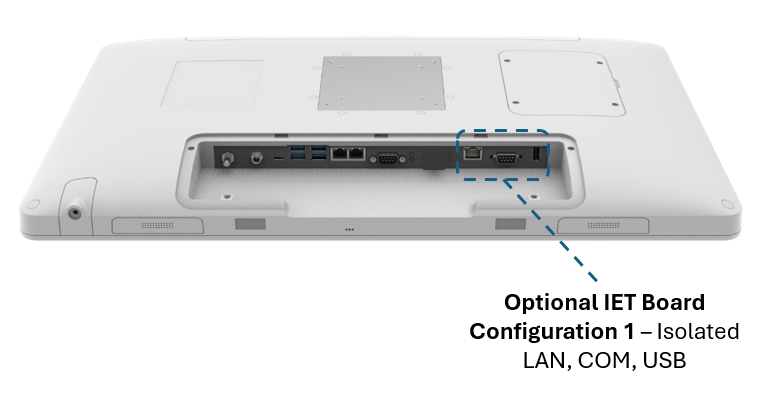

Isolated USB/COM/LAN expansion via IET module for strict clinical requirement

HDMI/Audio/USB2.0/Mini PCIe/COM expansion via IET module to enhance versatile connectivity

Intel® 13th Gen Core™ i7/i5 Processor supported

Rich USB ports for flexible peripheral device connection, USB type C & 3 x USB 3.2 Gen 2 incl.

COM port reserved for reliable connection to medical device

CE/FCC/Medical UL certified

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

Medical Grade Safety – safe to use around patients and sensitive equipment

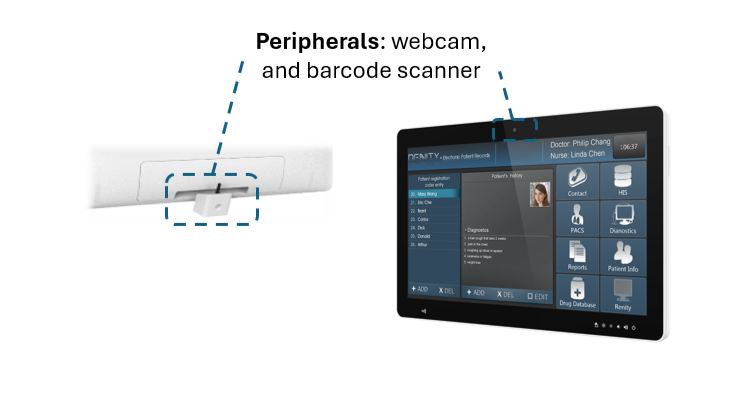

Modular Expansion System – peripherals like barcode scanners, webcam, and WIFI to support a wide range of clinical workflows
IET (Intelligent Expansion Technology) Card Support – supports HDMI/video output, and enables customized and isolated I/O ports offering flexibility for diverse medical needs

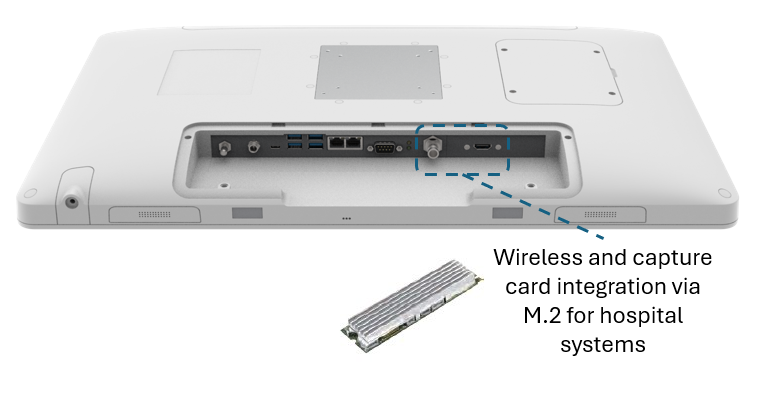

M.2 Expansion Slots – M.2 Key B, M, and E for wireless integration, storage expansion, and imaging via capture cards to tailor the system to specific healthcare requirements

Device Applications

Medical Cart Integration – lightweight and slim design fits seamlessly onto medical mobile carts for tasks like beside data entry, vitals logging, and barcode scanning

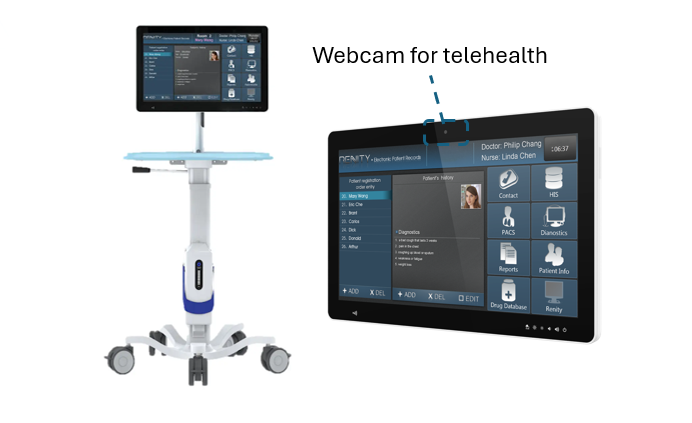

Telehealth – allowing patients to remotely receive medical consultations, critical in emergency situations where urgent care would traditionally require an in-person visit

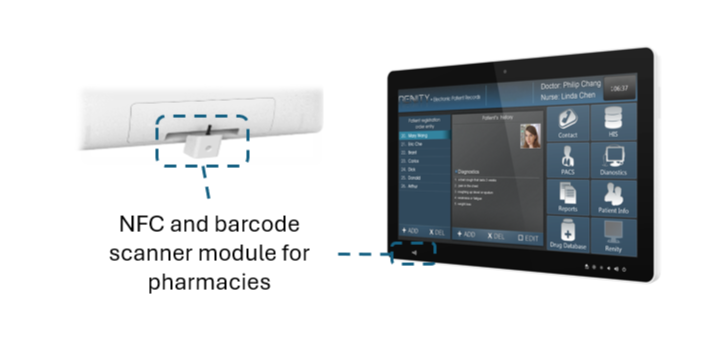

Pharmacy – enables medication management through integration with barcode, NFC, and authentication tools for tasks like medication verification and inventory controls

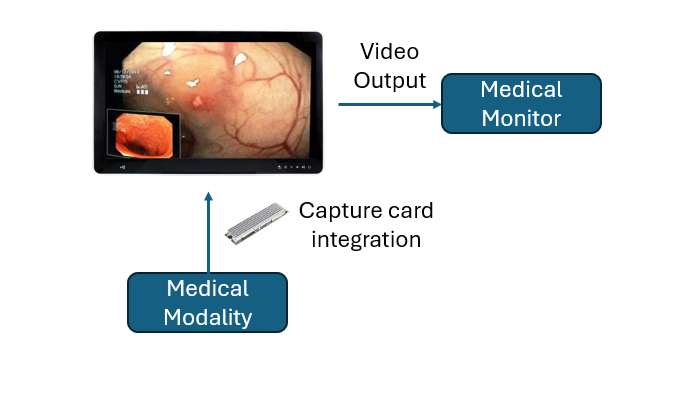

Medical Imaging Terminal – M.2 slots supports wireless modules, and capture card integration, enabling real-time data access and seamless connectivity across hospital systems

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Socket Raptor Lake-PS Intel® Core™ Processor
Intel® Core™ i5 processor 120UL
Intel® Core™ i7 processor 160UL

Platform Controller Hub

Integrated in processor (SOC)

System Memory

One 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB max (min 8GB)

I/O Chipset

IT5782VG

Watchdog Timer

H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

TPM

Onboard NuvoTon NPCT754AADYX support TPM 2.0

OS Support

Win10 / Win11/ Linux

Expansion

M.2

1 x M.2 Key B 3042/3052/2280 slot
1 x M.2 Key E slot for WIFI

Other Expansion

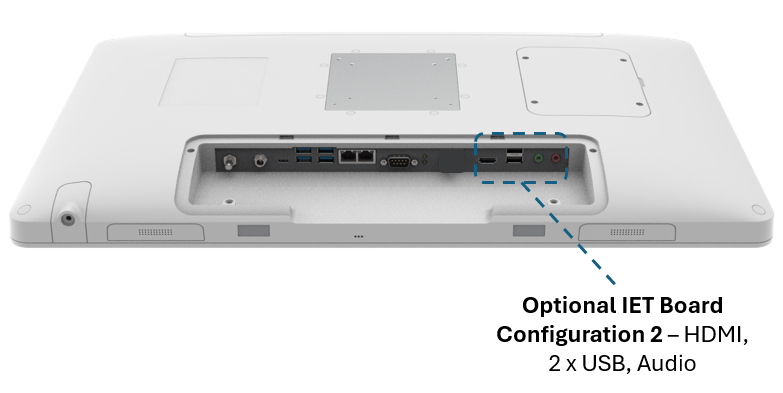

1 x IET expansion
(Optional LAN/COM/USB isolation board or I/O extension board for selection)

Storage

Solid State Drive

1 x 2.5" SATAIII SSD

M.2

1 x Key M slot for storage

Display

LCD Size

23.8"

Display Type

Full HD

Resolution

1920 x 1080

Pixel pitch

274.5 x 274.5

Luminance

250 cd/m2

Contrast ratio

3000:1

Viewing angle

178°/ 178°

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Light Transmission

85%

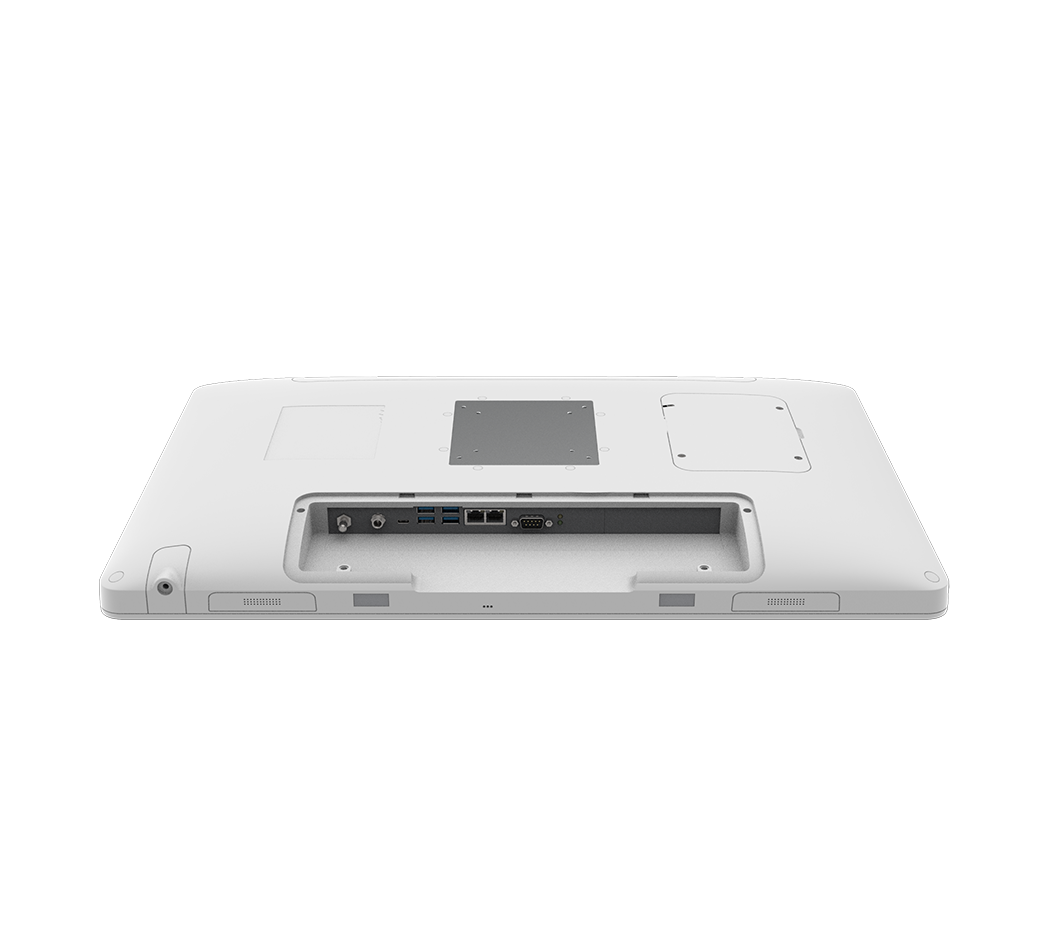

I/O Ports

USB Port

1 x USB 2.0
3 x USB 3.2 Gen 2
1 x USB type C (Output: USB 3.1, display, 5V/3A 15W)

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet

LAN Chipset

1 x Intel® I225LM 2.5 GbE Ethernet
1 x Intel® I226LM 2.5 GbE Ethernet

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional BT5.2 module

WLAN

Optional 802.11abgn+acR2+axR2 Wi-Fi 6E module

Data Collection

NFC

Built-in NFC module

Camera

Built-in front 5.0M AF camera

Power Requirement

DC Input

+24V

DC Input Connector

Lockable DC Jack

Adapter

Medical grade
Input: 100-240V~, 2.0-1.0A, 50-60Hz
Output: 120W adapter (24V/5A)

Certification

Safety

EMC IEC/EN60601-1-2 & Safety IEC/EN 60601-1
FCC : Part 15 Class B
UL: AAMI ES60601-1
cUL: CAN/CSA-C22.2 No. 60601-1
CCC

Mechanical & Environmental

Dimension (mm)

592 x 382 x 49.5

Weight (kg)

Construction

Plastic

Color

White

Finishing

Anti-microbial

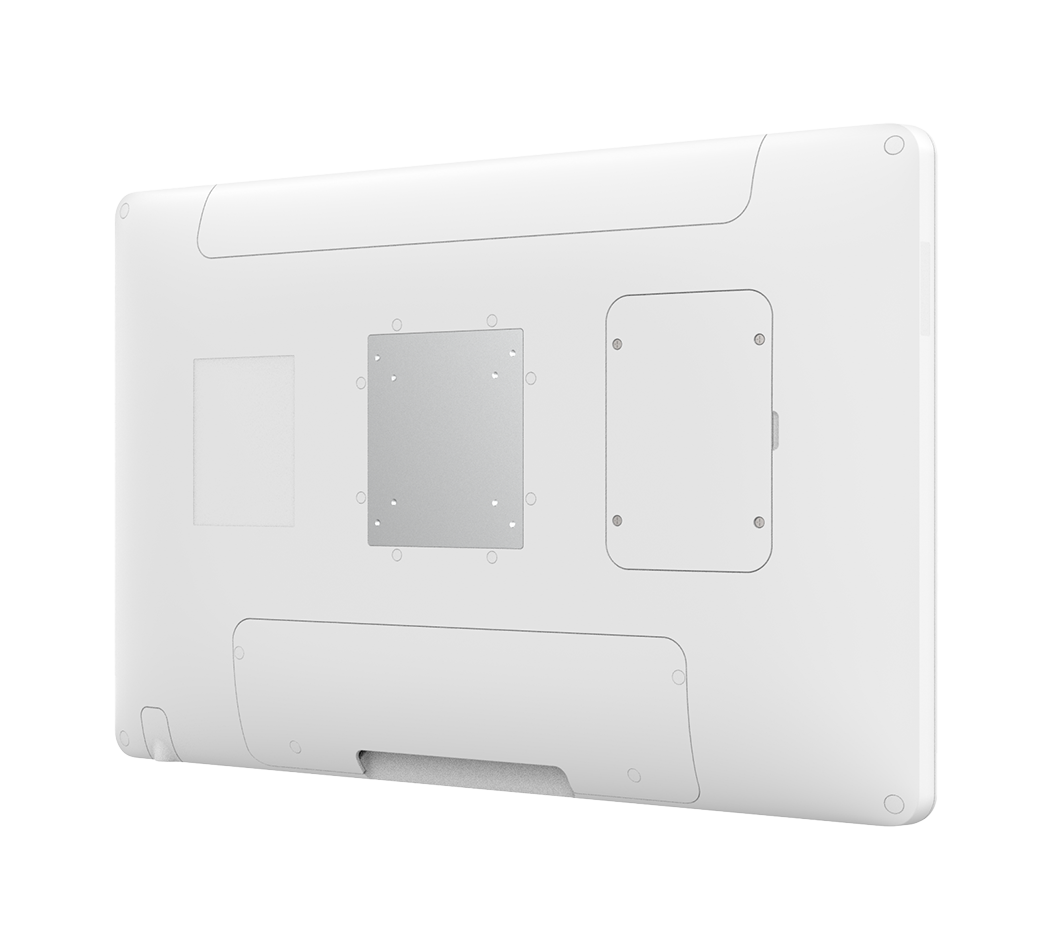

Mounting

VESA 75 x 75/ 100 x 100 mm

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

System Fan

Fanless

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms

IP Rating

Front IP65
Back IP54

Ordering Information

HID-2340-120-B3R
23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core i5 120UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
HID-2340-160-B3R
23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core i7 160UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
E971XHI2340003R
WiFi module KIT for HID-2340
RCC-HID-BCSCAN-01R
Barcode scanner kit for HID/APC
ACC-ARM-D55R
HID White Stand VESA 100x100/ 75x75
E9697H10201R-A
DIP HID-2132 DB-A A1 isolation board with LAN/COM/USB
E9697H30002R-B-98
DIP HID-2340 DB-B A1 HDMI/2xAudio/2xUSB 2.0/Mini PCIe/COM
E1702031000R EU Power Cord
E1702031833R US Power Cord
E170203183CR JP Power Cord
E170P060380R UK Power Cord
E1702031831R AU Power Cord
E170P060391R CN Power Cord
