HID-1337

13.3" Medical Panel PC with Low-Power CPU and IEC 60601-1-8 Compliant Hardware Alarm Design

INTRODUCTION

DATASHEET

GET A QUOTE

IEC 60601-1-8 compliant visual & sound alarm design: LED light bar & 2x5W speakers

Front full flat IP65 cover & chassis with anti-microbial finish for strict disinfection requirements

Onboard Intel Alder Lake-N processor satisfies low-power consumption requirement and scenarios

COM port reserved for reliable connection to vital sign device

Rich USB ports for flexible peripheral connection, USB type C included for video output

12V ~ 36V wide voltage DC in

CE/FCC/Medical UL certified

Introduction

Specification

Document

Product Introduction

Below is the basic introduction and description of the product’s uses and other relevant information.

Device Features

CE/FCC/Medical UL certified – safe to use around patients and sensitive equipment

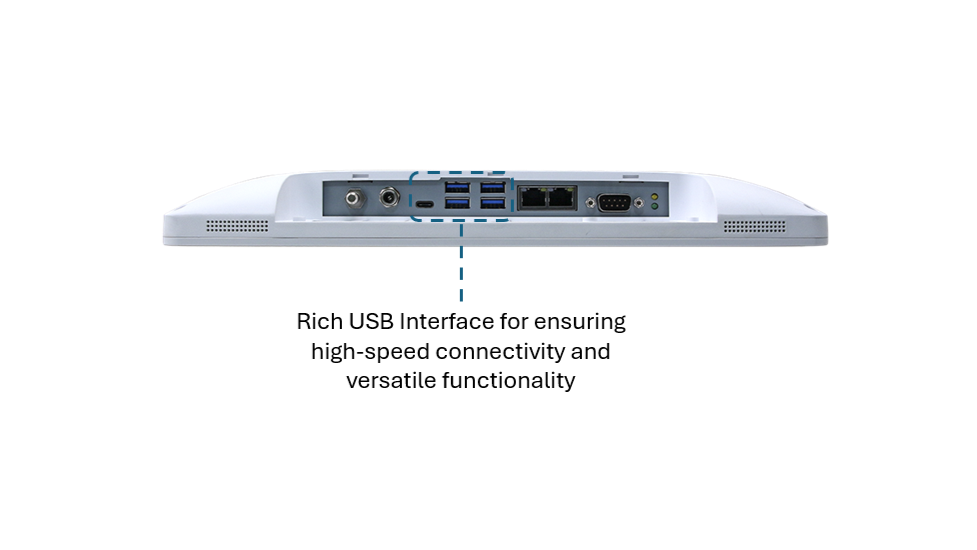

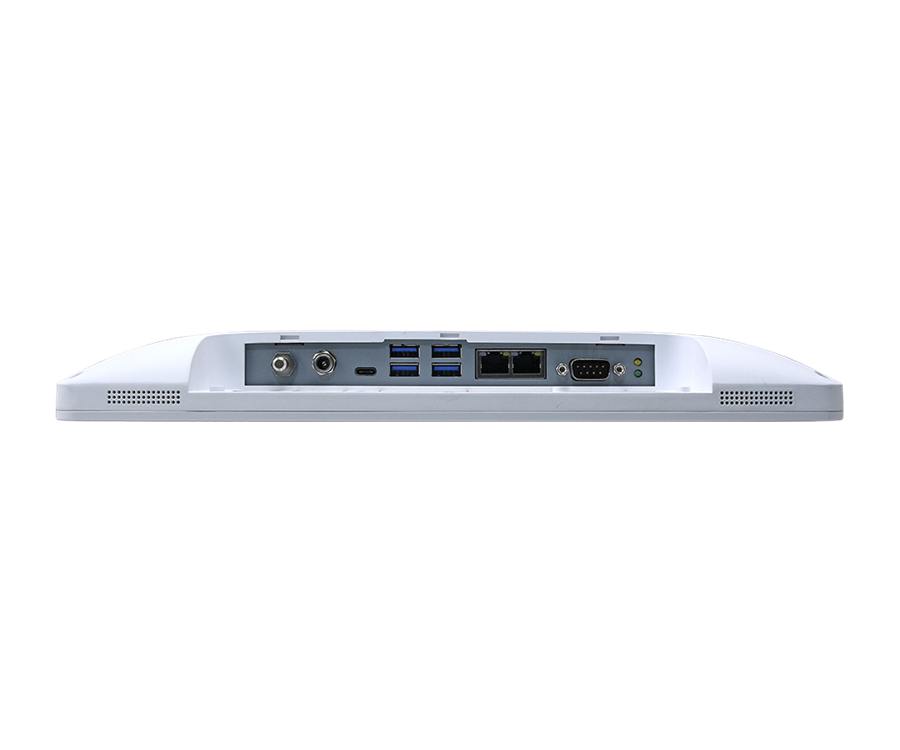

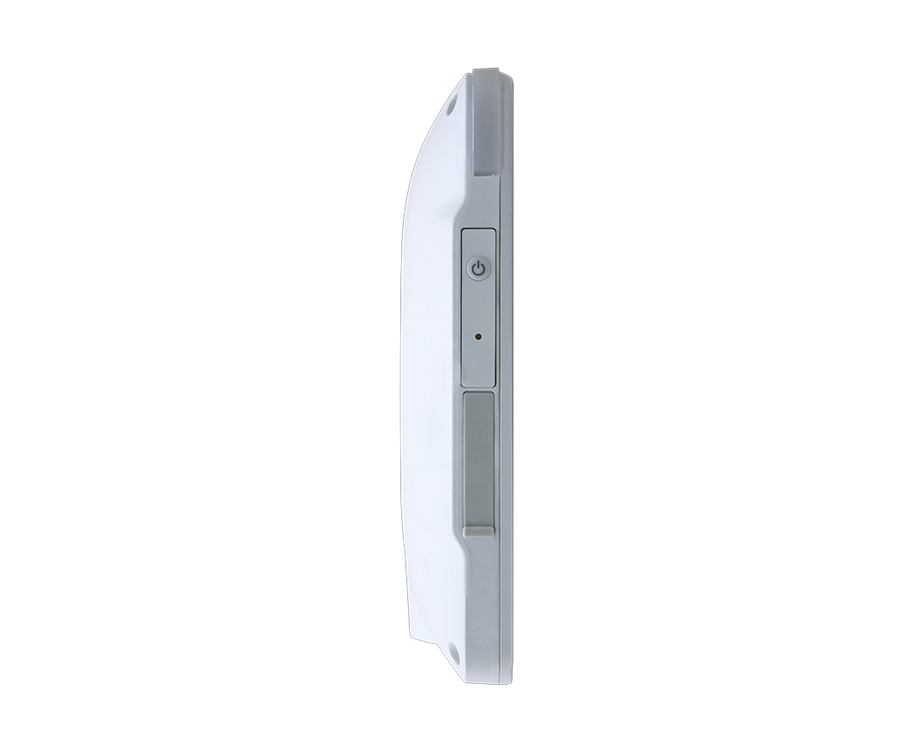

Rich USB Interface – 4 x USB 3.2 (bottom), 2 x USB 3.0 (side), and 1 x USB Type C supporting USB, display, and 15 (5V/3A) power output, ensuring high-speed connectivity and versatile functionality

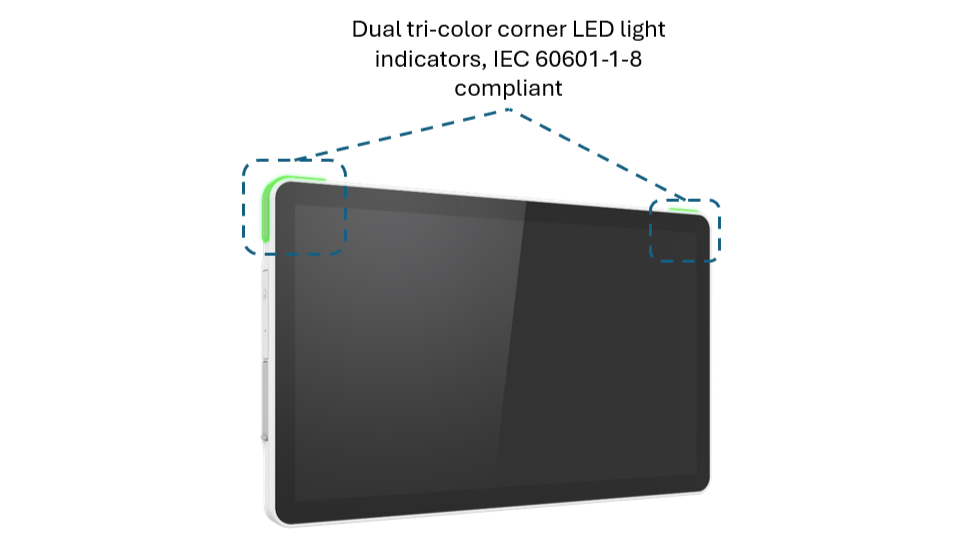

IEC-60601-1-8 Compliant – has dual tri-color corner LED light indicators with integrated two 5W speakers for audible alerts

Energy-efficient and versatile – powered by Intel Alder Lake-N processor for low-power performance, with wide 12V-36V input supporting ensuring stable operation across diverse environments

Device Applications

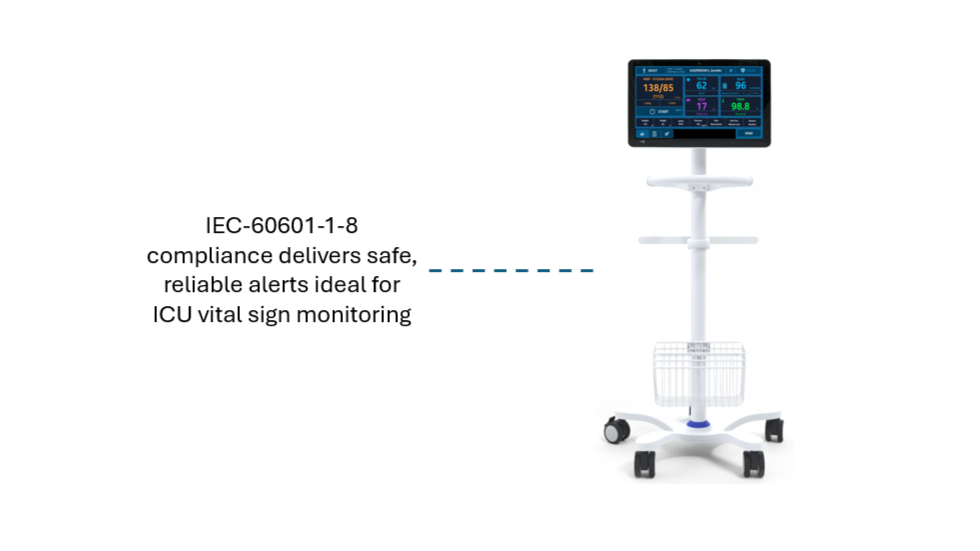

ICU Vital Sign Monitoring Stand – designed with IEC 60601-1-8 compliant alarm lights and audio, high-speed I/O, it offers superior efficiency and visibility in ICU and ER environments

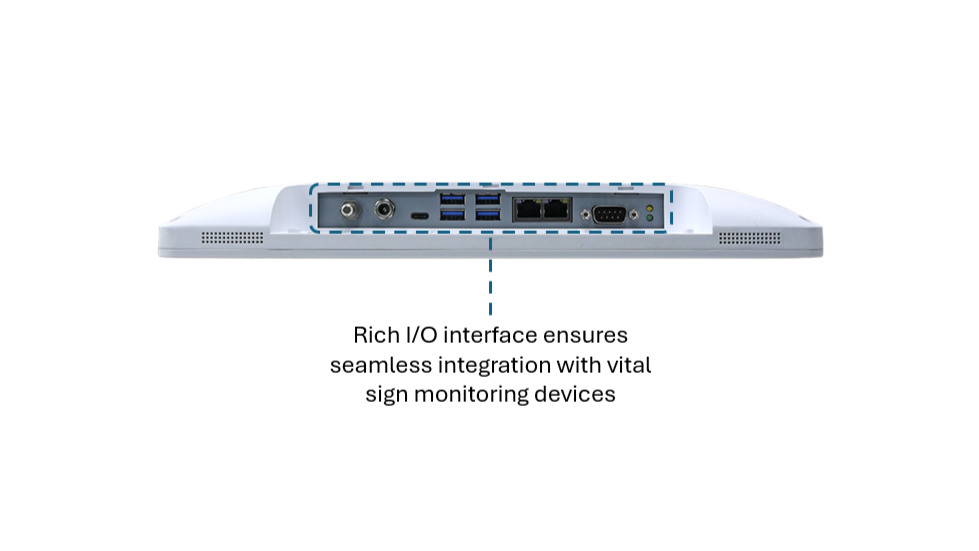

Mobile Point-of-Care Device Integration – rich USB interface enables seamless connectivity between medical instruments, and sensors, streamlining workflows and data sharing

Product Specification

Expand the section to view detailed technical specifications and features of the product.

System Information

Processor

Intel® Alder Lake-N Processor
Intel® Processor N97, 6M Cache, up to 3.60 GHz (12W)

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB

I/O Chipset

EC-ITE: IT5782VG

Watchdog Timer

H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and voltages monitoring

TPM

TPM 2.0

OS Support

Win 10/11, Linux

Expansion

M.2

1 x M.2 Key E 2230 slot (PCIex1, USB2.0)

Storage

M.2

1 x M.2 Key B 2242/3042/3052 for storage (SATAIII)

Display

LCD Size

13.3"

Resolution

1920 x 1080

Pixel pitch

0.153 x 0.153

Luminance

300 cd/m2

Contrast ratio

600 : 1

Viewing angle

178°/ 178°

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points

I/O Ports

USB Port

4 x USB 3.2 at bottom
2 x USB 3.0 at side
1 X USB Type C (USB, display, 5V/3A 15W power output)

LAN Port

2 x RJ-45

COM Port

1 x DB-9 COM1
RS-232(default)/422/485, selectable by BIOS & JUPMER,
RS-485 supports Auto Flow, Pin-9 selected by JUPMER for Ring(default)/+5V/+12V

Audio

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

Indicator

LED Indicator

2 x tri-color corner LED light indicator

Ethernet

LAN Chipset

2 x Intel® I226LM 2.5 GbE Ethernet

Ethernet Interface

10/100/1000/2500 Base-Tx GbE compatible

Wireless Communication

Bluetooth

Optional Wi-Fi + bluetooth 5.0 USB module

WLAN

Optional Wi-Fi + bluetooth 5.0 USB module
(Intel Wi-Fi 6E AX210 with PCB Antenna)

Power Requirement

DC Input

24V (12V~36V DC in support)

DC Input Connector

Lockable DC Jack

Adapter

Medical grade
Input: 100-240V AC/ 50-60Hz
Output: 72W adapter (24V/3A)

Certification

Safety

CE : IEC/EN60601-1-2
FCC : Part 15 class B
UL60601-1

Mechanical & Environmental

Dimension (mm)

198 x 325 x 38

Weight (kg)

1.8

Construction

Plastic

Color

White

Finishing

Anti-microbial

Mounting

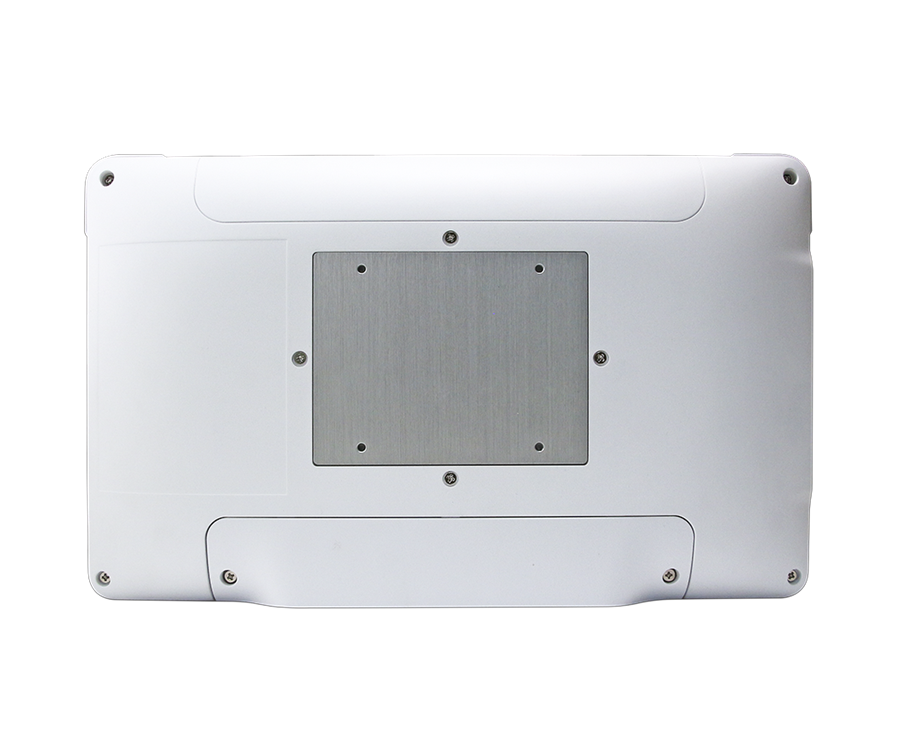

VESA 75x75 mm

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

System Fan

Fanless

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, radom, 5~500Hz, 30min/axis

Shock Test

With CF/SSD: 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

Package drop test
Reference ISTA 2A, method : IEC-60068-2-32 Test:Ed
Test Ea : drop test

IP Rating

IP65 front
IPX1 rear

Ordering Information

HID-1337-N97-A1R
13.3" Alder Lake N Medical Multi-Touch Panel PC,Intel N97/8GB Memory/USBC/6USB/2LAN/COM/SPK/medical 24V adapter

E971XHI1337000R
WIFI Kit for HID-1337

ACC-ARM-D41R
VESA Stand 75/100 CA-MT01-07 White

Power Cord:

E1702031000R EU Power Cord

E1702031833R US Power Cord

E170203183CR JP Power Cord

E170P060380R UK Power Cord

E1702031831R AU Power Cord

E170P060391R CN Power Cord
